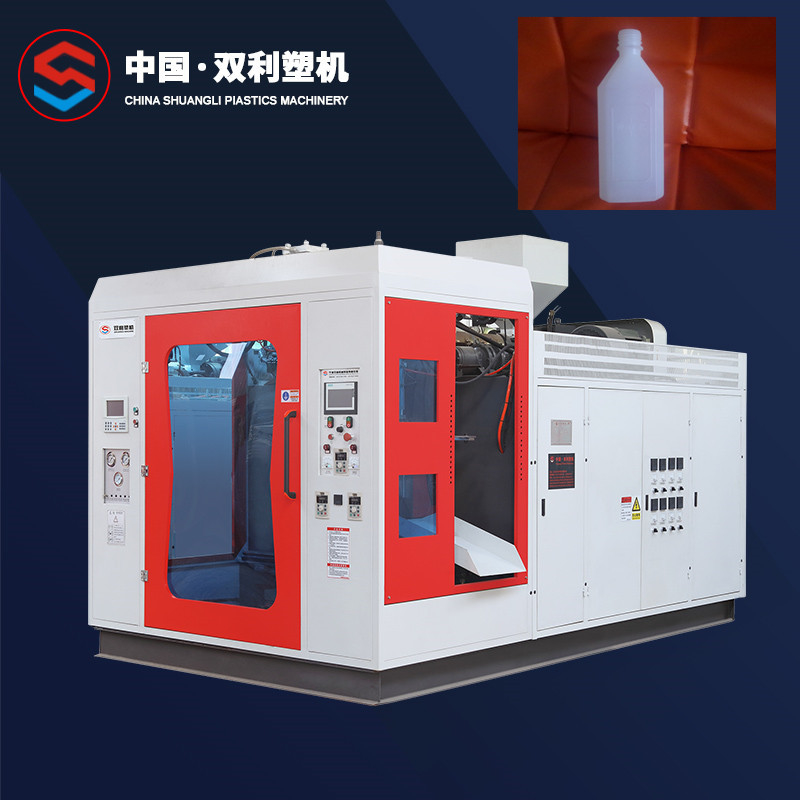

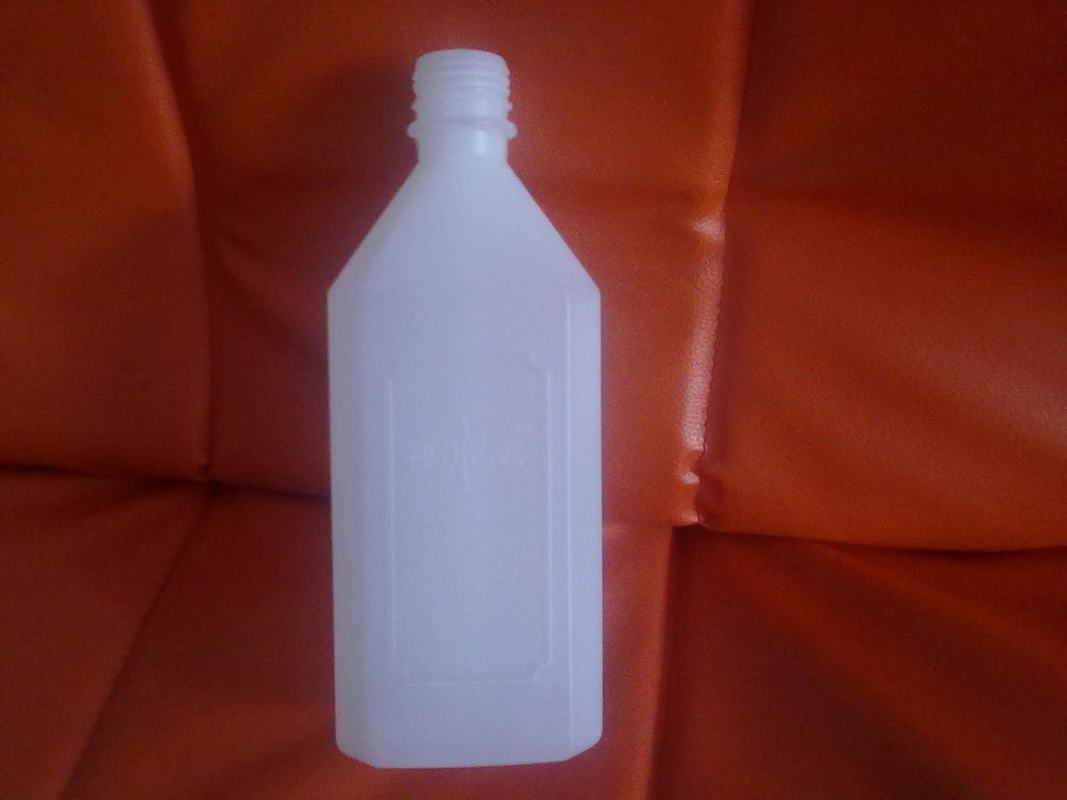

D Type High Speed Single Station Plastic Bottle Blow Molding Machine with IML for 4 Layer Plastic Pesticide Bottle
SLD series:
1: this machine is suitable for the production of 200ML 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.
2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.
3: die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment.Equipped with Pre-clip Preform Device and Pre-seal Cutter.
4: The machine clamping force has a solid structure, so that the mold is uniform, so that the production of finished products in perfection, and it will not cause the mold damage.
Finally, a series of optional accessories, to meet the needs of customers, such as product configuration manipulator, servo motor drive, layout reasonable and effective to reduce labor costs, automatic edging, die coextrusion mold labeling, etc., can meet a variety of customer requirements.
About after-sales service,every single machine is along with after service, our technical team to support all models support at 7/24 continuous service, we have a strong technical team for your service support.
SPECIFICATION | SLD-75 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 10 |
NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
OUPUT(DRY CYCLE) | PC/HR | 600 |
MACHINE DIMENSION (LxWxH ) | MM | 4300x2400x2200 |
TOTAL WEIGHT | TON | 7.5T |

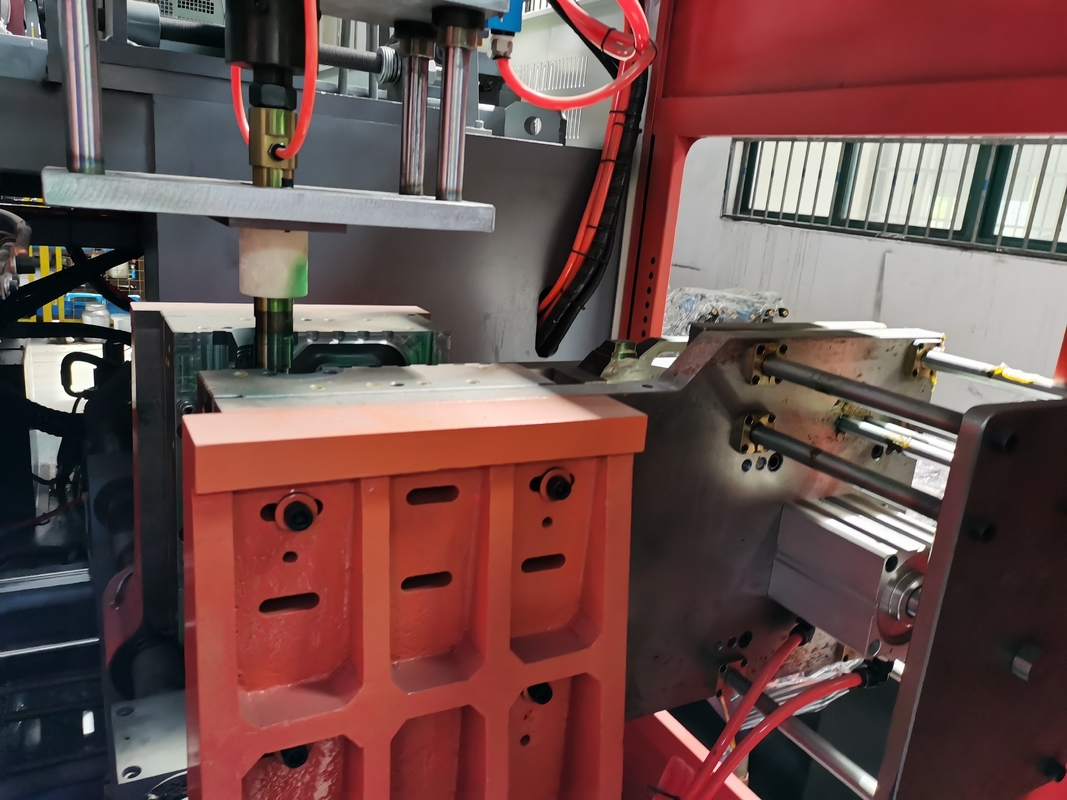

CLAMPING UNIT | ||
CLAMPING FORCE | KN | 65 |
PLATEN OPENING STROKE | MM | 220-530 |
PLATEN SIZE(WxH) | MM | 320x350 |
MAX MOULD SIZE(WxH) | MM | 400x350 |
MOLD THICKNESS | MM | 225-320 |

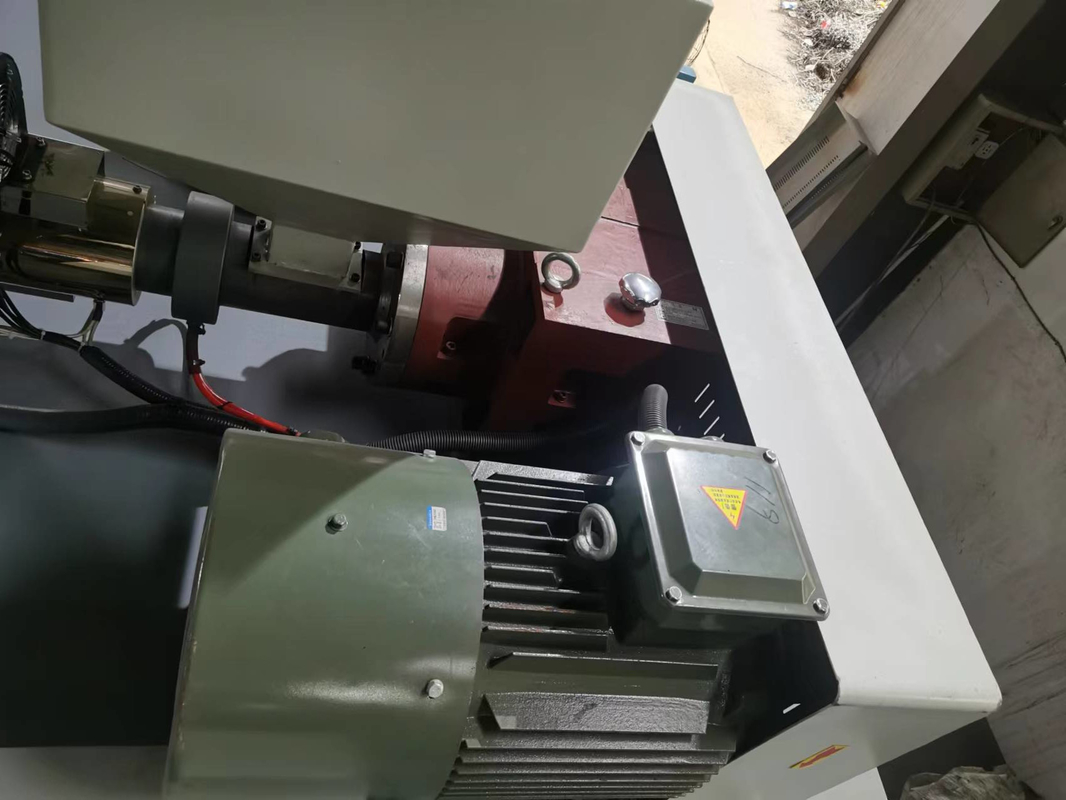

EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 75 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 95 |
BARREL HEATING POWER | KW | 20 |
NUMBER OF HEATING ZONE | ZONE | 4 |
EXTRUDER MOTOR RATED POWER | KW | 22 |
DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
POWER OF DIE HEATING | KW | 8 |
CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
CENTER DISTANCE OF THREE DIE | MM | 110 |
CENTER DISTANCE OF FOUR DIE | MM | 100 |
CENTER DISTANCE OF SIX DIE | MM | 80 |
MAX DIE-PIN DIAMETER | MM | 200 |
POWER | ||
MAX DRIVE POWER | KW | 24 |
TOTAL POWER | KW | 62 |
FAN POWER OF SCREW | KW | 3.6 |
AIR PRESSURE | MPA | 0.6 |
AIR CONSUMPTION | M3/MIN | 0.5 |
AVERAGE ENERGY CONSUMPTION | KW | 22 |
