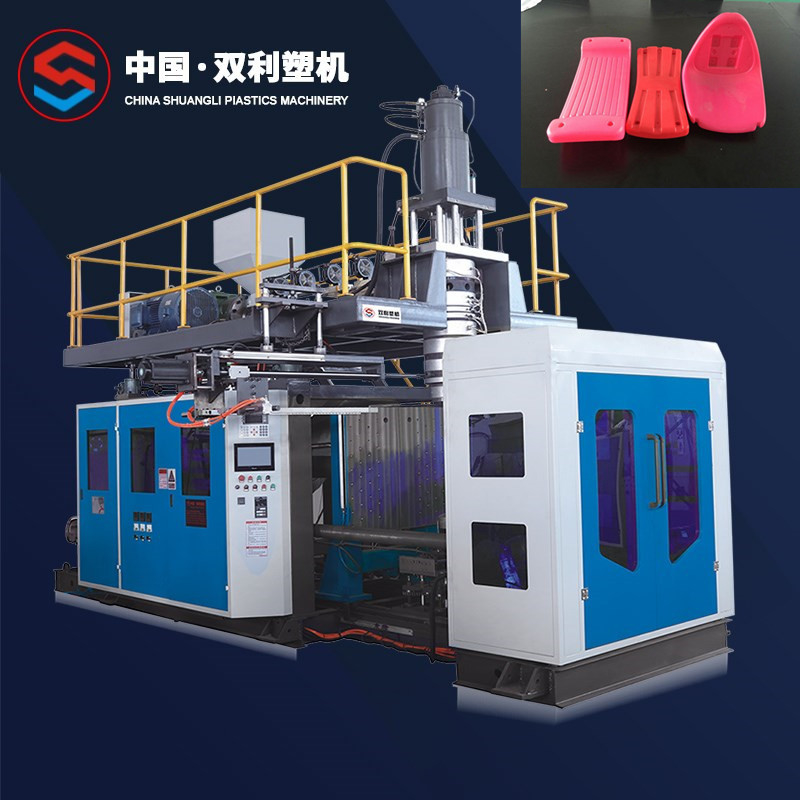

Accumulator Automatic PE Blow Molding Machine , Servo Fully Automatic Blowing Machine
-
High Light
shuangli 1 head automatic pet blow molding machines
,SLBC-80 1 head automatic pet blow molding machine
,1 head automatic pet blow molding machine SLBC-80
-
MaterialPE,PP,EVA,ABS
-
Max Capacity30L
-

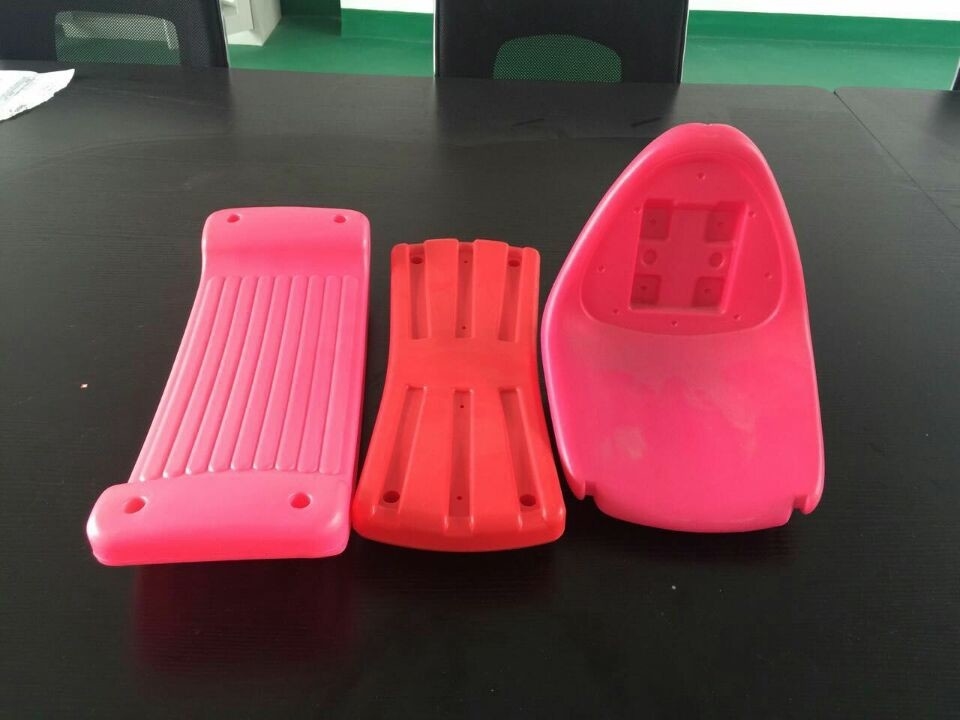

ProductPlastic Seat Part
-
StationSingle
-
TypeAccumulator Type
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-80
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
Accumulator Automatic PE Blow Molding Machine , Servo Fully Automatic Blowing Machine
Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Seat Part
SLBC series: (German model)
1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.
2: large opening stroke, central locking, locking force equilibrium, no deformation. optional with multi function under blowing mechanism, automatic machine to take the product of a variety of auxiliary device, realize the production process is highly automated.
3: high accuracy without the fusion line storage type die head, easy to change color, with servo walll thickness control system, improve product quality, reduce production costs. All parts of the machine is made by advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling.
| SPECIFICATION | SLBC-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 30 |
| OUPUT(DRY CYCLE) | PC/HR | 600 |
| MACHINE DIMENSION (LxWxH ) | MM | 5300x3000x3500 |
| TOTAL WEIGHT | TON | 11T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 200 |
| PLATEN OPENING STROKE | MM | 350-850 |
| PLATEN SIZE(WxH) | MM | 750x780 |
| MAX MOULD SIZE(WxH) | MM | 600x1000 |
| MOLD THICKNESS | MM | 360-500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 16 |
| NUMBER OF HEATING ZONE | ZONE | 4 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 4 |
| POWER OF DIE HEATING | KW | 15 |
| MAX DIE-PIN DIAMETER | MM | 250 |
| POWER | ||
| MAX DRIVE POWER | KW | 42 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 32 |
| ACCUMULATOR CAPACITY | L | 6 |
