Drying Plastic Auxiliary Machine

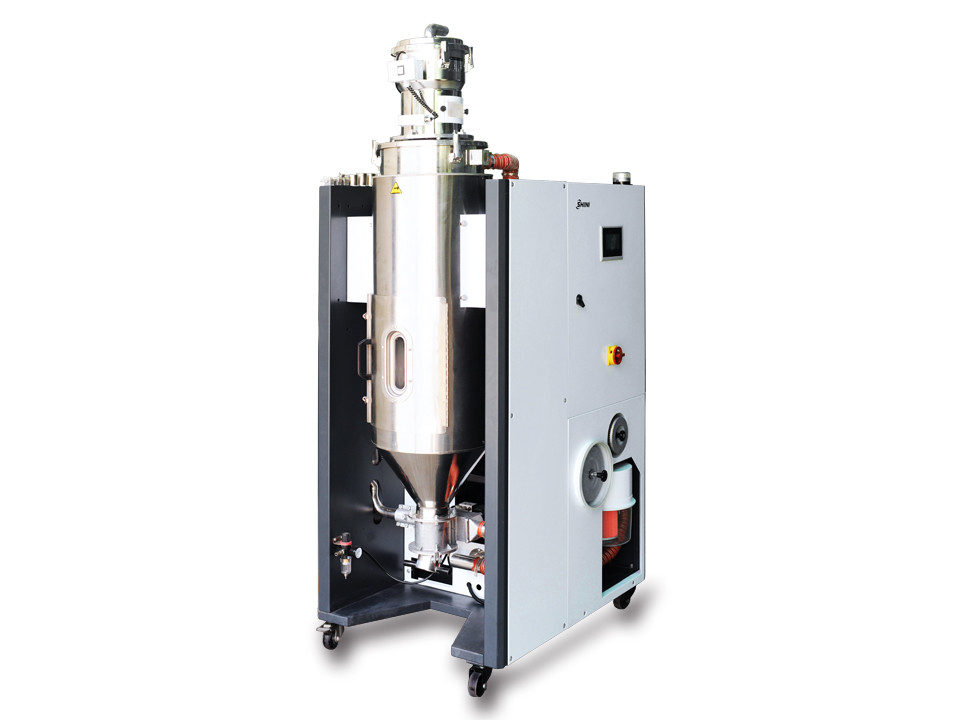

3-in-1 Dehumidifying Dryer for Blow Molding Machine

Category:Drying and Dehumidifying Series

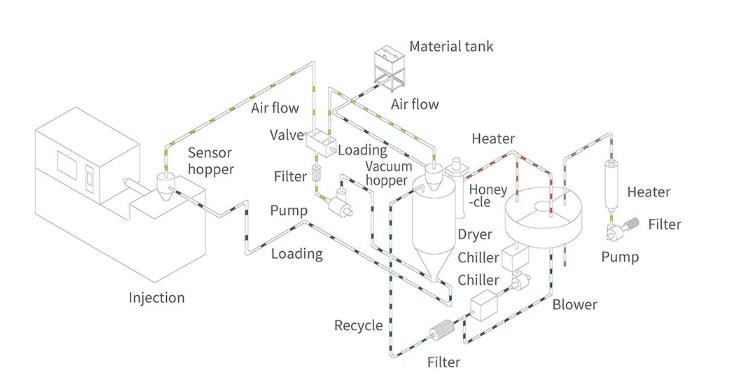

Integrated dehumidifying, drying and feeding into one unit.

Standard configuration is 1 to 2 feeding: 1 reed switch hopper and 1 photoelectric hopper

Optional configuration is 1 to 3 feeding: 1 reed switch hopper and 2 photoelectric hoppers

Up to 1 to 4 feeding: 1 reed switch hopper and 3 photoelectric hoppers

Controlled by microprocessor with P.I.D. temperature control.

Consists of LCD display and keyboard.

Double-condenser provides lower return air temperature and dew point below -40°C (-50°C is realizable with chilling water).

Easy to operate system and to understand warning messages.

Insulating drying hopper with European standard allows better heat preservation and drying efficiency.

Fully sealed feeding system to prevent dried material from contacting open air and being re-damped.

Discharge valve ensures no residual materials in hopper tubes.

Small footprint and moveable.

PLC control with enhanced configuration is optional for feeding up to 5 molding machines.

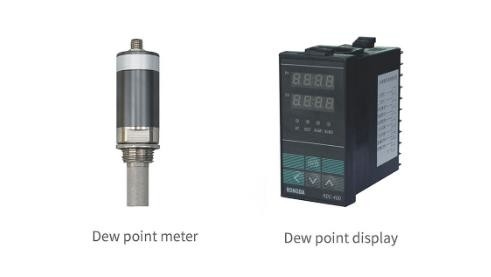

Dew-point monitor is optional.
