X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
-
High Light
x series Double Station Blow Molding Machine
,1 layer Double Station Blow Molding Machine
,plastic 2l blow molding machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity2L
-
StationDouble
-
Clamping TypeX Series
-
Layer1 Layer
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLX-55
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

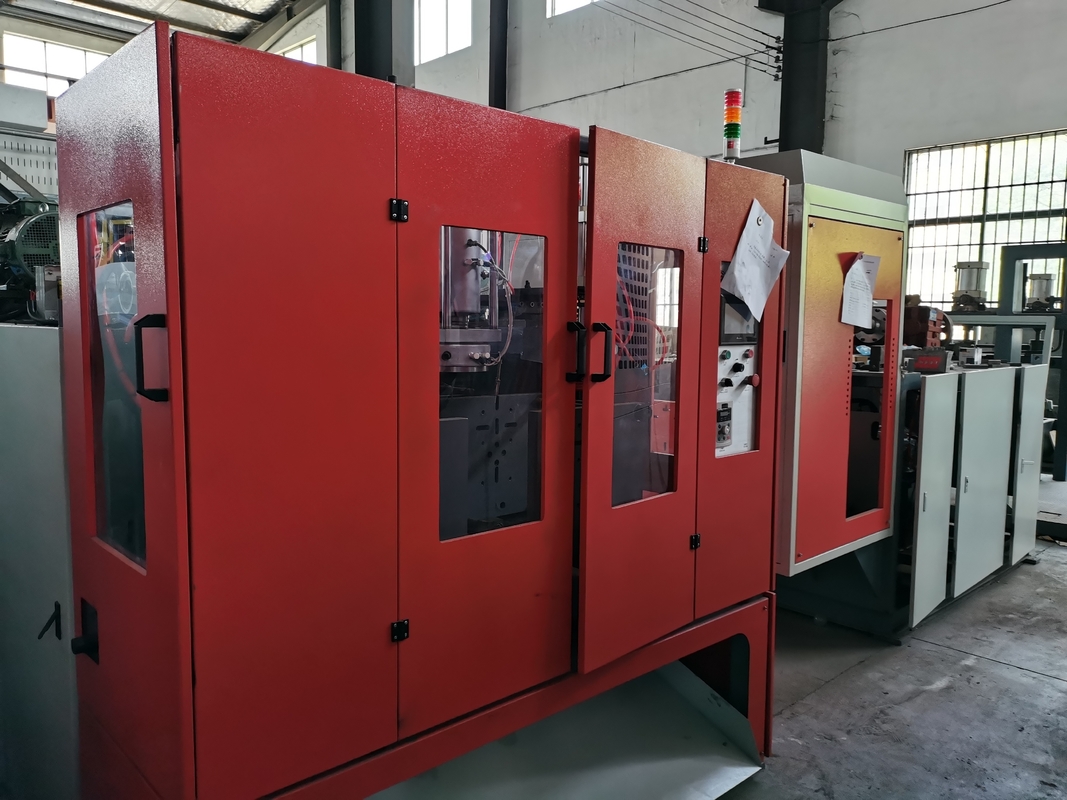

X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X series High Speed 1 Layer Double Station 1 Die head Blow Molding Machine for Plastic Appliance Accessories.
SLX series:
1.shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 5L and PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.
2: SLX shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 500ml. All parts of the machine is made by advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling.
✓Single/Double Station
✓Single/Double/Triple/Quadruple Head
✓Production Volume:2ml~1L
✓Multi layers: Co-Extrusion 1 Layers
✓Multi cavities: 1~4 cavities
✓Designed for the PE/PP/PETG/PVC/Co-Extrusion material
| SPECIFICATION | SLX-55 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 2 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3200x1600x2200 |
| TOTAL WEIGHT | TON | 3T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 40 |
| PLATEN OPENING STROKE | MM | 120-420 |
| PLATEN SIZE(WxH) | MM | 360X300 |
| MAX MOULD SIZE(WxH) | MM | 240x400 |
| MOLD THICKNESS | MM | 105-200 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 55 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 45 |
| BARREL HEATING POWER | KW | 12 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 7.5(11) |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 1320 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 150 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 22 |
| FAN POWER OF SCREW | KW | 0.42 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 8 |
Our products are sold all over the world, you can rest assured.
