3 Head Extrusion Blow Molding Machine

3 Head Extrusion Blow Molding Machine

Products - Extrusion Blow Molding Machine
  • High Light

    SHUANGLI 3 head abs blow molding machines

    ,

    SHUANGLI 3 head abs blow molding machine

    ,

    SLBK-55 3 head abs blow molding machine

  • Applicable Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Product

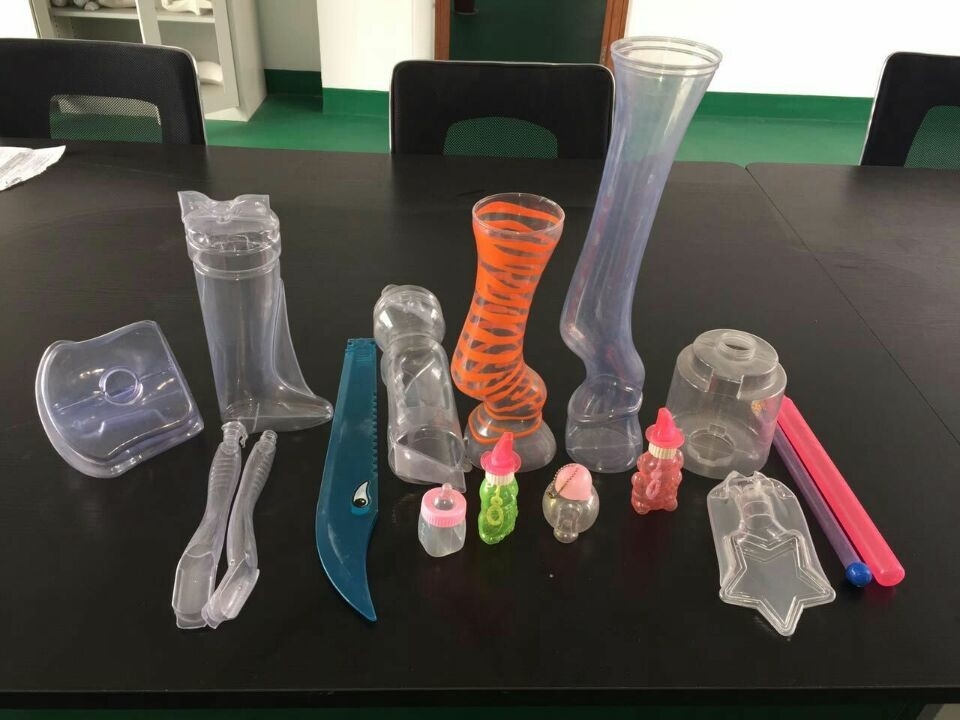

    Plastic Toys
  • Station
    Double
  • Die Head
    3
  • Speed
    High Speed
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBK-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

3 Head Extrusion Blow Molding Machine

  • 3 Head Extrusion Blow Molding Machine
  • 3 Head Extrusion Blow Molding Machine
  • 3 Head Extrusion Blow Molding Machine
  • 3 Head Extrusion Blow Molding Machine
Get Price Contact Now

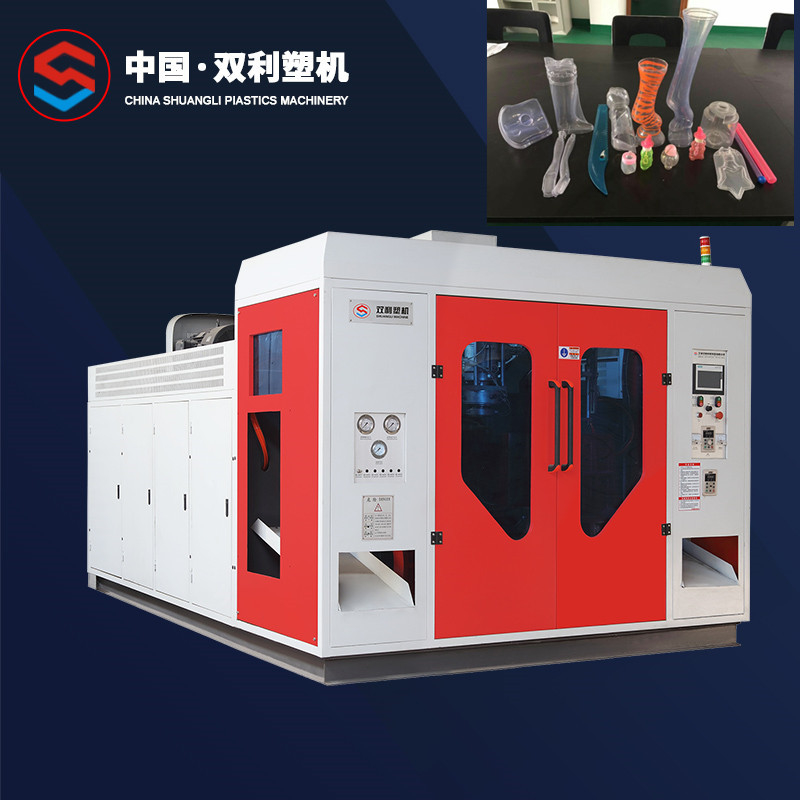

K Series Tie Bar 3 Die Head High Speed Blow Molding Machine For Plastic Toys





1: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.



2: plasticizing system: frequency conversion motor Hardened reducer with high quality nitride barrel screw, variable frequency speed control, energy efficient and stable yield.

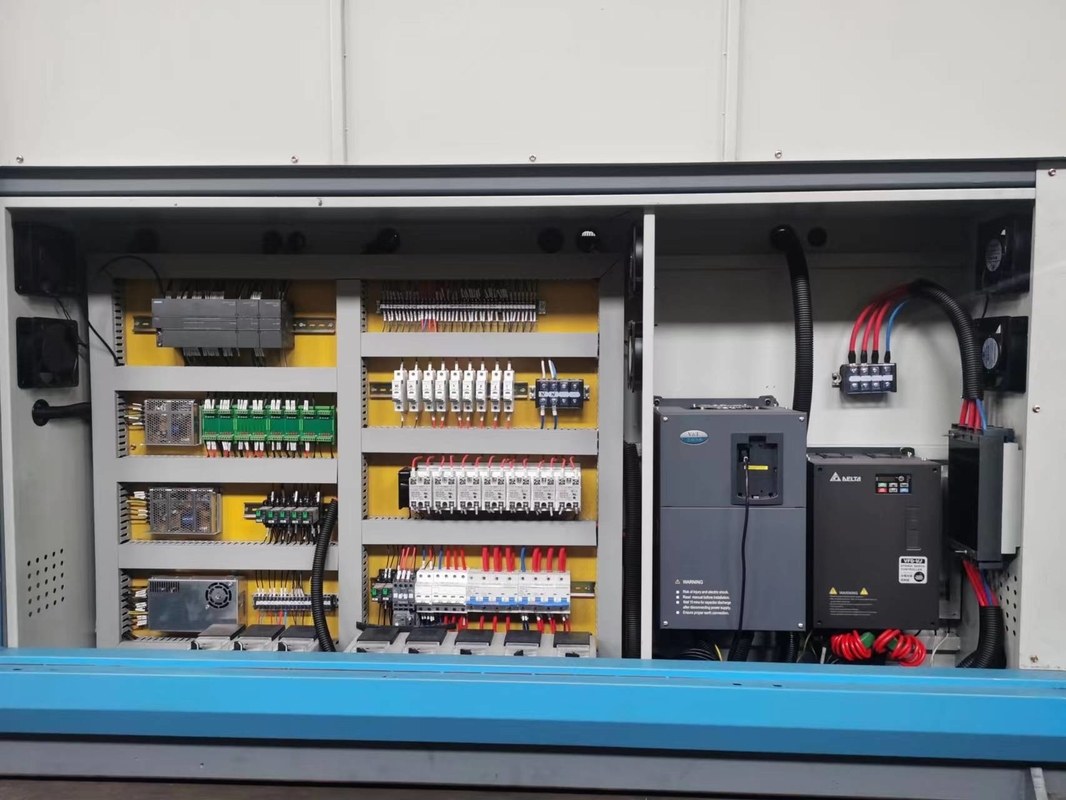

3: electronic control system: the use of PLC man- machine interface, all parameters set, modify, retrieval can be seen as the operation, the system runs stable, accurate positioningIndeed. shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 500ml. All parts of the machine is made by advanced numerical control equipment with high precision.



4: application areas: food, medicine, petroleum, chemical, chemical, automotive, tools, toys and other industries.



5: can be equipped with automatic overflow device: supporting cutting device and pull the end device, automatic operation, save labor.



6.Please use the manual switches to trial the action of each part of the blow molding machine one by one to determine the pressure and speed of each action and the transition position of the linear position sensor to obtain the best effect (the majority of the data and position have been adjusted before delivering. Please adjust with discretion).







SPECIFICATION SLBK-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3400x2200x2200
TOTAL WEIGHT TON 5T

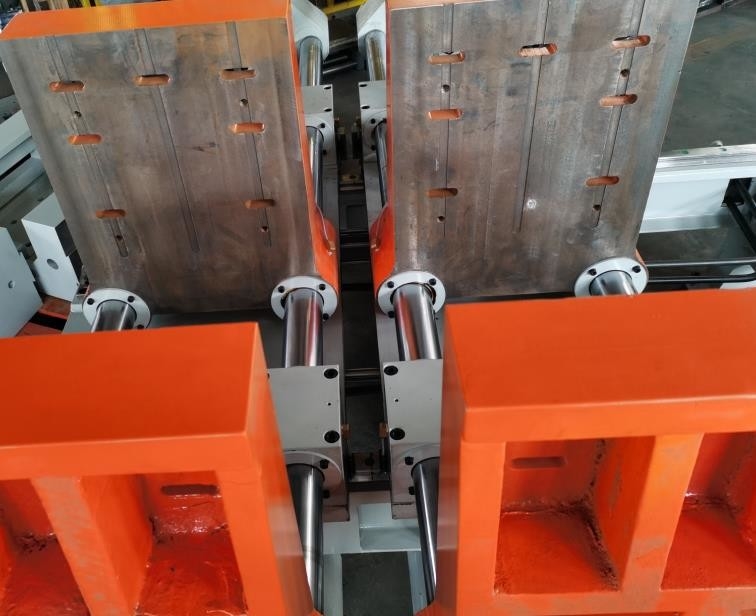

CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-400
PLATEN SIZE(WxH) MM 260X330
MAX MOULD SIZE(WxH) MM 300x330
MOLD THICKNESS MM 125-220
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 32
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 13
