Petroleum Auto Parts HDPE Blow Moulding Machine CPM Extrusion
-
High Light
petroleum hdpe blow moulding machine
,auto parts HDPE blow moulding machine
,CPM extrusion blow moulding machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity2L
-
StationDouble
-

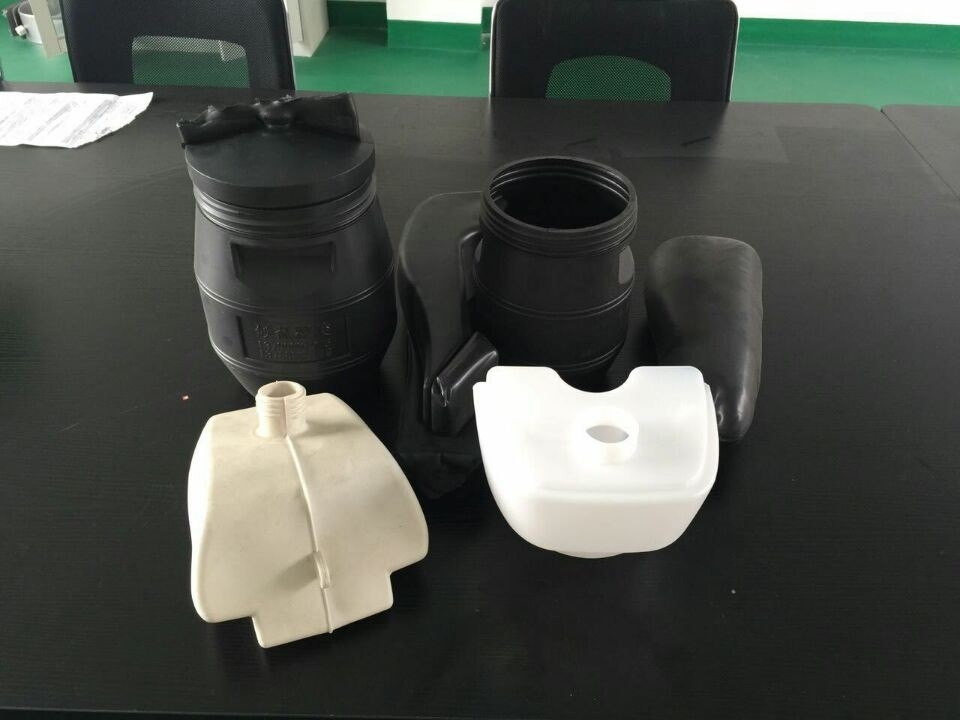

ProductPlastic Auto Parts
-
SpeedHigh
-
TypeK Series Tie Bar
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBK-55
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

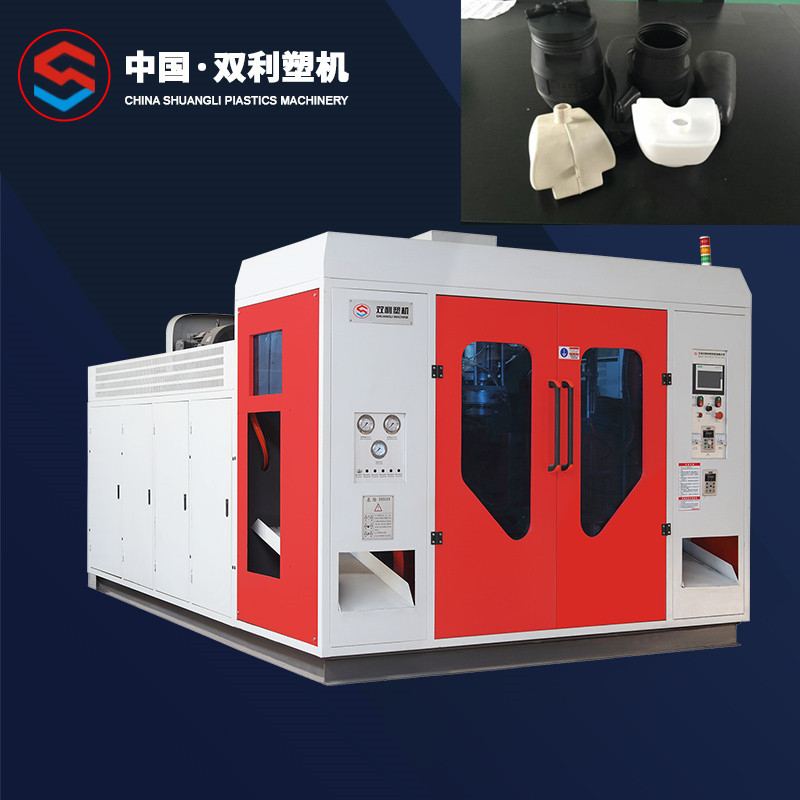

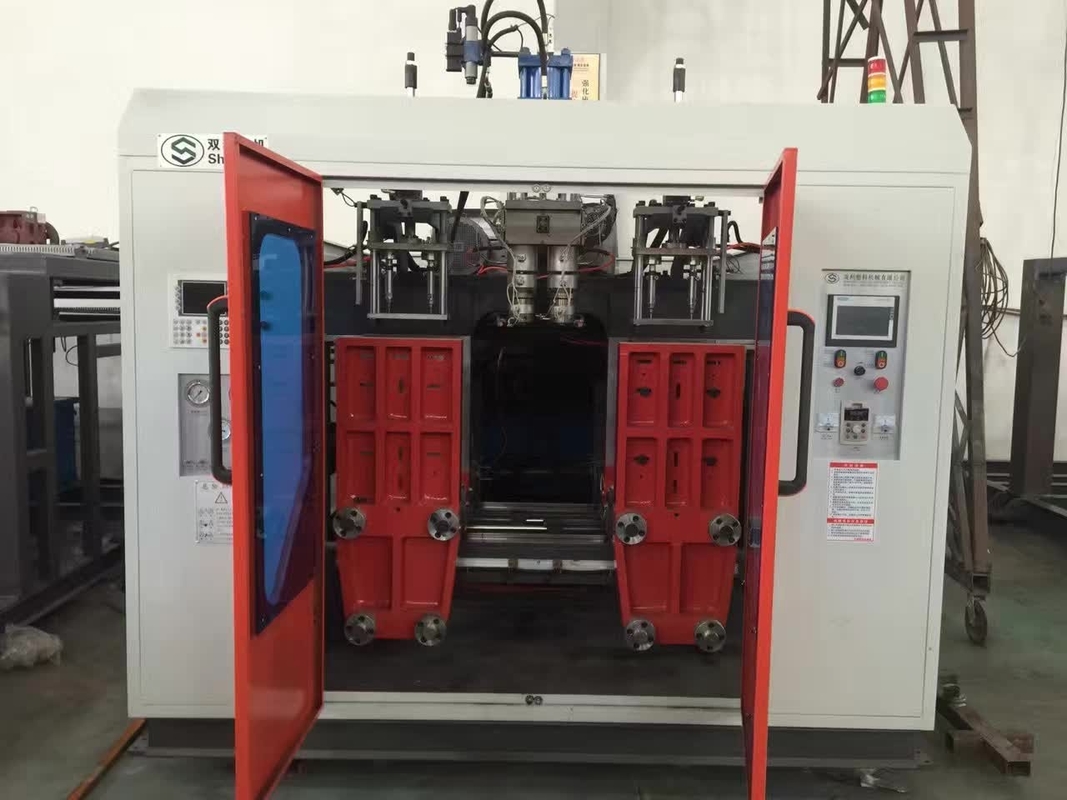

Petroleum Auto Parts HDPE Blow Moulding Machine CPM Extrusion
Automatic Tie Bar High Speed 2 Die Head Blow Molding Machine For Plastic Auto Parts
1: All parts of the machine is made by advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling.
2: plasticizing system: frequency conversion motor Hardened reducer with high quality nitride barrel screw, variable frequency speed control, energy efficient and stable yield.
3: electronic control system: the use of PLC man- machine interface, all parameters set, modify, retrieval can be seen as the operation, the system runs stable, accurate positioningIndeed.
4: application areas: food, medicine, petroleum, chemical, chemical, automotive, tools, toys and other industries.
5: can be equipped with automatic overflow device: supporting cutting device and pull the end device, automatic operation, save labor.
6. Parison injecting: Single hydraulic cylinder without non-synchronization
Mould changing: Extruding cover can be adjusted up and down, diehead can be moved by hydraulic, and mould changing is very easy
Low consumption: power is 26.6kw/h at the product speed of 70%
| SPECIFICATION | SLBK-55 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 2 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3400x2200x2200 |
| TOTAL WEIGHT | TON | 5T |

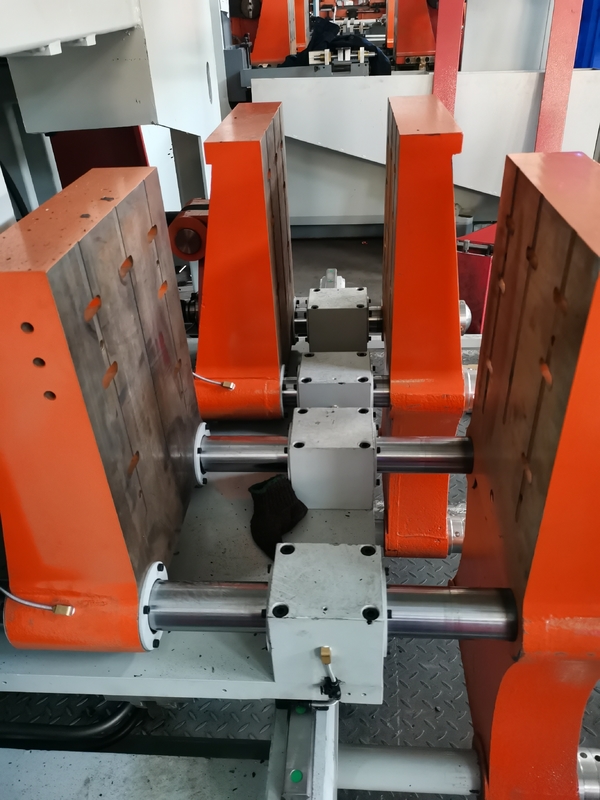

| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 40 |
| PLATEN OPENING STROKE | MM | 120-400 |
| PLATEN SIZE(WxH) | MM | 260X330 |
| MAX MOULD SIZE(WxH) | MM | 300x330 |
| MOLD THICKNESS | MM | 125-220 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 55 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 45 |
| BARREL HEATING POWER | KW | 12 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 11 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 150 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 32 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 13 |
Our products are sold all over the world, you can rest assured.
