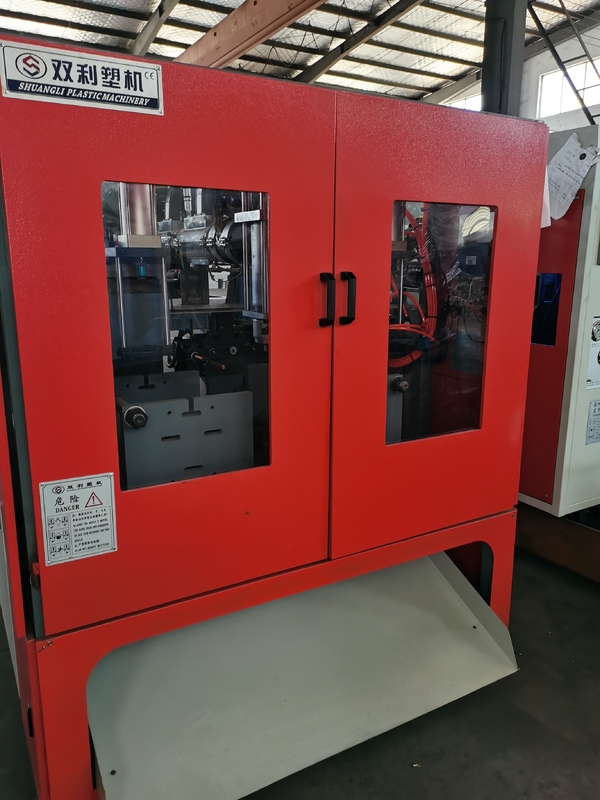

3 Heads Automatic Bottle Blow Moulding Machine

Get Price Contact Now

X series High Speed 2 Layers Double Station 3 Die head Blow Molding Machine for Plastic Water Bottle

SLX series:

1.This machine is suitable for bottles, detergent bottles, oil pot, plastic toys, cosmetics bottles, beverage bottles, chemical Hardware

etc..

2: Machine installation

Use the lifting ring at the four corners of the rack to lift the machine to the working position. It is recommended to leave no less than 1 meter

around the machine. Adjust the level of the machine by adjusting the adjustment bolts of the M20 on the machine foot plate. After the machine is

leveled, use an iron plate to secure the machine's foot plate to the block and then tighten the anchor bolts.

SPECIFICATION		SLX-55
MATERIAL		PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY	L	2
NUMBER OF DIE HEAD	SET	1,2,3,4,6
OUPUT(DRY CYCLE)	PC/HR	1000x2
MACHINE DIMENSION (LxWxH )	MM	3200x1600x2200
TOTAL WEIGHT	TON	3T

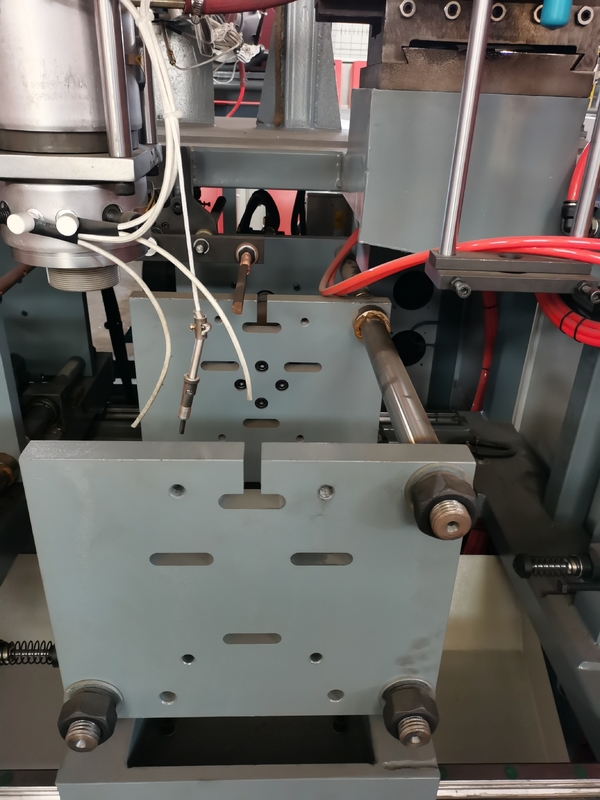

CLAMPING UNIT
CLAMPING FORCE	KN	40
PLATEN OPENING STROKE	MM	120-420
PLATEN SIZE(WxH)	MM	360X300
MAX MOULD SIZE(WxH)	MM	240x400
MOLD THICKNESS	MM	105-200
EXTRUDER UNIT
SCREW DIAMETER	MM	55
SCREW L/D RATIO	L/D	25
MELTING CAPACITY	KG/HR	45
BARREL HEATING POWER	KW	12
NUMBER OF HEATING ZONE	ZONE	3
EXTRUDER MOTOR RATED POWER	KW	7.5(11)

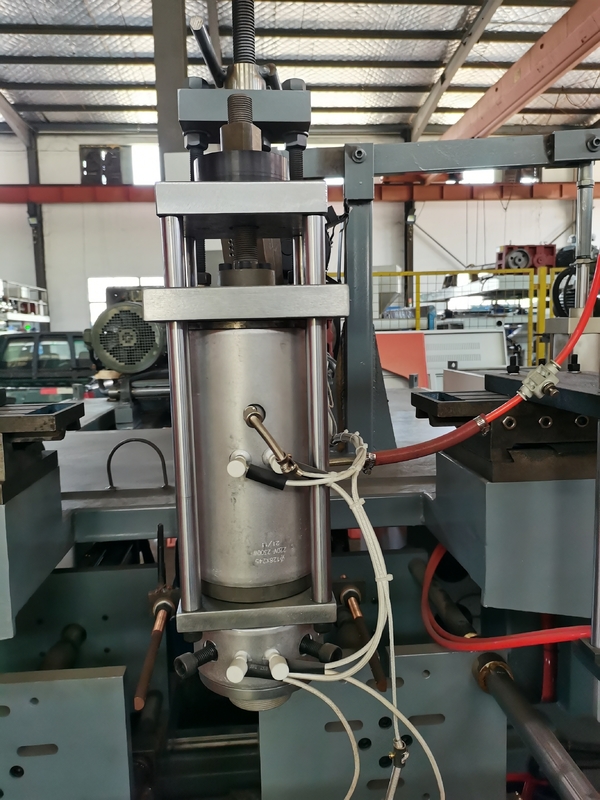

DIE HEAD
NUMBER OF DIE HEATING ZONE	ZONE	2-5
POWER OF DIE HEATING	KW	6
CENTER DISTANCE OF DOUBLE DIE	MM	1320
CENTER DISTANCE OF THREE DIE	MM	80
CENTER DISTANCE OF FOUR DIE	MM	60
CENTER DISTANCE OF SIX DIE	MM	60
MAX DIE-PIN DIAMETER	MM	150
POWER
MAX DRIVE POWER	KW	18
TOTAL POWER	KW	22
FAN POWER OF SCREW	KW	0.42
AIR PRESSURE	MPA	0.6
AIR CONSUMPTION	M3/MIN	0.4
AVERAGE ENERGY CONSUMPTION	KW	8
