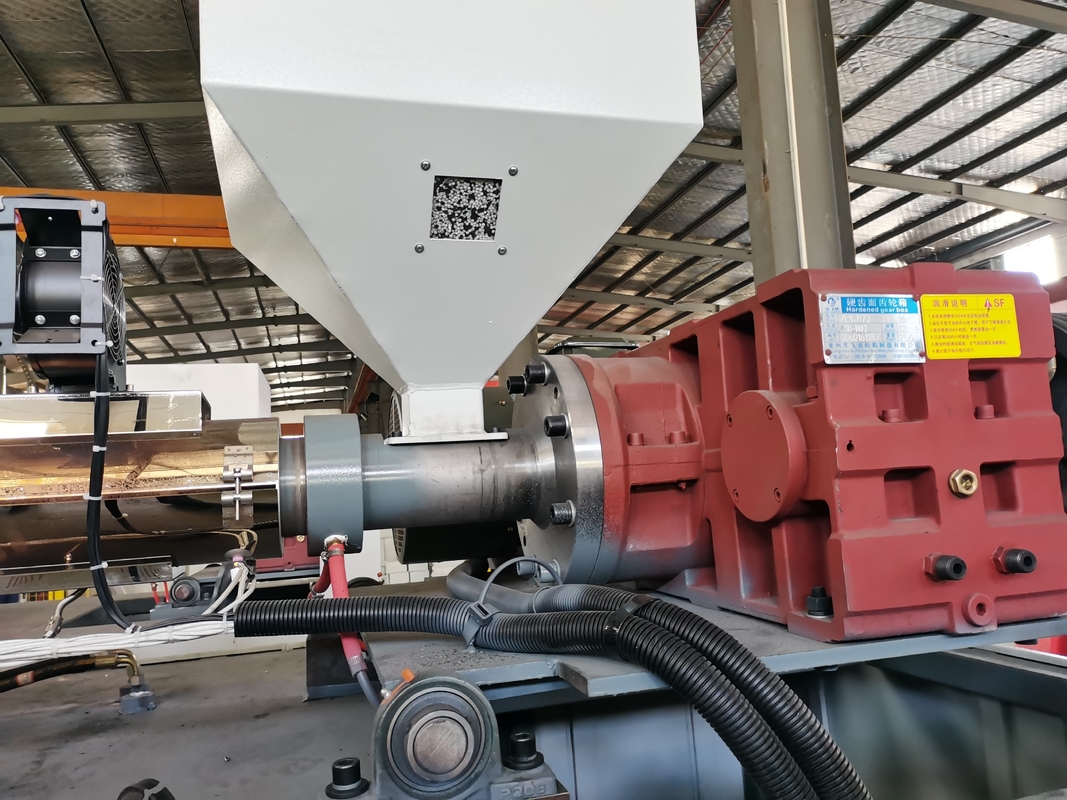

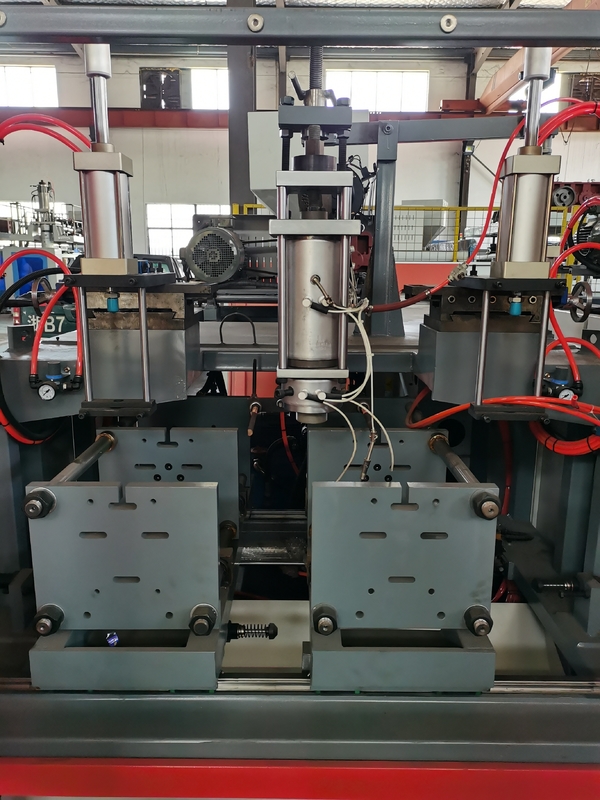

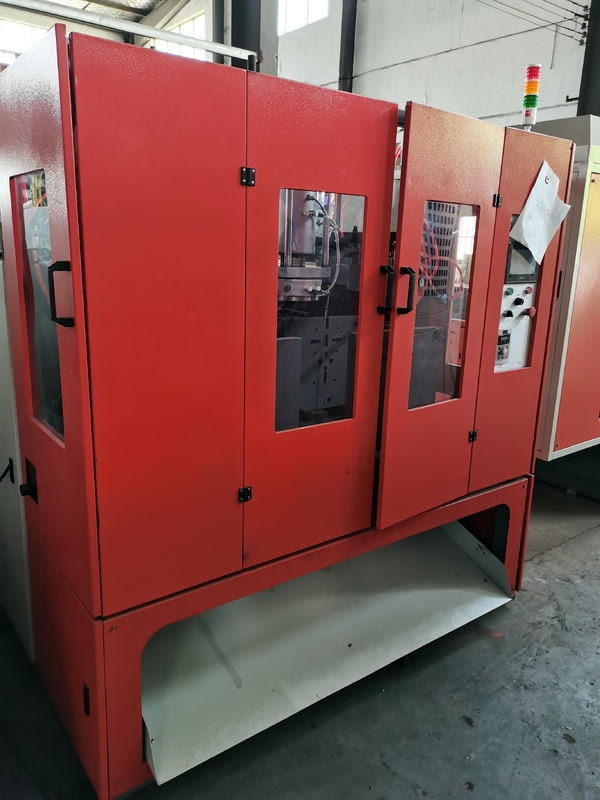

2 Layer Double Station Blow Molding Machine

X series High Speed 2 Layer Double Station 2 Die head Blow Molding Machine for Plastic Toys

SLX series:

1.shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 5L and PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.

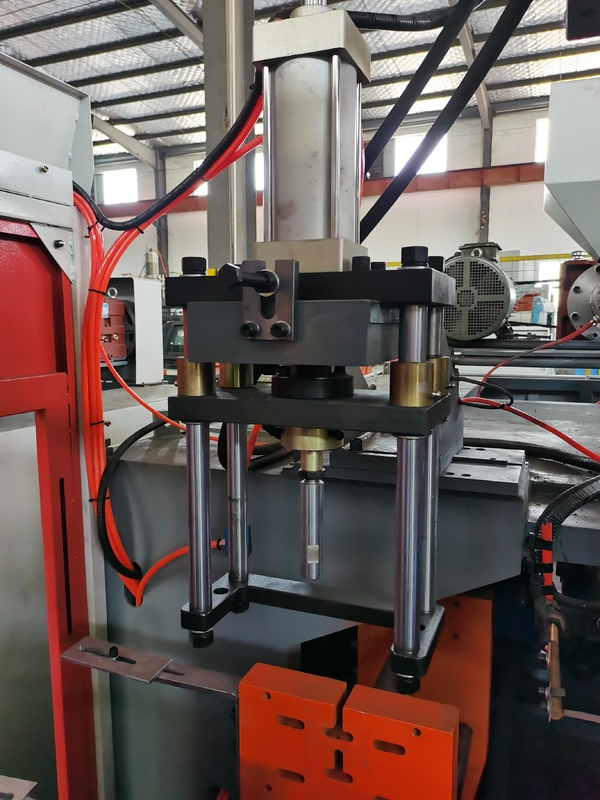

2: Clamping pressure: When manual or fully automatic, the pressure used to start the mold clamping is also the pressure used to lift the die. When there is impact sound during mold clamping, check whether the travel switch at the end of the mold clamping is touched, and check if the mold clamp slow speed switch is touched late. Generally, when clamping the mold, when the two planes of the mold are left 10~20mm, the mold clamping slow stroke switch will be encountered. When the two planes of the mold are close to close, the mold end stroke switch will be encountered. Then, the adjustment screw on the mold clamping slow one-way throttle valve is throttled and throttled. This adjustment is slow and repeated. The impact of the lifting die and the lowering die is made by the two adjusting screws on the superimposed one-way throttle valve under the solenoid valve for clockwise rotation and throttling, and it is adjusted to the upper and lower of the lifting die without impact, and it is stable. The general pressure analog quantity is set between 400 and 550.
