1L Double Station Automatic PE Bottle Blow Molding Machine Cosmetics

HIGH SPEED 1 LAYER DOUBLE STATION 3 DIE HEAD BLOW MOLDING MACHINE FOR PLASTIC WATER BOTTLE SLBU-65

SLBU series:

1: this machine is suitable for the production of Max 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.Servo Hydraulic System includes Servo Head Lifting, Servo Die Head,

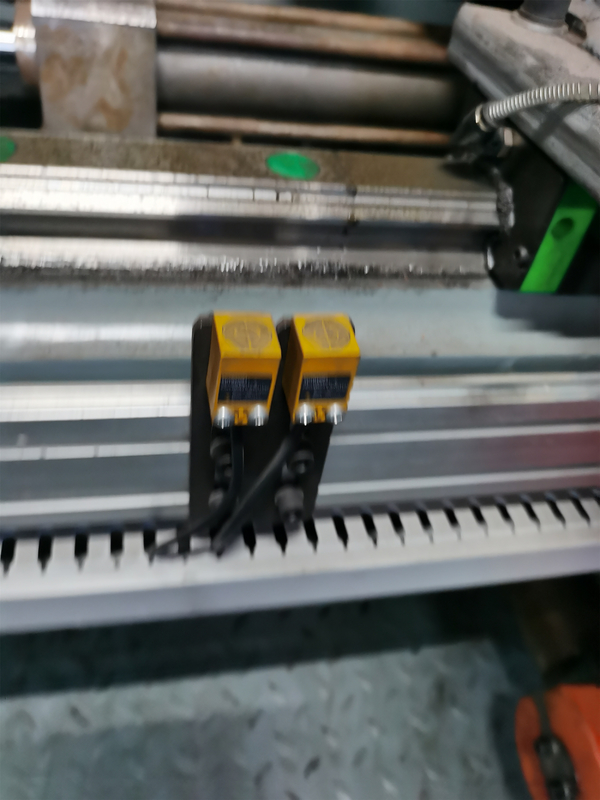

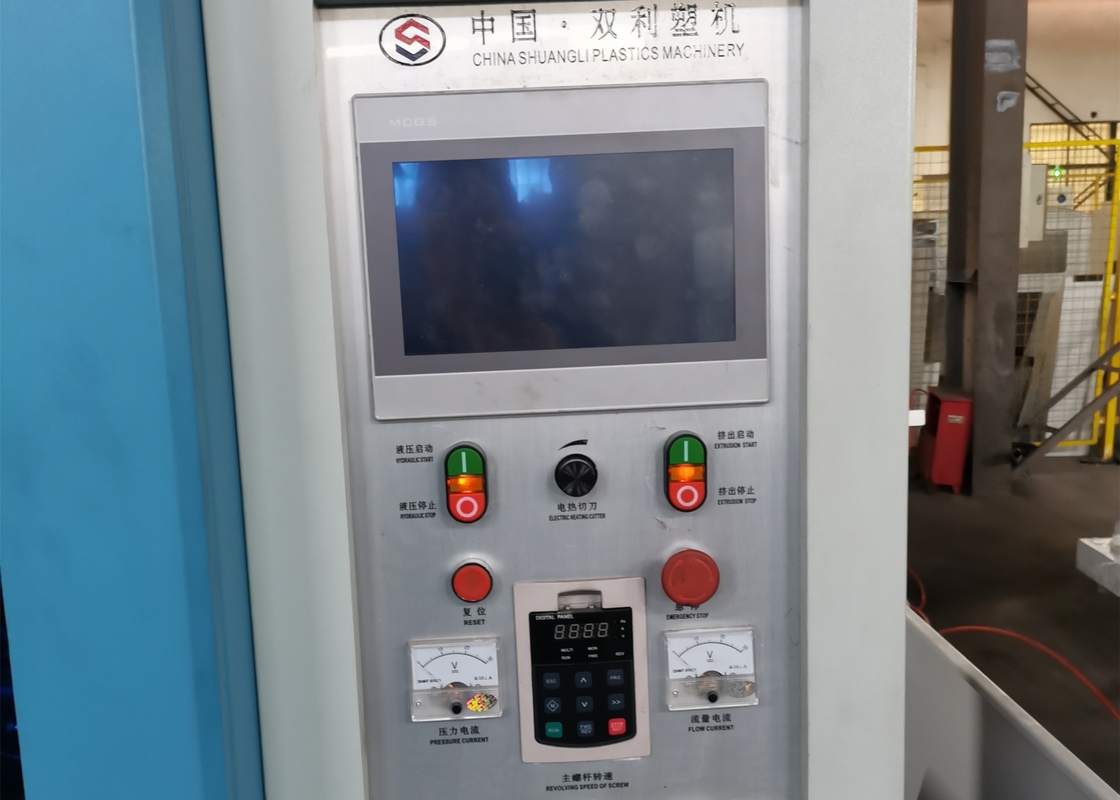

2:   Mold opening: Click the “ON” button, and the mold opening and closing mechanism will open the mold. When it touches the end of the mold opening stroke switch, it will work and the mold opening action will stop.

Mold assembly: Click the “close” button, and the mold opening and closing mechanism will have the mold clamping action. When it touches the end point switch of the mold clamping, it will work and the mold clamping action will stop.

On the needle: Click the “Up” button, the needle will move up. When it touches the end point of the needle, it will work, and the needle will stop.

Under the needle: Click the “Down” button, the needle will move down until the cylinder is in the end, and the action stops.

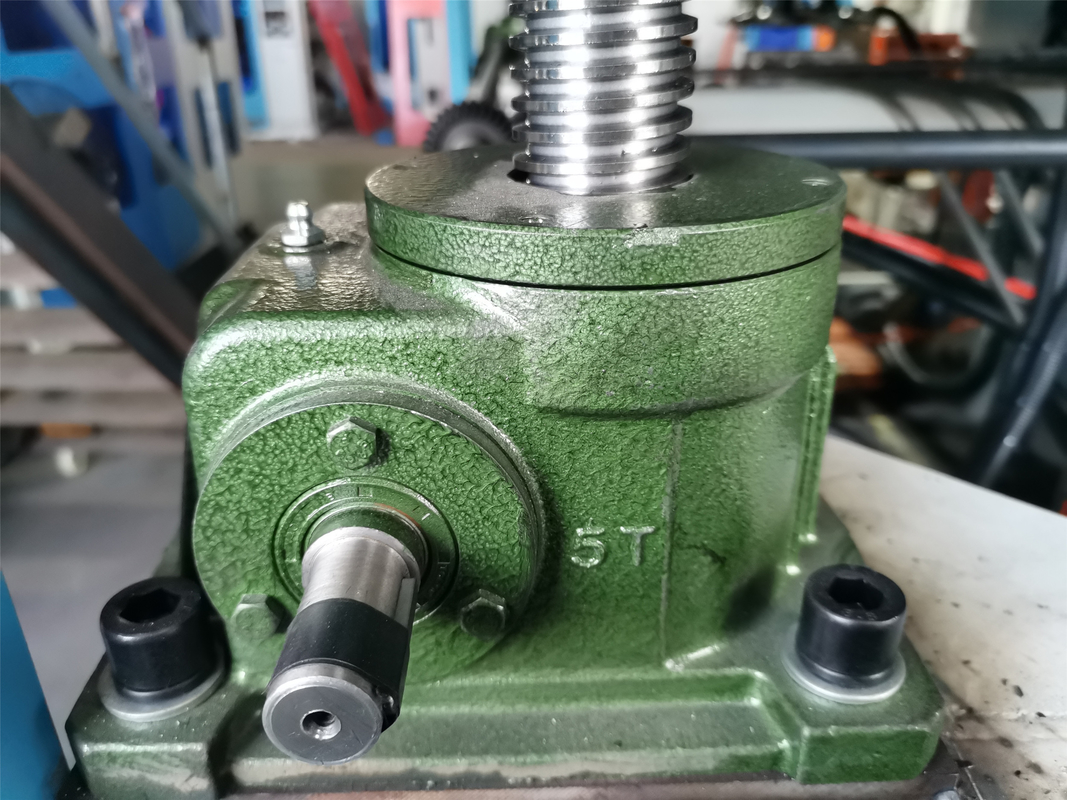

Die lift: Click the "L" button and the die will lift up until the cylinder is in the end and the action stops.

Die drop: Click the “Down” button and the die will lower downward until the cylinder is in the end, and the action stops.

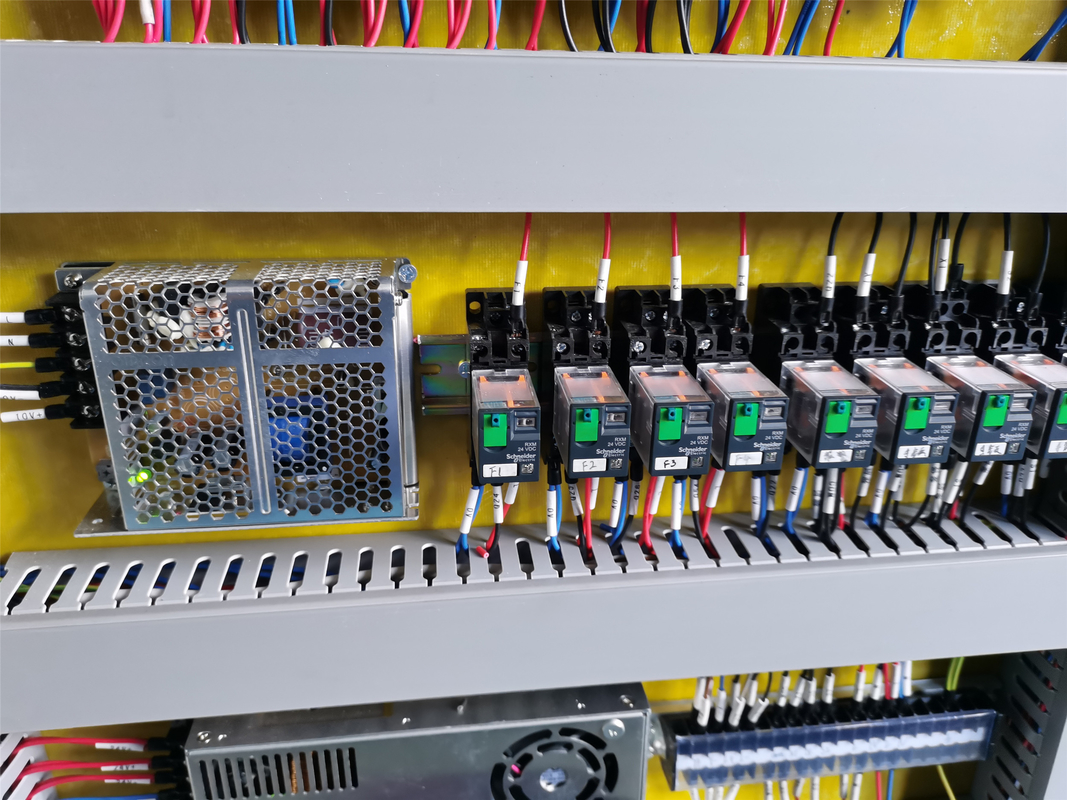

Cutter: Click the “Cutter” button, the cutter will send a command to make the PLC internal relay close, and then send it to the solenoid of the pneumatic solenoid valve to make the solenoid valve work, and send the air pressure to the cylinder end to push The piston performs the cutter action. When you click the "Cutter" button again, the cutter action stops.

Going to the flash: It works like the cutter.
