Ningbo Shuangde Tianli Machinery Manufacturing Co., Ltd. 86--13566335186
High Speed 1 Layer Automatic Blow Molding Machine , Lubricant Bottle Making Machine

High Speed 1 Layer Automatic Blow Molding Machine , Lubricant Bottle Making Machine

  • High Light

    high speed automatic blow molding machine

    ,

    1 Layer automatic blow molding machine

    ,

    lubricant bottle making machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    2L Plastic Lubricating Oil Bottle
  • Clamping Type
    Toggle Type -U
  • Layer
    2 Layers
  • Station
    Double Or Single
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

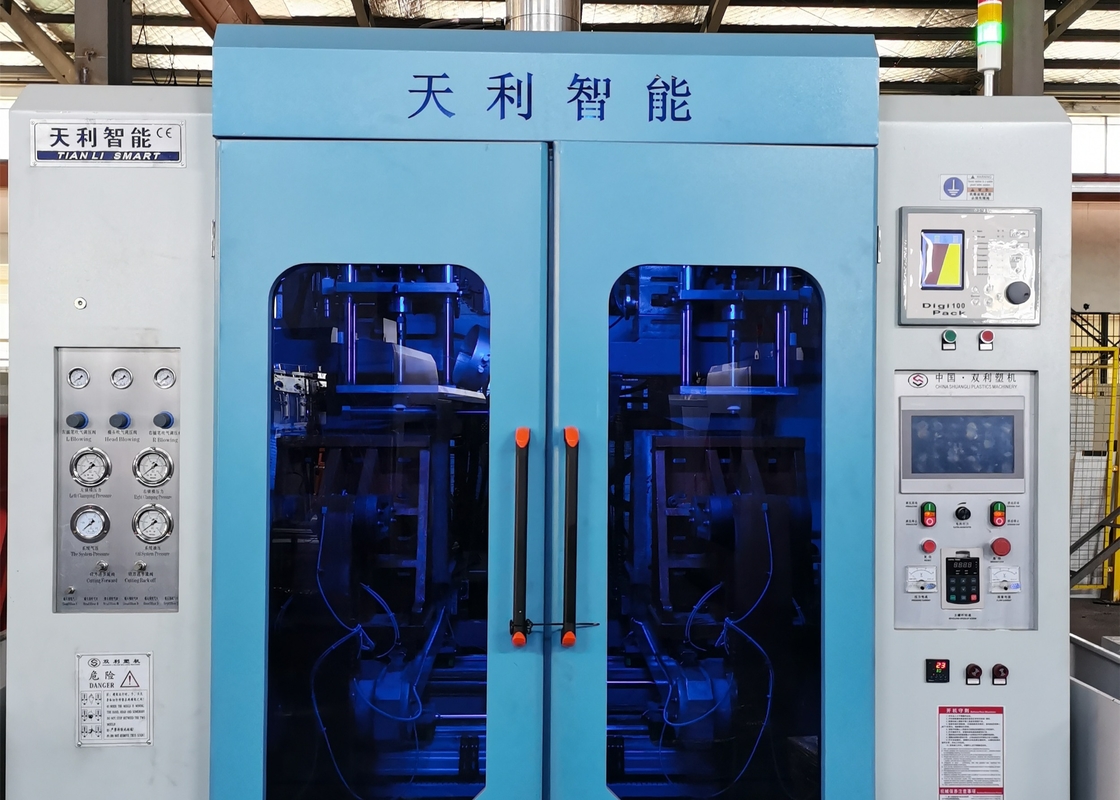

High Speed 1 Layer Automatic Blow Molding Machine , Lubricant Bottle Making Machine

High Speed 2 Layers Double Station 2 Die head Blow Molding Machine for 2L Plastic Lubricating Oil Bottle with View Strip Line



SLBU series:





1: this machine is suitable for the production of Max.10L plastic hollow products,With toggle balance clamping system for high accuracy and excellent clamping force.





2: System time correction screen:



Timekeeping: Click the “Time Hold” button to modify the time, date, and week displayed on the display, and click the year, month, day, hour, minute, second, and week values to modify the time, date, and week. .

Time control: Complete the final setting of the time, date, and day of the week displayed on the display.

Back: Click the "Back" button to enter the system tool screen.





SPECIFICATION SLBU-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T

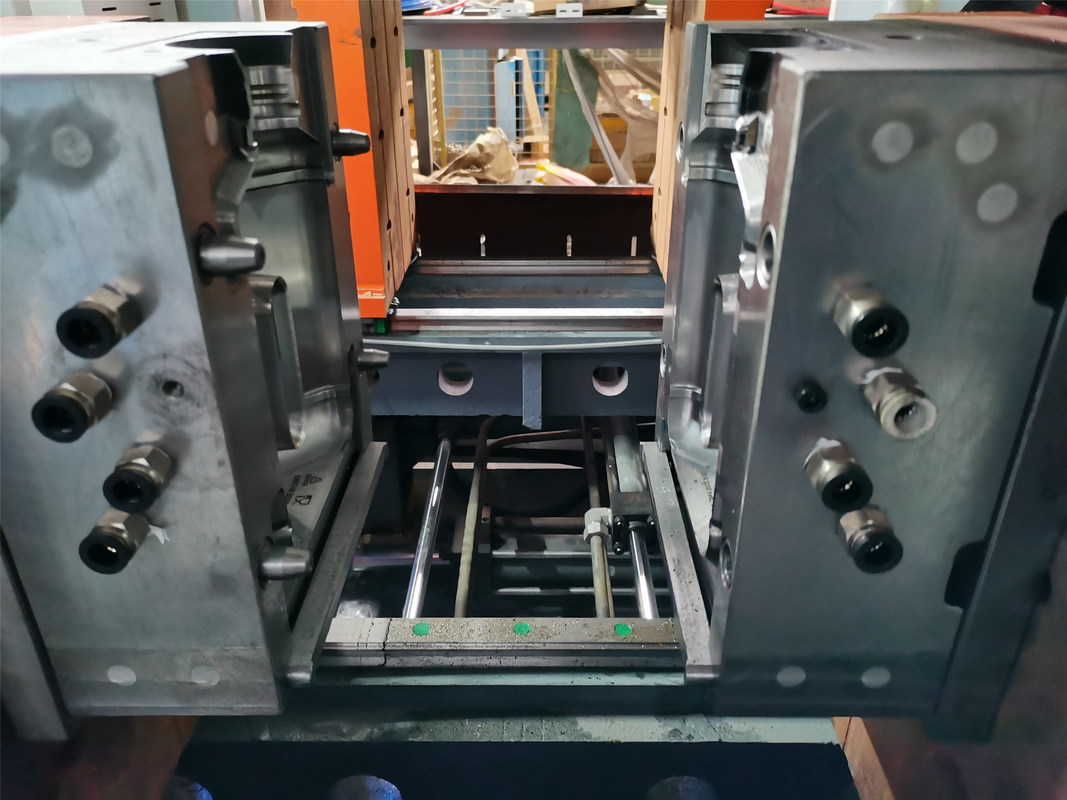

CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
