6 Head Double Station Blow Molding Machine PP Lubricant PE Bottle Blower Machine
-
High Light
6 head Double Station Blow Molding Machine
,PP Double Station Blow Molding Machine
,lubricant PET bottle blower machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity5L
-
ProductPlastic Lubricating Oil Bottle
-
Clamping TypeToggle Type -U
-
Layer1 Layer
-
SpeedHigh Speed
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBU-65
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
6 Head Double Station Blow Molding Machine PP Lubricant PE Bottle Blower Machine
High Speed 1 Layer Double Station 1 Die head Blow Molding Machine for 5L Plastic Lubricating Oil Bottle with View Strip Line
SLBU series:

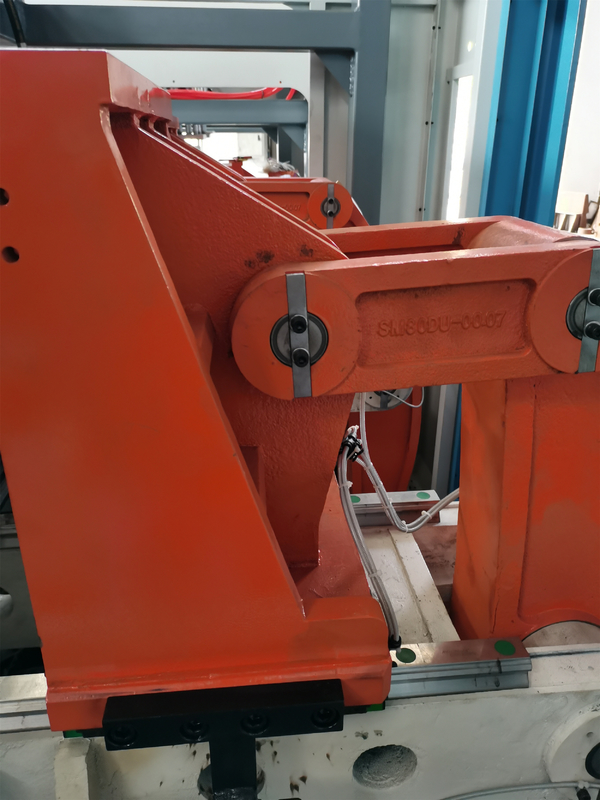

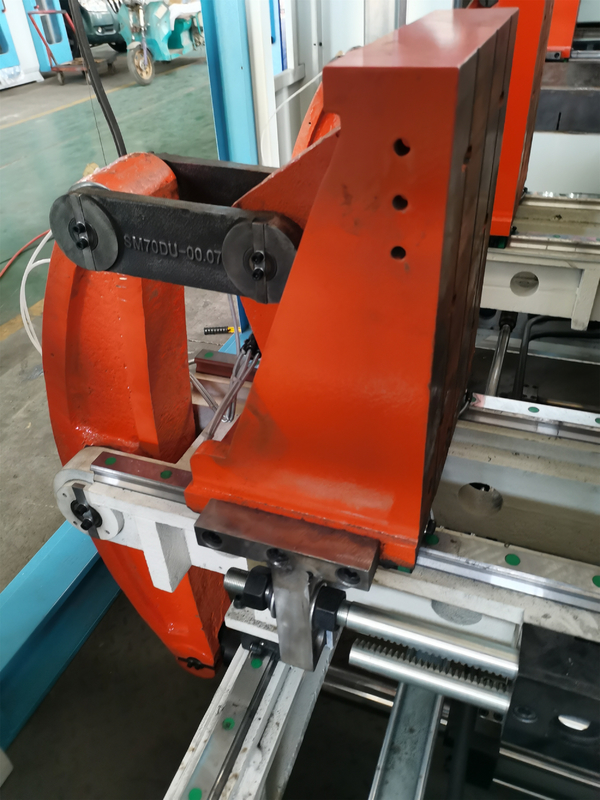

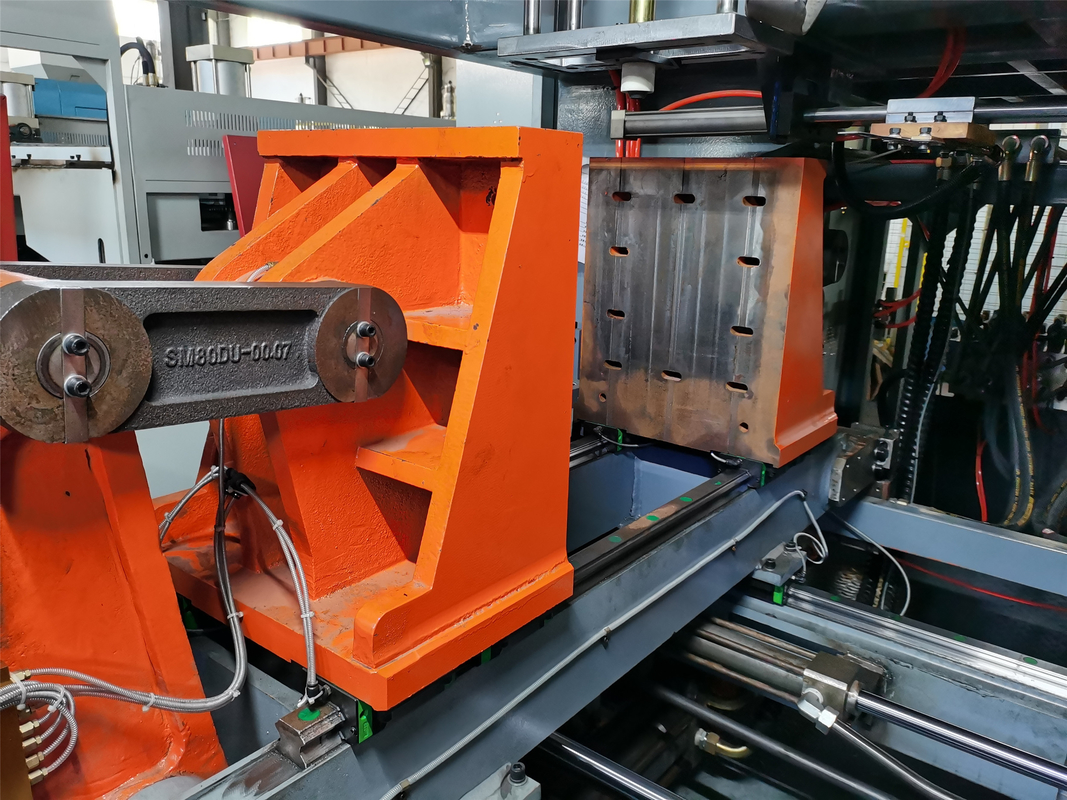

1: this machine is suitable for the production of 5L plastic hollow products.With toggle balance clamping system for high accuracy and excellent clamping force.
2: Display contrast is reduced: Click on the "Down" button and the display's light display will decrease in brightness.
Display Contrast Storage: Click the “S” button to store the current display's light display brightness to maintain the current brightness.
System runtime correction: Click “HH:MM:SS” to perform system time correction.
System language display selection: Click the "Chinese" button, all the characters displayed on the display are Chinese. Click the "ENGLISH" button to display all the text in English.
| SPECIFICATION | SLBU-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
| TOTAL WEIGHT | TON | 6.5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 220-520 |
| PLATEN SIZE(WxH) | MM | 400x430 |
| MAX MOULD SIZE(WxH) | MM | 460x430 |
| MOLD THICKNESS | MM | 255-280 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 15 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 180 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 50 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 18 |
