Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding

Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding

Products - Double Station Blow Molding Machine
  • High Light

    pesticide preform bottle blowing machine

    ,

    4 layer preform bottle blowing machine

    ,

    1 head multi layer blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    Plastic Pesticide Bottle
  • Clamping Type
    Toggle Type
  • Die Head
    1 Head
  • View Strip Line
    YES
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding

  • Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding
  • Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding
  • Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding
  • Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding
Get Price Contact Now

Toggle type 4 layers Double Station 1 Die head Blow Molding Machine for 5L Plastic Pesticide Bottle with View Strip Line​



SLBU series:





1:Automatic flying side device: in addition to the overflow device can accurately remove the product of the residual material, and with a straight push type in addition to the overflow device and a rotary knife type in addition to overflow device, the real realization.





2: Power on display:



Full computer electrical control system: Click the “Full Computer Electrical Control System” button to enter the control main screen.

System Tools: Click on the "System Tools" button to enter the System Tools screen.



3 System tool screen:



Display contrast is improved: Click the “Up” button and the brightness of the display will increase.





SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T

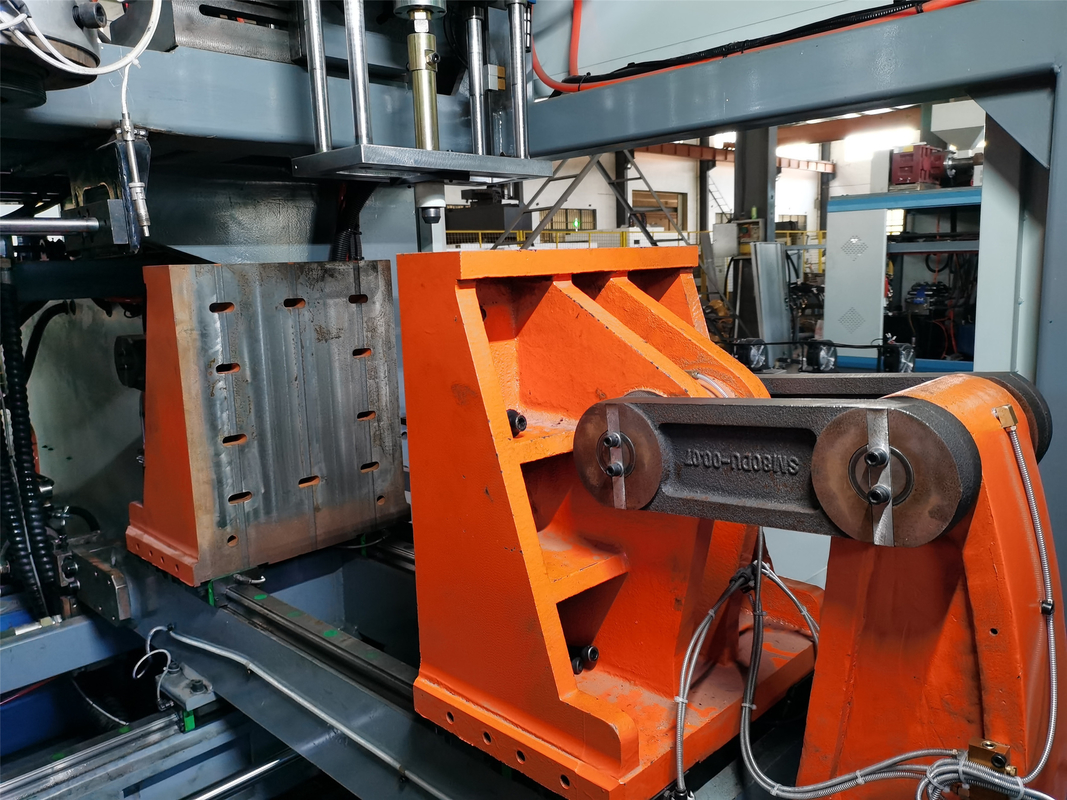

CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding 0



Pesticide 4 Layer Preform Bottle Blowing Machine 1 Head Multi Layer Molding 1
