High Speed Fully Electric Blow Molding Machine Plastic 400 Bph Single Station
-
High Light
SHUANGLI 400 bph single station blow molding machines
,400 bph single station blow molding machines SHUANGLI
,400 bph single station blow molding machine SHUANGLI
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity10L
-
ProductPlastic Food Package Bottl
-
Machine TypeFully Electric
-
StationDouble Or Single
-
SpeedHigh Speed
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBUD-80
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

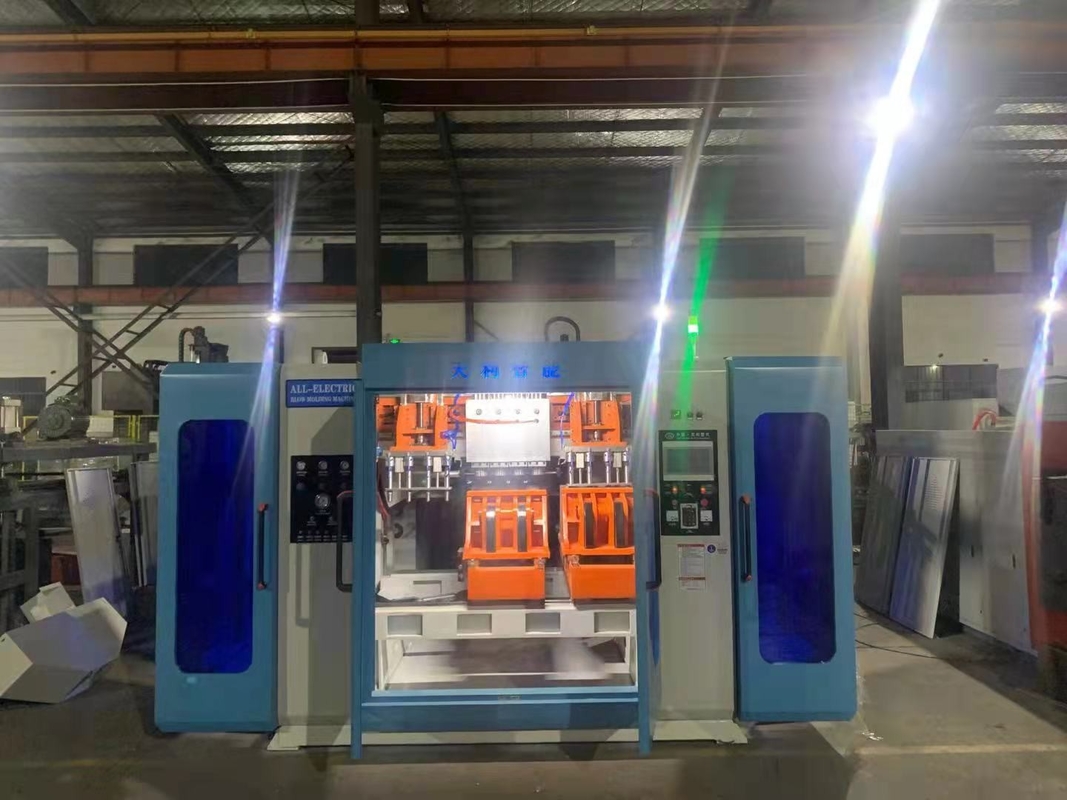

High Speed Fully Electric Blow Molding Machine Plastic 400 Bph Single Station
Fully Electric High Speed Blow Molding Machine for Plastic Food Package Bottle SLBUD-80
SLBUD series:
1.German Design Die with front adjustment for Faster Color Changing and Operators’ Safety
2.Die with Servo Balance System
3.Linear Rail Directive Blowing Pin with Fast Cooling System for Higher Accuracy and Less Friction.
4.RCI(Rapid Cooling Installation) Exchanges the Hot and Cold Air at the Same Time to Increase the Speed by 30%-40%.
5.Electronic Ruler Controlled Clamping Unit for Higher Accuracy and Speed.
6.Quick Mold Changing Design.
7.Optimized Integrated Pipeline Layout Ensures the Oil and Water Leakage Reduce.
Designed in German, the brand new shuangli Series extrusion blow molding machine is exceeding even more. Equipped with the new designed clamping unit, the machines can run more smoothly and faster. More importantly, the RCI(Rapid Cooling Installation) ensures lower cycle time and higher production capacity. Besides, the machine is designed for the sake of workers. The quick mold change system and external machine adjustment not only increase the production efficiency but also protect the workers’ safety.
Single/Double Station
Single/Double/Triple/Quadruple..6 Head
Production Volume:2ml~30L
Multi layers: Co-Extrusion 1-6 Layers
Multi cavities: 1~6 cavities
Designed for the PE/PP/PETG/PVC/Co-Extrusion material
8: this machine is suitable for the production of 200ML- 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.
With toggle balance clamping system for high accuracy and excellent clamping force.
9: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.

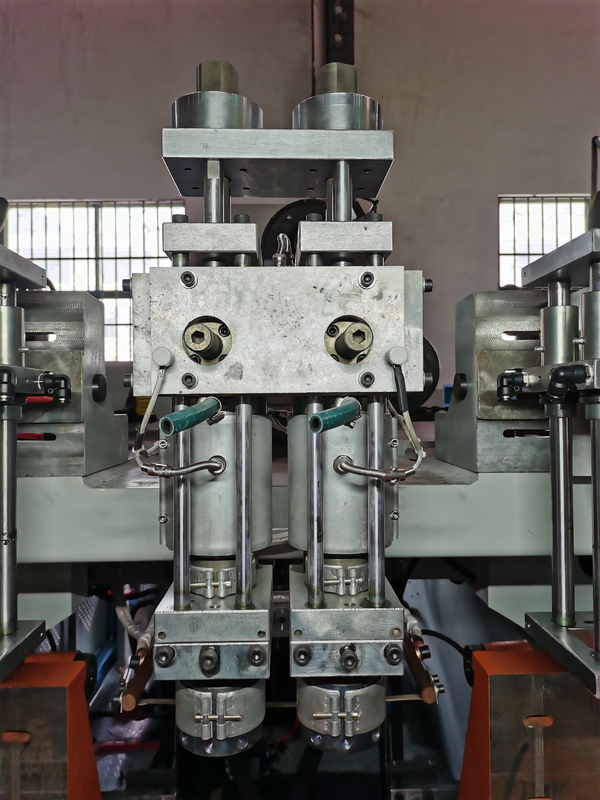

10: die head system: all the use of 38CRMOALA and other materiais, the precision machining and heat treatment.
| SPECIFICATION | SLBUD-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 10 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 400x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4200x2800x2200 |
| TOTAL WEIGHT | TON | 8T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 120 |
| PLATEN OPENING STROKE | MM | 250-600 |
| PLATEN SIZE(WxH) | MM | 500x450 |
| MAX MOULD SIZE(WxH) | MM | 500x450 |
| MOLD THICKNESS | MM | 255-350 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 20 |
| NUMBER OF HEATING ZONE | ZONE | 4 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 3-12 |
| POWER OF DIE HEATING | KW | 10-30 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 250 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 260 |
| POWER | ||
| MAX DRIVE POWER | KW | 35 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.6-0.8 |
| AIR CONSUMPTION | M3/MIN | 0.5 |
| AVERAGE ENERGY CONSUMPTION | KW | 26 |
