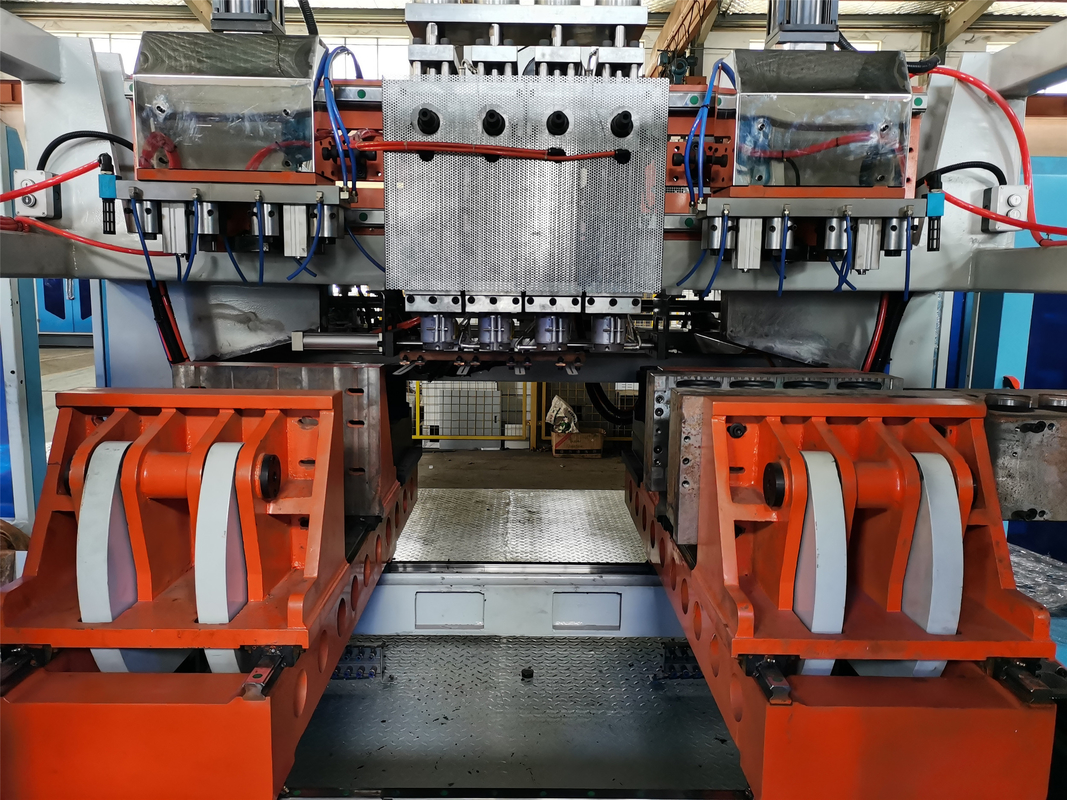

20l Fully Electric Blow Molding Machine Beverage Bottle Extrusion 8 Heads

Fully Electric Double Station Blow Molding Machine for Plastic Beverage Package Bottle SLBUD-90

SLBUD series:

1. this machine is suitable for the production of 200ML- 20L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.

With toggle balance clamping system for high accuracy and excellent clamping force.

2:.die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.

3. die head system: all the use of 38CRMOALA and other materiais, the precision machining and heat treatment.

4.Toggle Balance Clamping System for High Accuracy and Excellent Clamping Force.

5.Servo Hydraulic System includes Servo Head Lifting, Servo Die Head, Servo Parison Control System, Servo Blow Pin, Servo Clamping Unit and Servo Carriage.

6.Linear Rail Electronic Blowing Pin Greatly Increases the Accuracy.

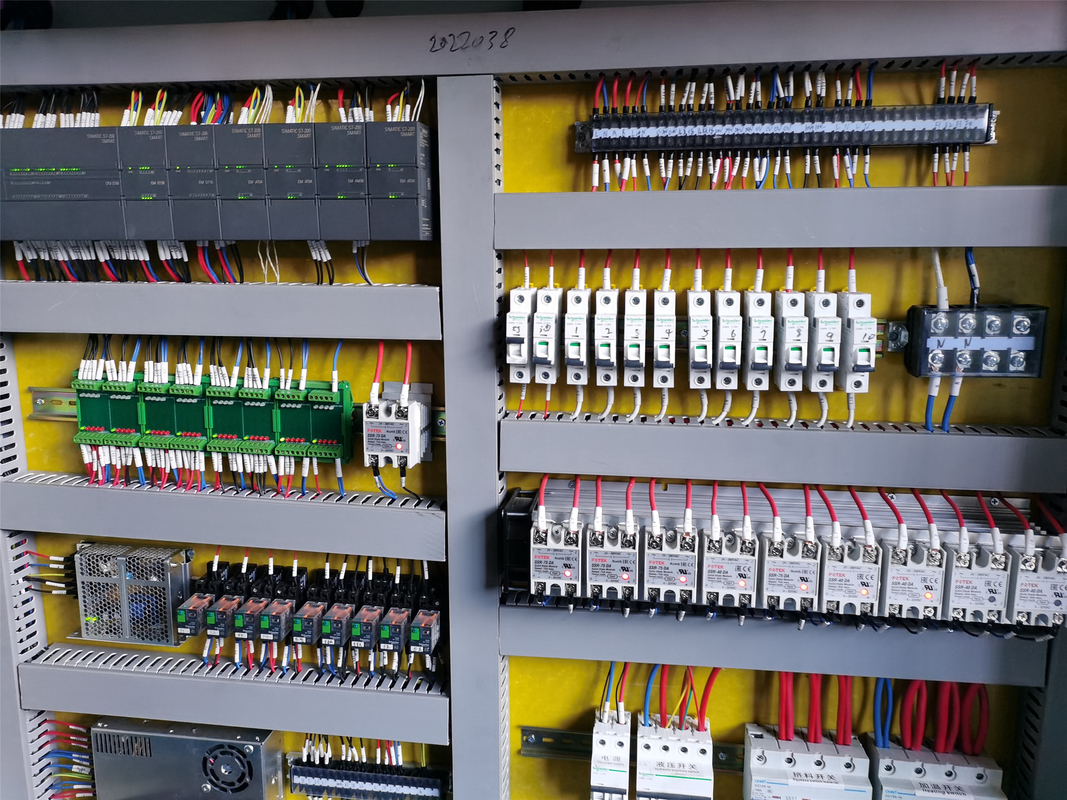

7.Siemens User-Friendly PLC.

8.Low Energy Consumption, Stable, Reliable and Widely Used.

9 extrusion blow-molding machine is the most mainstream product in the market. U series machines are equipped with the Linear-Line Guide Rail for the smoother and faster motion of the swing frame, which ensures reliable performance and high production capacity. It’s designed for different kinds of plastic bottles such as milk bottles, jerrycan, chemical drums and more. Furthermore, it can work with various auxiliary machines to provide manifold production solutions.
Single/Double Station
Single/Double/Triple/Quadruple..8 Head
Production Volume:2ml~30L
Multi layers: Co-Extrusion 1-6 Layers
Multi cavities: 1~8 cavities
Designed for the PE/PP/PETG/PVC/Co-Extrusion material

SPECIFICATION		SLBUD-90
MATERIAL		PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY	L	20
NUMBER OF DIE HEAD	SET	1,2,3,4,6,8
OUPUT(DRY CYCLE)	PC/HR	220x2
MACHINE DIMENSION (LxWxH )	MM	5200x3200x2400
TOTAL WEIGHT	TON	15T
CLAMPING UNIT
CLAMPING FORCE	KN	160
PLATEN OPENING STROKE	MM	350-750
PLATEN SIZE(WxH)	MM	600x600
MAX MOULD SIZE(WxH)	MM	600x580
MOLD THICKNESS	MM	360-420
EXTRUDER UNIT
SCREW DIAMETER	MM	90
SCREW L/D RATIO	L/D	25
MELTING CAPACITY	KG/HR	140
BARREL HEATING POWER	KW	30
NUMBER OF HEATING ZONE	ZONE	5
EXTRUDER MOTOR RATED POWER	KW	45

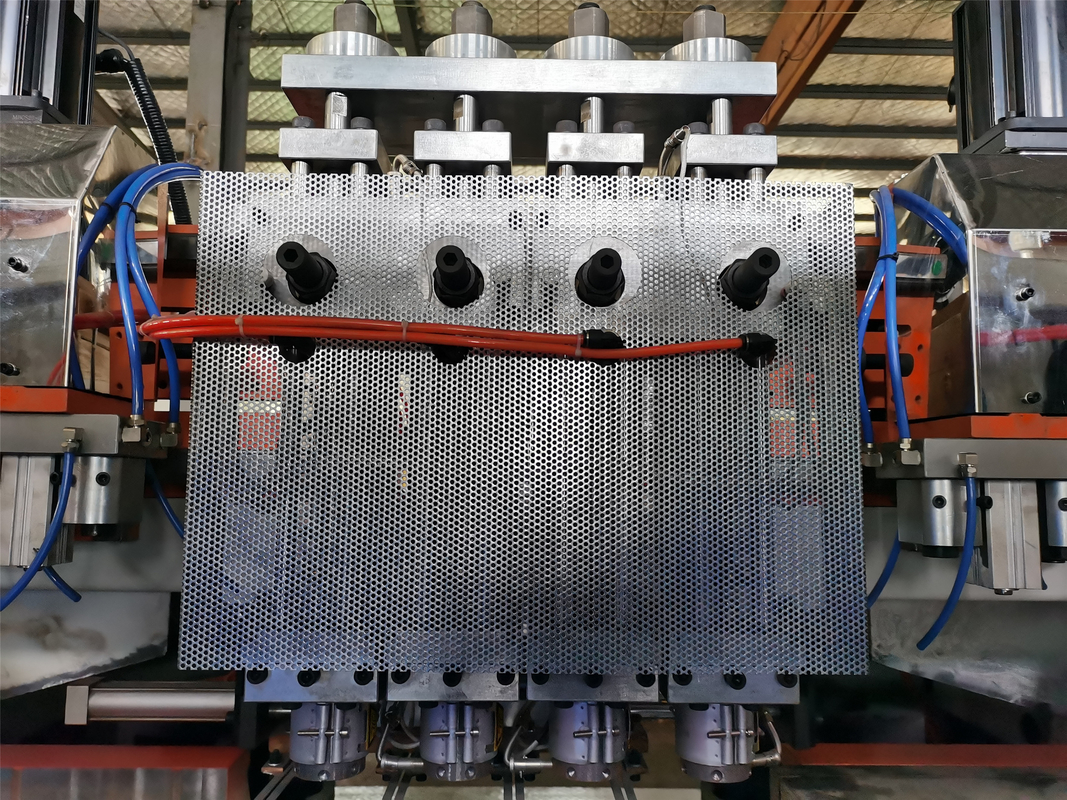

DIE HEAD
NUMBER OF DIE HEATING ZONE	ZONE	3-12
POWER OF DIE HEATING	KW	10-30
CENTER DISTANCE OF DOUBLE DIE	MM	250
CENTER DISTANCE OF THREE DIE	MM	130
CENTER DISTANCE OF FOUR DIE	MM	100
CENTER DISTANCE OF SIX DIE	MM	80
MAX DIE-PIN DIAMETER	MM	280
POWER
MAX DRIVE POWER	KW	50
TOTAL POWER	KW	110
FAN POWER OF SCREW	KW	4
AIR PRESSURE	MPA	0.8-1
AIR CONSUMPTION	M3/MIN	0.6
AVERAGE ENERGY CONSUMPTION	KW	35
