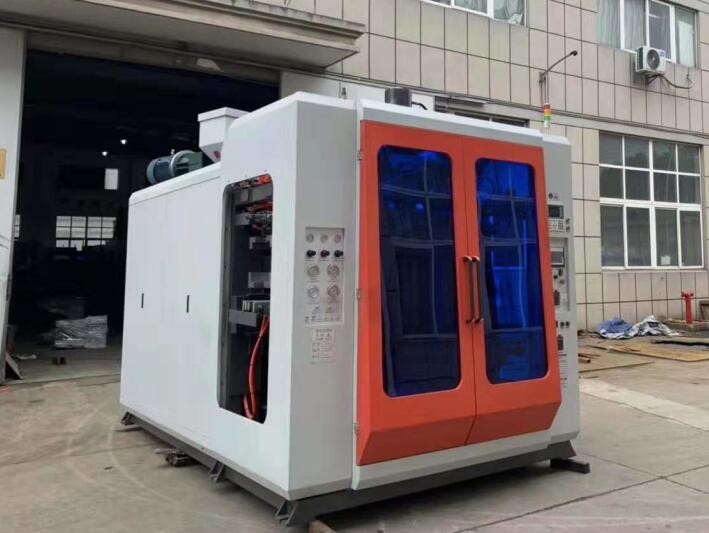

1L Plastic Bottle Automatic Extrusion Blow Molding Machine Multi Layers

High Speed Automatic Extrusion Blow Molding Machine for plastic bottle

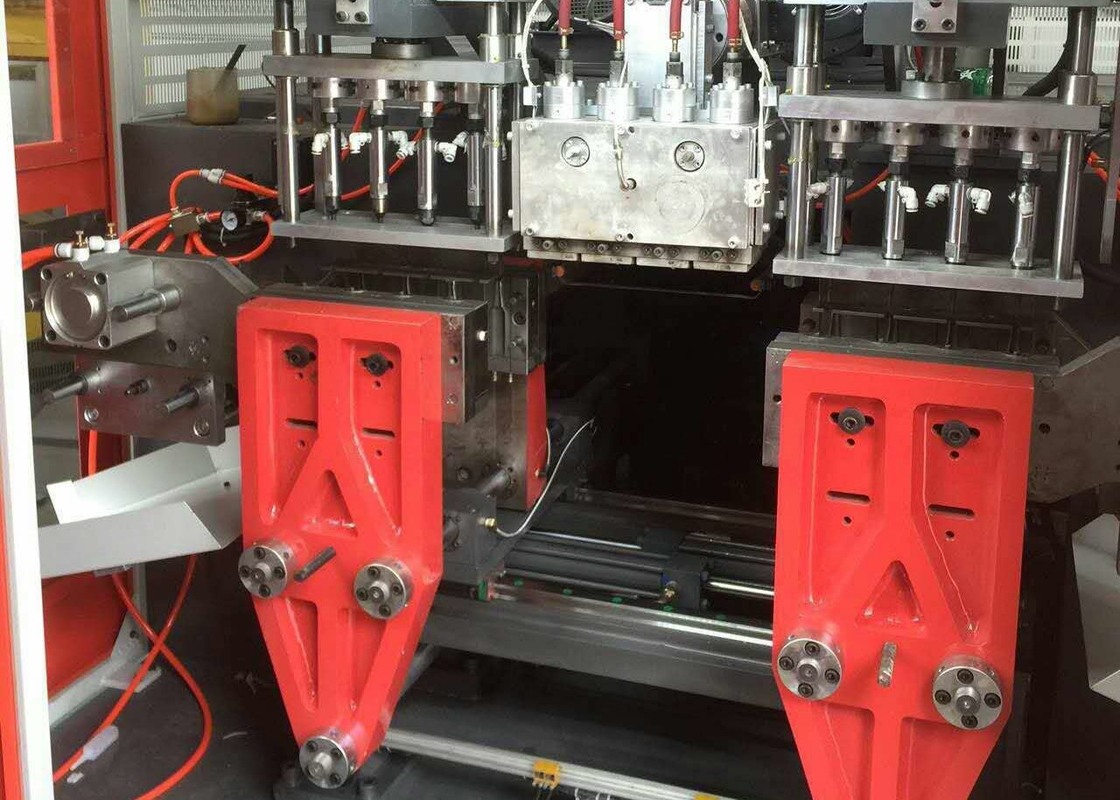

1: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.

2: plasticizing system: frequency conversion motor Hardened reducer with high quality nitride barrel screw, variable frequency speed control, energy efficient and stable yield. And shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials

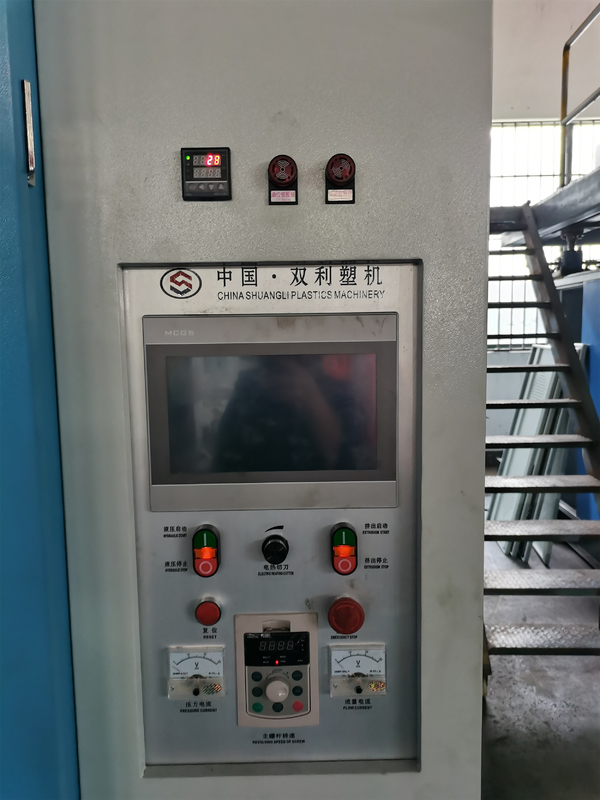

3: electronic control system: the use of PLC man- machine interface, all parameters set, modify, retrieval can be seen as the operation, the system runs stable, accurate positioningIndeed.

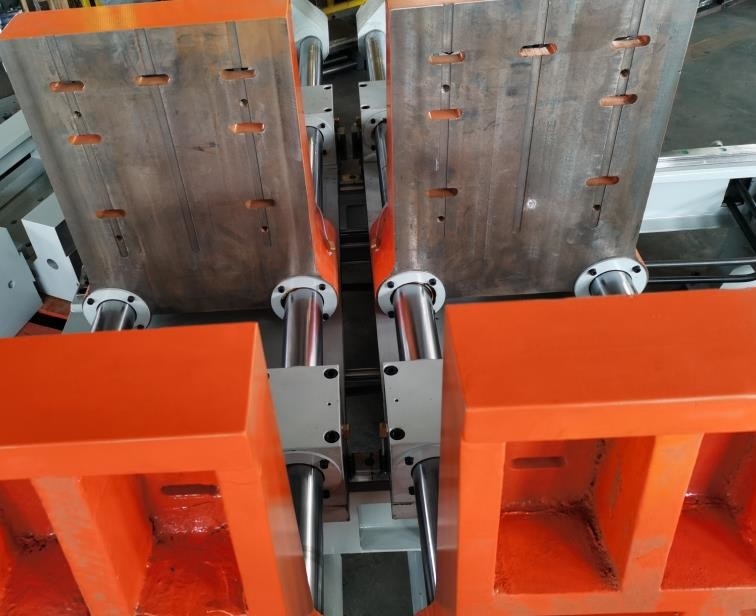

Since the mold shifting and opening and closing mechanism are frequently operated and the moving speed is fast, an automatic lubricating device is disposed, but the lubricating oil in the automatic lubricating device is also regularly inspected and filled. This will increase and extend the life of the machine, resulting in better economics. The movement mode of the mold shifting and opening and closing mold mechanism is fast, and it is necessary to pay great attention to safety during the installation of the mold, the debugging, and the adjustment process, especially when the two templates and the two sides of the mold shifting seat are in operation, please keep away from the safety.

shifting and opening
