High Speed Automatic Extrusion Blow Molding Machine For 5L Plastic Bottle

High Speed Plastic Bottle Automatic Extrusion Blow Molding Machine for 5L plastic bottle

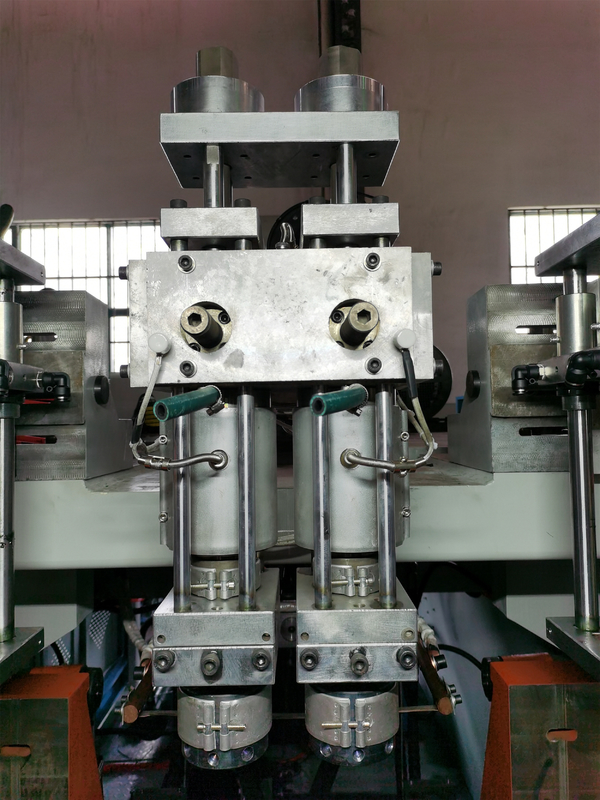

1: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.

2: plasticizing system: frequency conversion motor Hardened reducer with high quality nitride barrel screw, variable frequency speed control, energy efficient and stable yield. And shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials

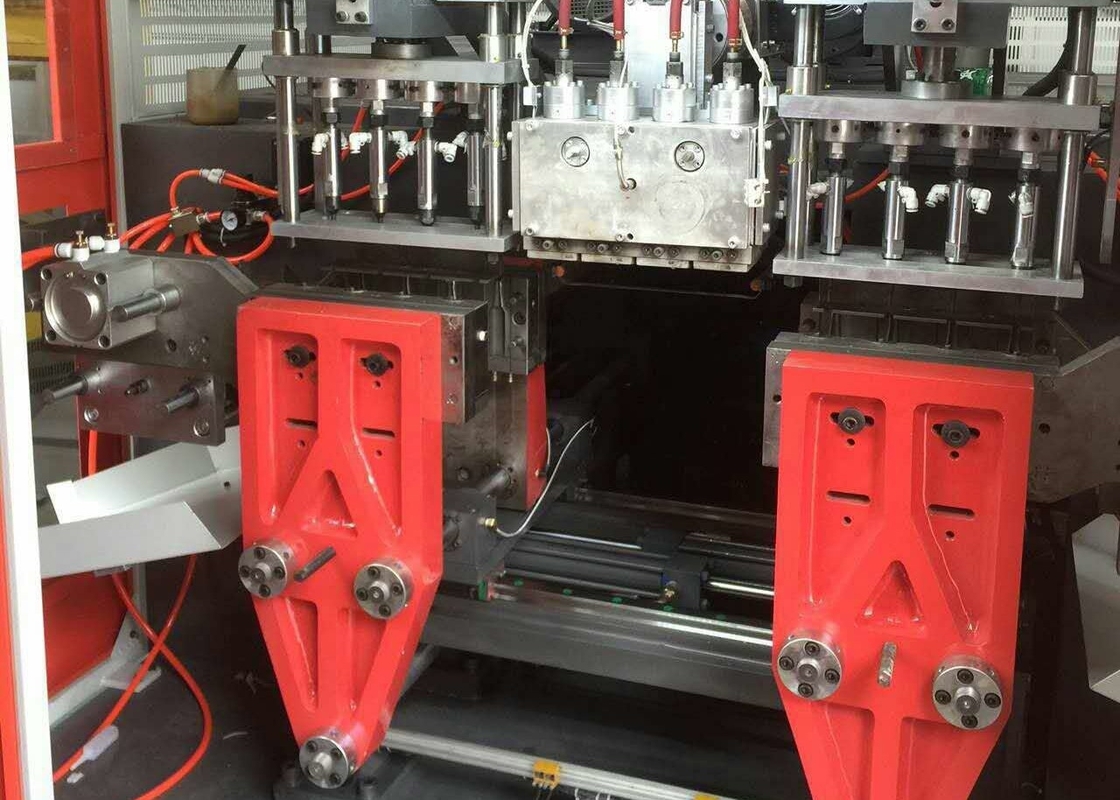

It consists of a blow needle cylinder, a needle holder, a pad, a fixing plate, an adjustment plate, an air blowing device . The air blowing device can be divided into single head, double head and four heads, and the air blowing device is composed of a connecting plate, a blowing needle hanging plate, a fixing plate, a guiding column, a bearing sleeve, a pressing plate, a stripping sleeve, a needle bar, a needle bar core, Blowing head and other components.
