U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle

U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle

Products - HDPE Blow Moulding Machine
  • High Light

    SLBU-65 u type hdpe blow moulding machine

    ,

    SLBU-65 u type hdpe blow moulding machines

    ,

    u type hdpe blow moulding machines SLBU-65

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    Plastic Motor Oil Bottle
  • Clamping Type
    Toggle Type-U Type
  • Layer
    1 Layer
  • Station
    Double Station
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle

  • U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle
  • U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle
  • U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle
  • U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle
  • U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle
Get Price Contact Now

HDPE High Speed 1 Layer Automatic Extrusion Blow Molding Machine for Plastic Motor Oil Bottle​



SLBU series:







1: this machine is suitable for the production of 200ML 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.



2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.



3: The automatic blow molding machine module is the core components of plastic molting part which adopts the German technology.
motor oil bottle low molding machine provide you the best blow molding solution for lubricant oil bottle, motor oil bottle, engine oil bottle, machine oil bottle and additive packaging.The plastic molding volume is from 0.3liter to 5liters.


Our company equipped with excellent precise processing and strict QC system in manufacturing motor oil bottle Blow Molding Machine. Also, we rovides blow molding project-solution with providing high-end fast speed blow molding technology and best after-sales services.





SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T

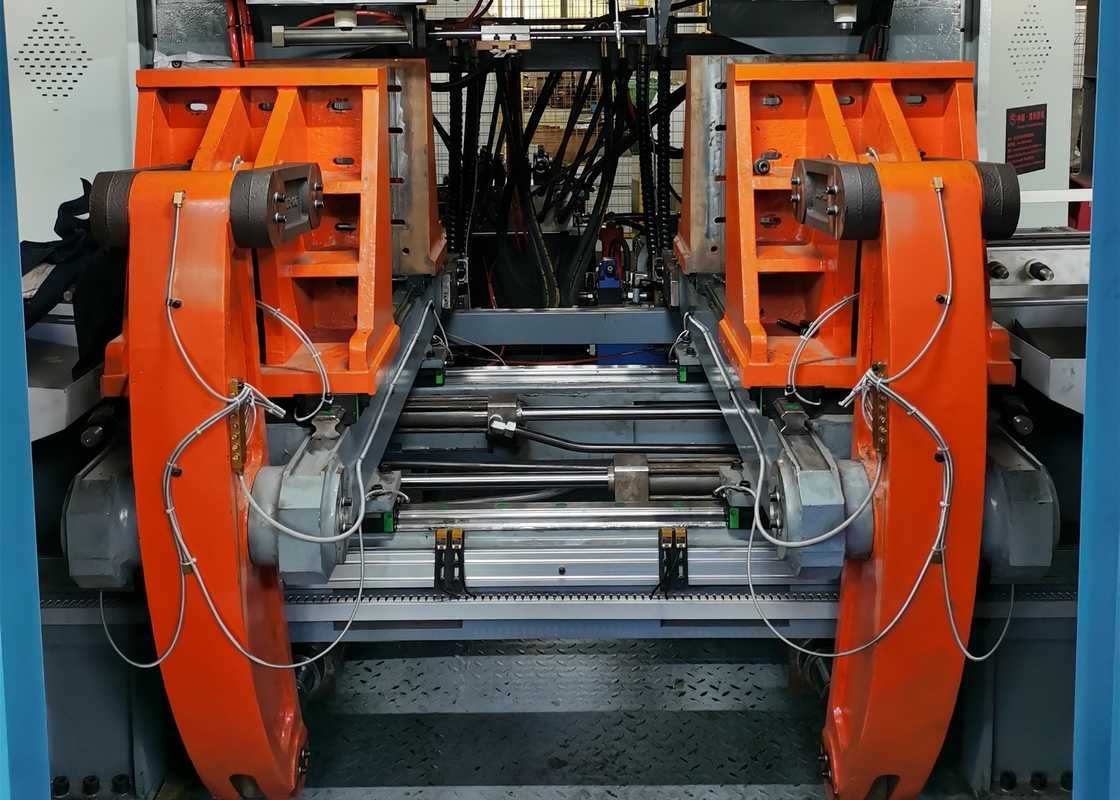

CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

U Type HDPE Blow Moulding Machine Motor Oil Bottle , 5L Blowing Machine For Plastic Bottle 0
