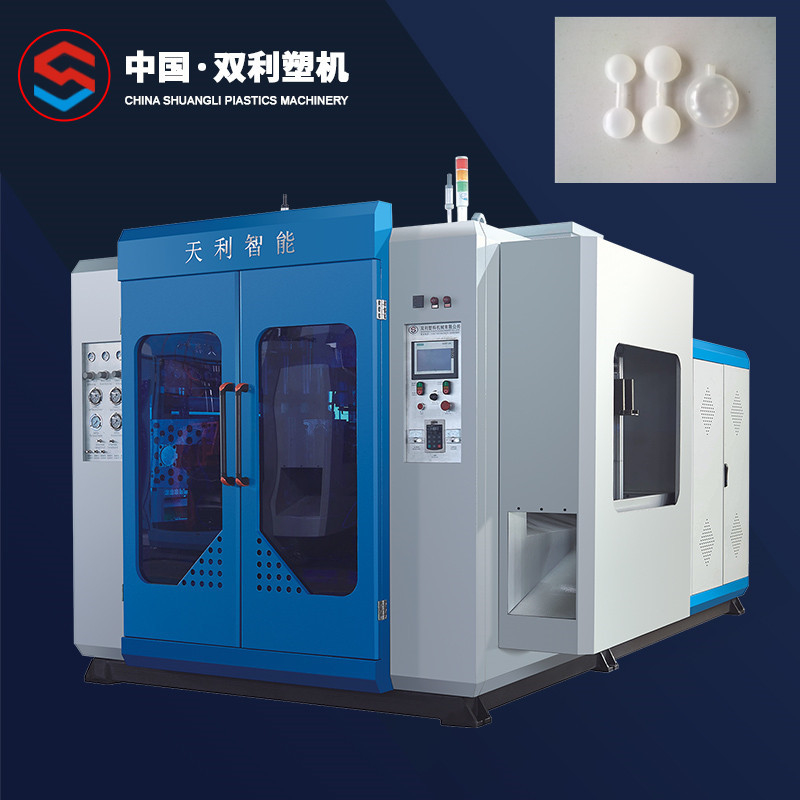

Medical Double Station Plastic Box Blow Molding Machine 10l Extrusion Moulding
-
High Light
medical plastic box blow molding machine
,double station plastic box blow molding machine
,10l plastic extrusion blow moulding machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity10L
-

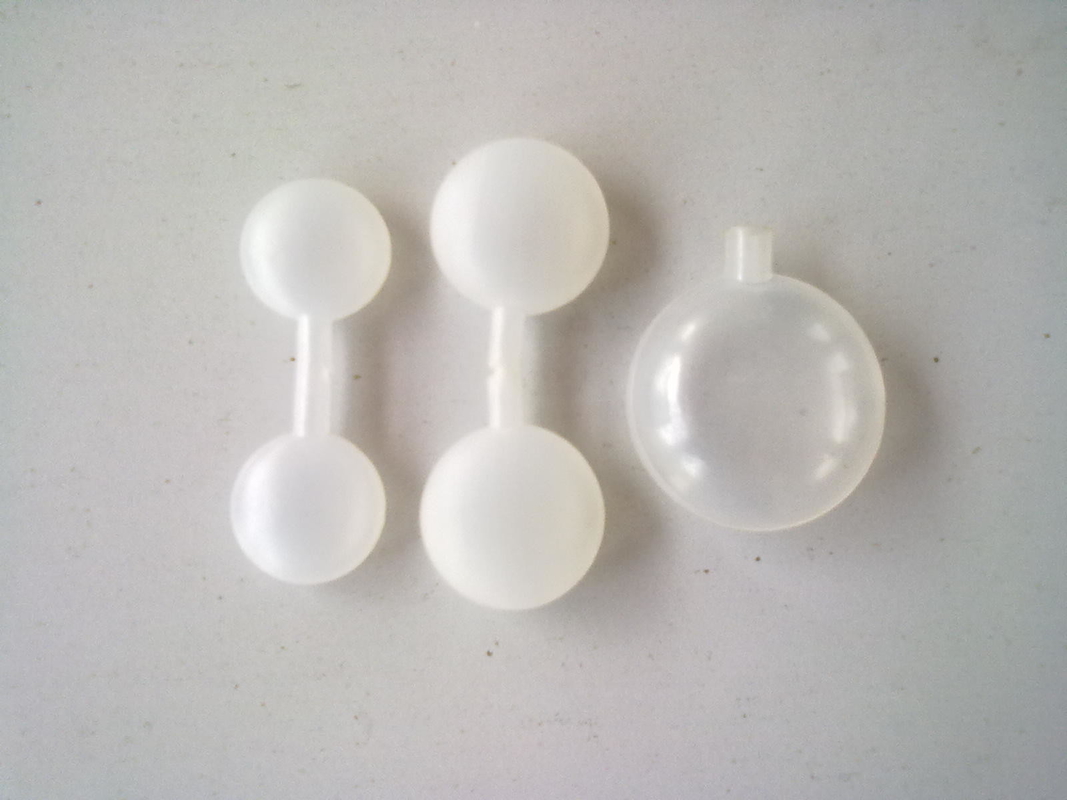

ProductPlastic Medical Box
-
Clamping TypeToggle Struction
-
Die Head1- 8 Heads
-
StationDouble Station
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBU-80
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
Medical Double Station Plastic Box Blow Molding Machine 10l Extrusion Moulding
HDPE Double Station Extrusion Blow Molding Machine for Plastic Medical Box
The main features of blow molding machine:
1, Blowing machine based on the precise calculation of the die flow channel design, streamlined, no dead ends and able to quickly change color.
2,To ensure low back pressure, effectively extending the extrusion system and gearbox life.
3,The multi-cavity of blow molding machine has a reasonable distribution of the flow, the flow can be adjusted easily.
4,Blow molding machine use Multi-layer co-extruded die head with heart-shaped flow path.
5,All types of die head can increase the design of the visible level line.
6 die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.
7.With Servo Hydraulic System includes Servo Head Lifting, Servo Die Head, Servo Parison Control System, Servo Blow Pin, Servo Clamping Unit and Servo Carriage
| SPECIFICATION | SLBU-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 10 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 950x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4600x2600x2600 |
| TOTAL WEIGHT | TON | 7.5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 86 |
| PLATEN OPENING STROKE | MM | 300-600 |
| PLATEN SIZE(WxH) | MM | 450x450 |
| MAX MOULD SIZE(WxH) | MM | 500x450 |
| MOLD THICKNESS | MM | 305-400 |

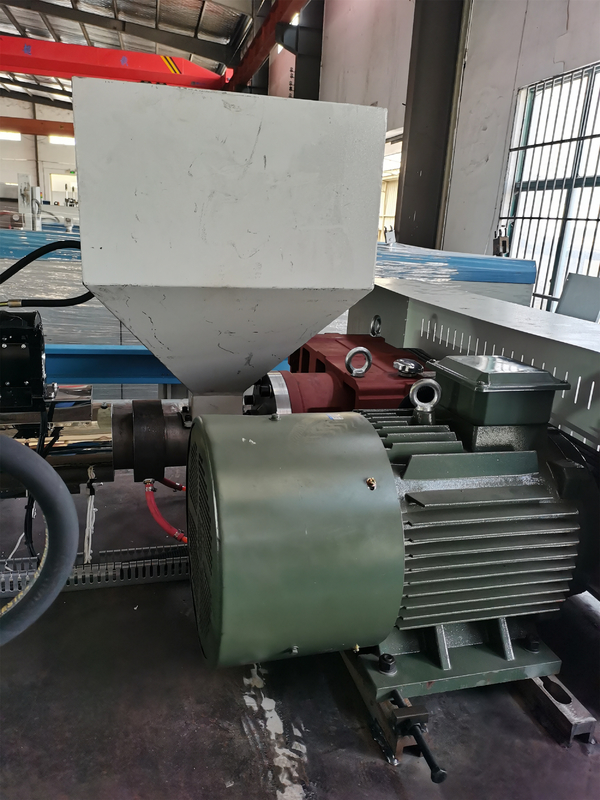

| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 20 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 160 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 260 |
| POWER | ||
| MAX DRIVE POWER | KW | 35 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.5 |
| AVERAGE ENERGY CONSUMPTION | KW | 22 |
Our products are sold all over the world, you can rest assured.
