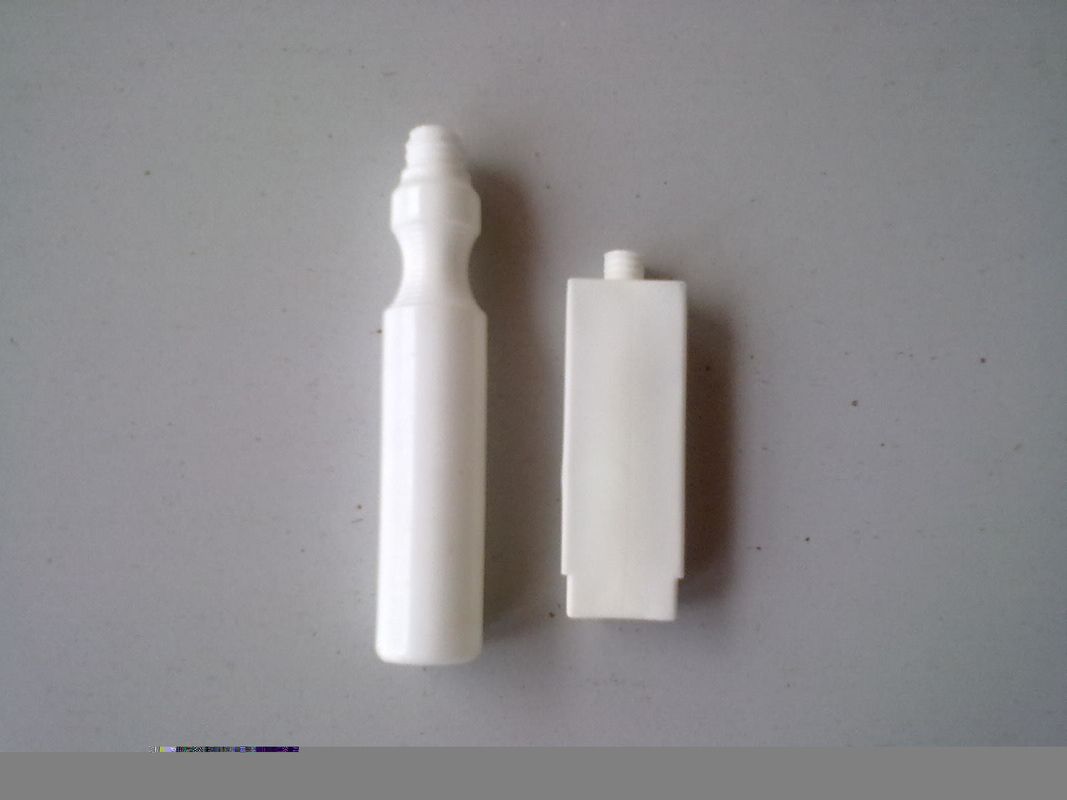

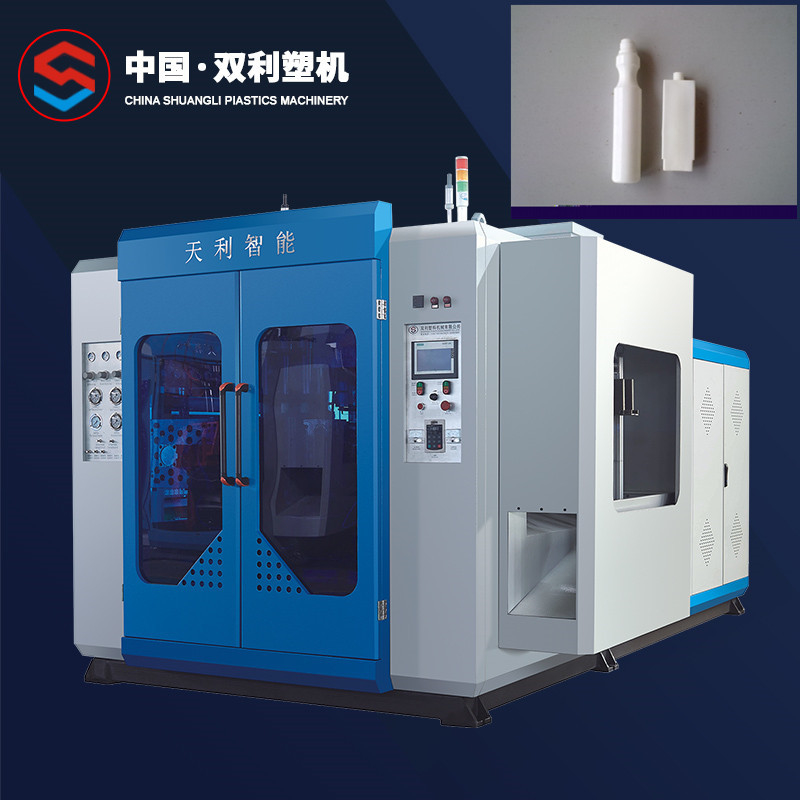

HDPE Double Station Extrusion Blow Molding Machine for Plastic Small Medical Bottles​

SLBU series:

1: this machine is suitable for the production of 200ML 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.

WIth toggle balance clamping system for high accuracy and excellent clamping force.

2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.

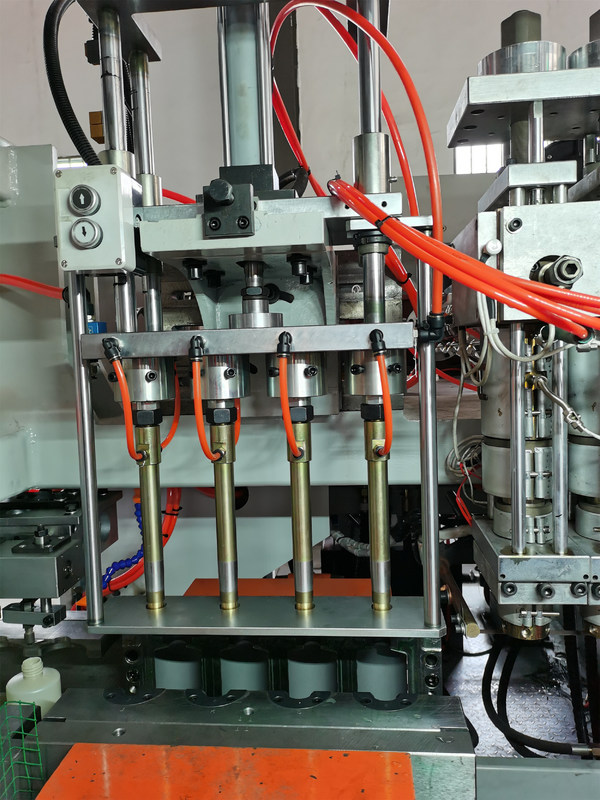

3: die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment.

4: hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.

5: automatic flying side device: in addition to the overflow device can accurately remove the product of the residual material, and with a straight push type in addition to the overflow device and a rotary knife type in addition to overflow device, the real realizationAutomatic equipment without manual operation.

6. In the event of an emergency, the emergency stop button can be pressed for emergency braking. Then analyze the cause of the formation according to the site conditions and find a quick solution to the problem.

7. Check if the high-pressure gas source, low-pressure gas source, power source and water source are normal.

8. After each automatic blow molding machine is finished, it is necessary to clean the tools and screws and the like to avoid leaving them in the machine and affecting the normal operation of the machine.

9. Before every shift, you must add lubricant to each moving part. The swing arm can be added once (3 – 4) days. Heating machine large chain, small chain can be once a month. Check the main engine reducer and heating machine reducer for lack of oil. The main bearing can be added once every 3 months.

10. After the automatic blow molding machine is in normal production, the operator must observe the quality of the bottle from time to time in order to avoid voltage fluctuations or other factors affecting the blowing quality.
