4 Head HDPE Blow Moulding Machine

4 Head HDPE Blow Moulding Machine

Products - HDPE Blow Moulding Machine
  • High Light

    tube HDPE Blow Moulding Machine

    ,

    4 head HDPE Blow Moulding Machine

    ,

    ABS fully automatic blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    10L
  • Product

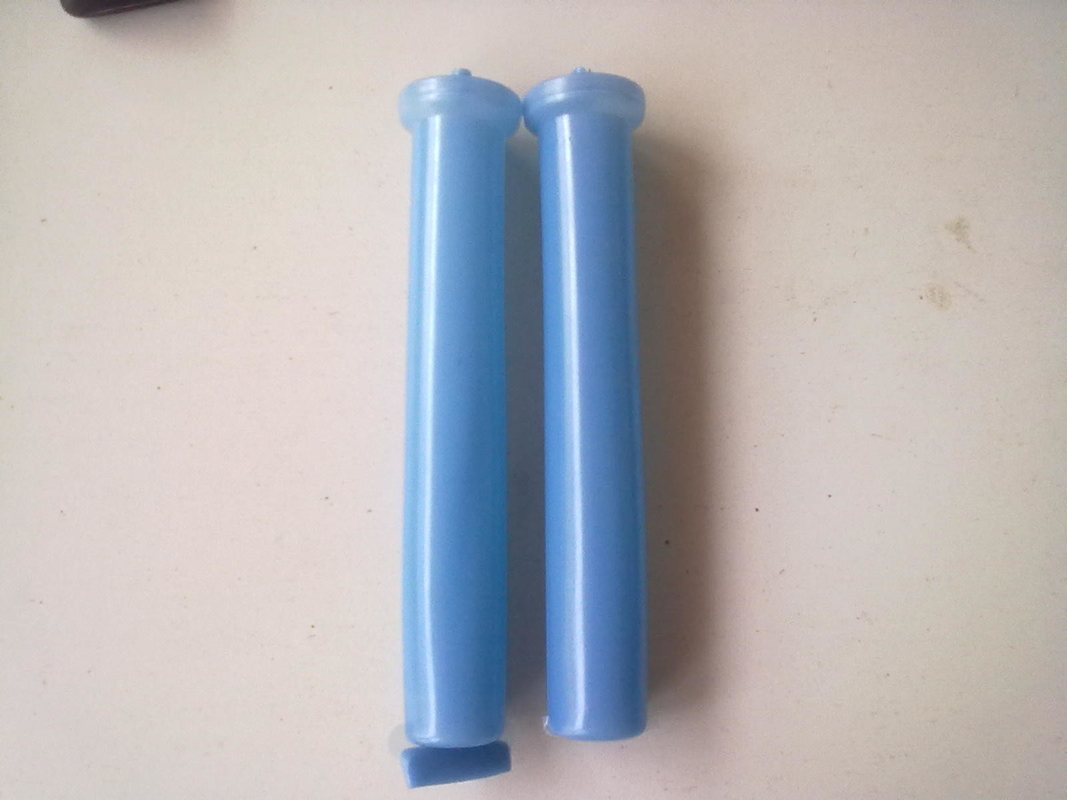

    Small Plastic Tube
  • Machine Type
    Toggle -U TYPE
  • Die Head
    1-4 Heads
  • Station
    Double
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-80
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

4 Head HDPE Blow Moulding Machine

  • 4 Head HDPE Blow Moulding Machine
  • 4 Head HDPE Blow Moulding Machine
  • 4 Head HDPE Blow Moulding Machine
  • 4 Head HDPE Blow Moulding Machine
Get Price Contact Now

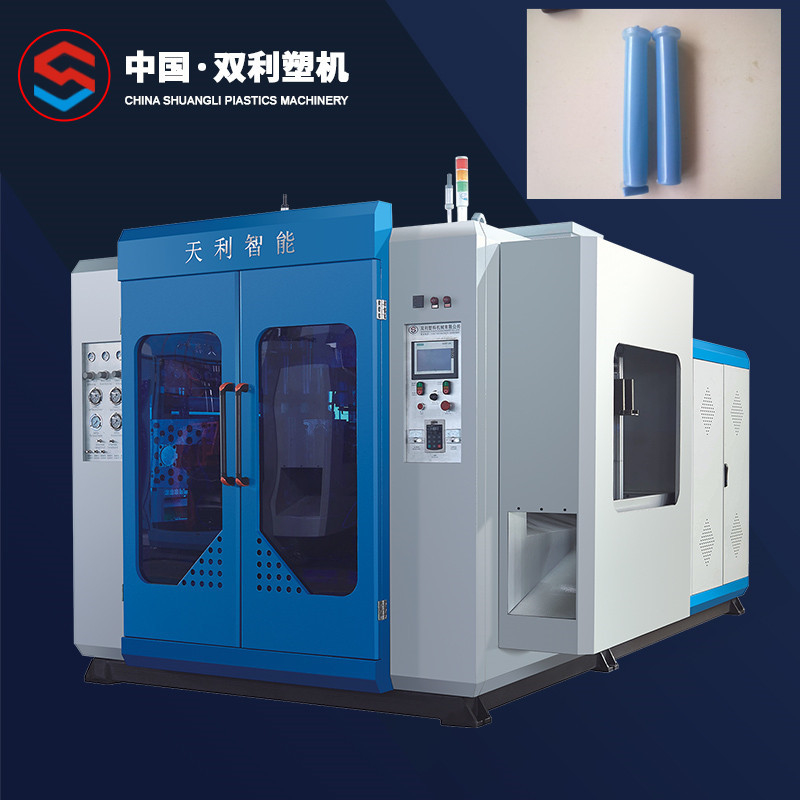

HDPE Double Station Extrusion Blow Molding Machine for Small Plastic Tube​



SLBU series:




1,Check whether synchronous belt elasticity appropriate;


2,Adjust the running speed of each action;


3,Check whether the pressure sensor is normal


4,Test whether the circular switch is normal


5,Manipulator and bottle blow molding machine interlock is normal.



6.hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.

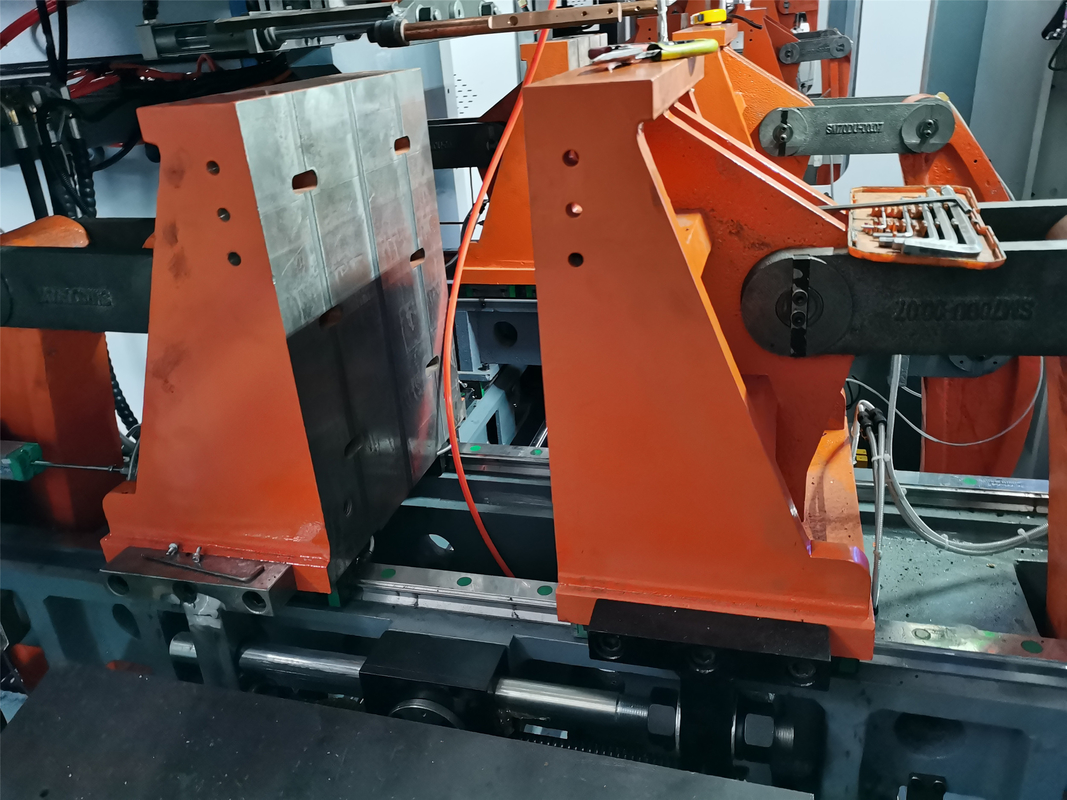

7.With toggle balance clamping system for high accuracy and excellent clamping force.

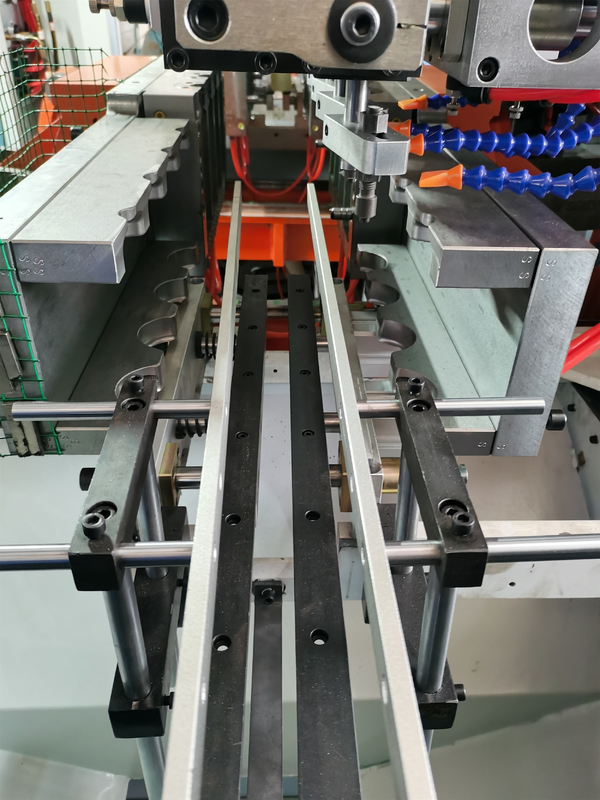

8 automatic flying side device: in addition to the overflow device can accurately remove the product of the residual material, and with a straight push type in addition to the overflow device and a rotary knife type in addition to overflow device, the real realizationAutomatic equipment without manual operation.









SPECIFICATION SLBU-80
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 10
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 950x2
MACHINE DIMENSION (LxWxH ) MM 4600x2600x2600
TOTAL WEIGHT TON 7.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 86
PLATEN OPENING STROKE MM 300-600
PLATEN SIZE(WxH) MM 450x450
MAX MOULD SIZE(WxH) MM 500x450
MOLD THICKNESS MM 305-400
EXTRUDER UNIT 　
SCREW DIAMETER MM 80
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 120
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 30
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 160
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 260
POWER 　
MAX DRIVE POWER KW 35
TOTAL POWER KW 82
FAN POWER OF SCREW KW 3.2
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.5
AVERAGE ENERGY CONSUMPTION KW 22

4 Head HDPE Blow Moulding Machine 0
