2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine

2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine

Products - Continuous Extrusion Blow Molding
  • High Light

    CHINA 2 colors continuous extrusion blow molding

    ,

    2 colors continuous extrusion blow molding china

    ,

    2 colors continuous extrusion blow molding CE

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Product
    Plastic Furniture Parts
  • Clamping Type
    Tie Bar K Type
  • Color
    2 Colors
  • Station
    Double
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBK-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine

  • 2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine
  • 2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine
  • 2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine
  • 2 Colors Continuous Extrusion Blow Molding 1 Head , 1000bph 2l Blow Molding Machine
Get Price Contact Now

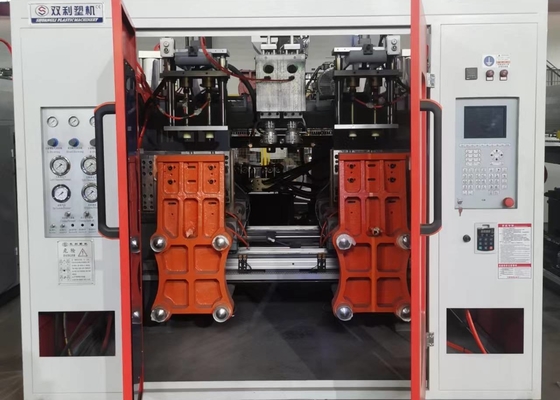

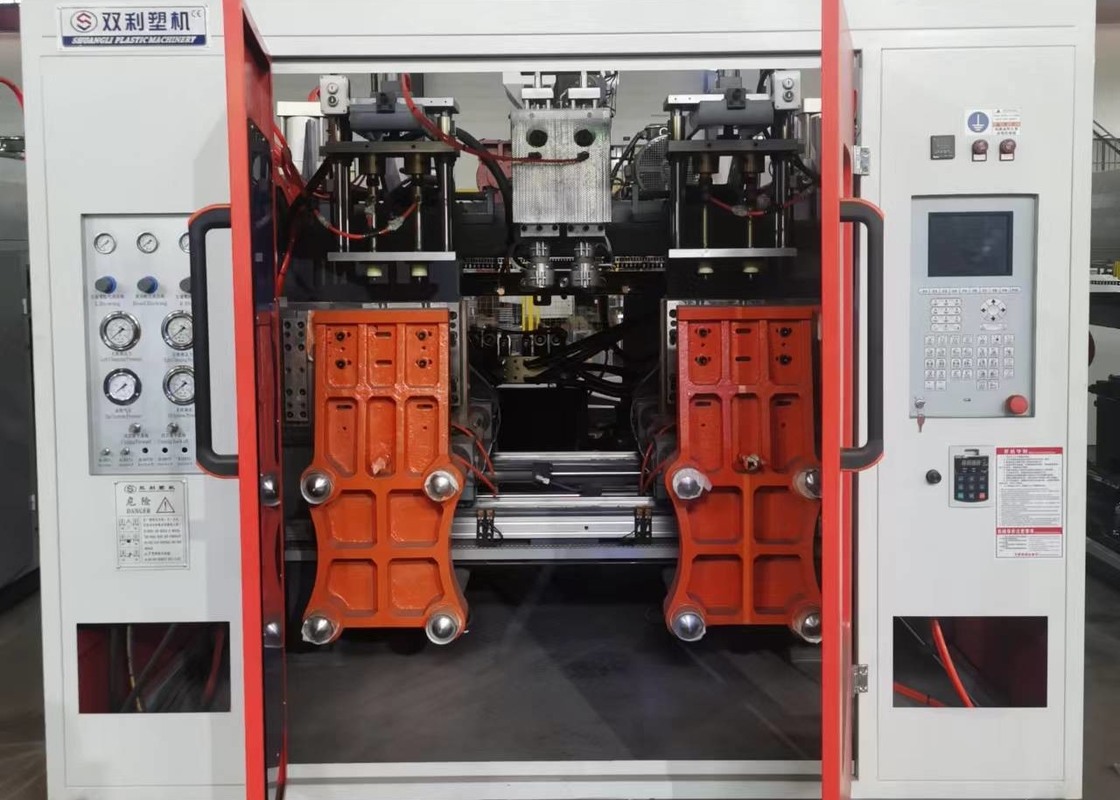

K series Tie Bar High Speed  2 Colors  Double Station 1 Die head Blow Molding Machine for Plastic Furniture parts



SLBK series

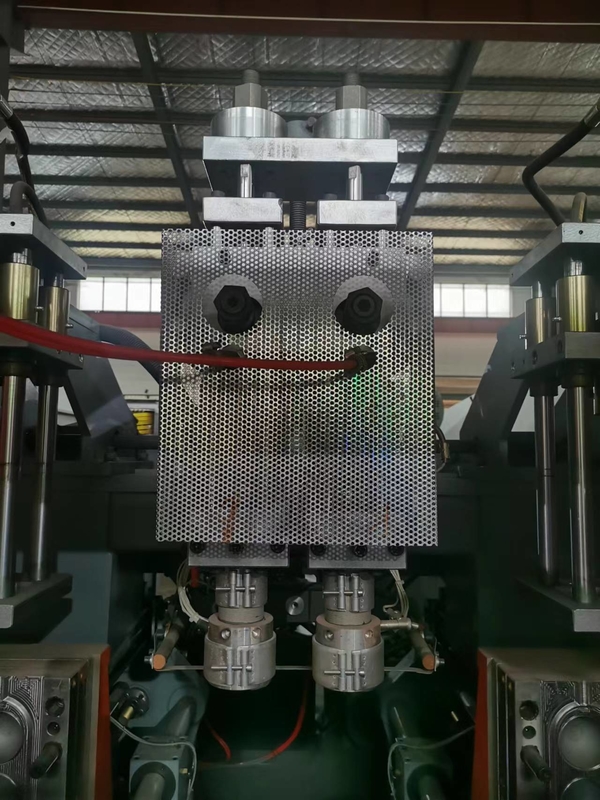

1: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.



2: Press the cutter forward and backward button to check whether the cutter is moving smoothly.

Manually switch the module several times to check if the position of the micro switch is appropriate. Preparing to install the mold

Jog the mold frame up and down to see if the mold frame is in contact with other parts.

The process parameters of each process are appropriately set in the display process parameter setting screen.

Press the auto start button, the machine will run fully automatically for about half an hour. If there is no abnormality, stop it and prepare to install the mold.





SPECIFICATION SLBK-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3400x2200x2200
TOTAL WEIGHT TON 5T
CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-400
PLATEN SIZE(WxH) MM 260X330
MAX MOULD SIZE(WxH) MM 300x330
MOLD THICKNESS MM 125-220
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 32
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 13
