Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine

Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine

Products - Continuous Extrusion Blow Molding
  • High Light

    double station fully automatic blowing machine

    ,

    1000bph fully automatic blowing machine

    ,

    2l plastic extrusion blow moulding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Product
    Plastic Chemical Containers
  • Clamping Type
    Tie Bar
  • Die Head
    1 Head
  • Station
    Double
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBK-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine

  • Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine
  • Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine
  • Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine
  • Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine
Get Price Contact Now

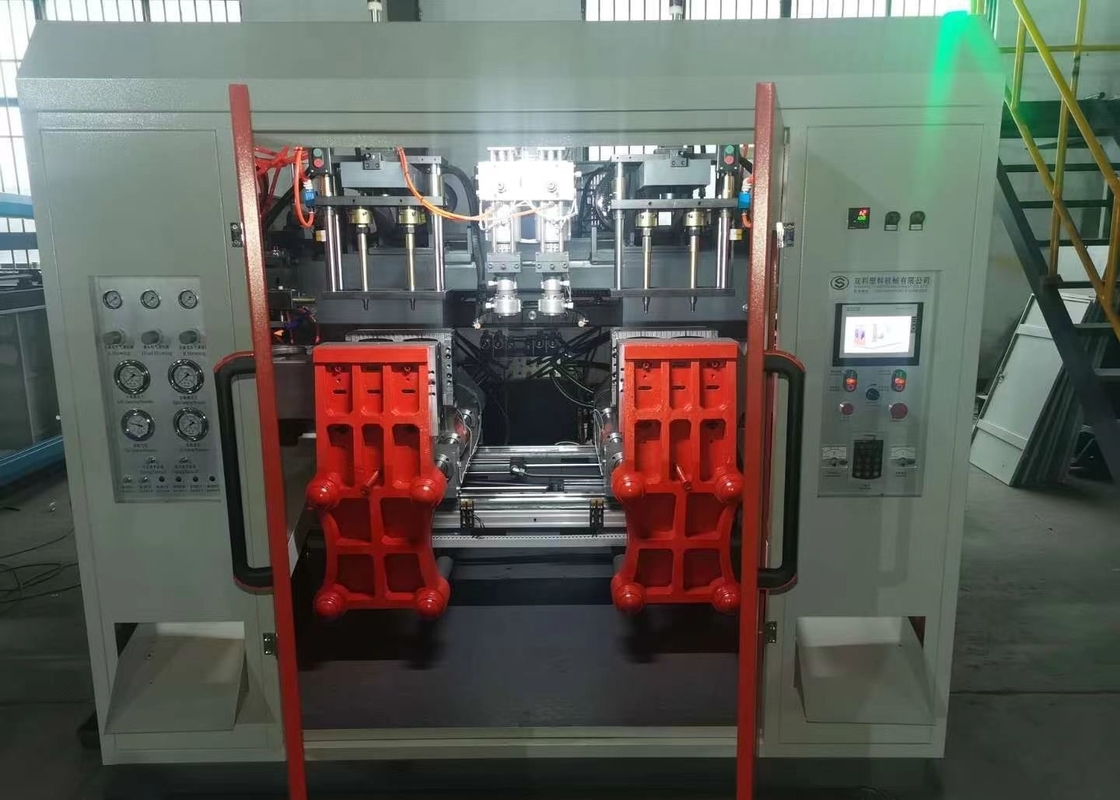

K series Tie Bar High Speed 4 Layers Double Station 1 Die head Blow Molding Machine for Plastic Chemical Containers​



SLBK series

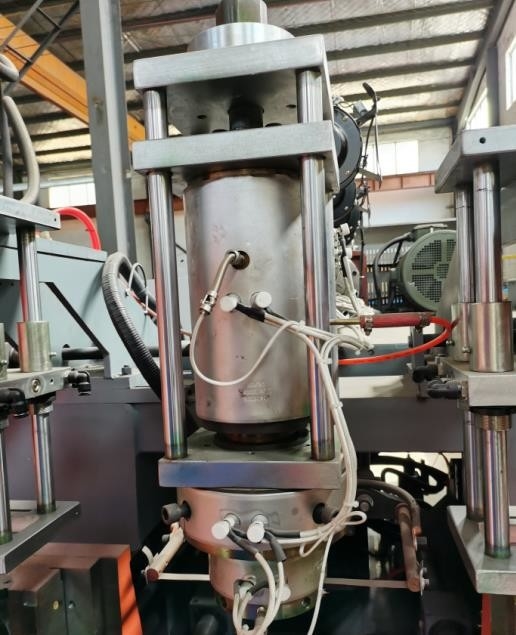

1: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.



2: Jog the oil pump motor start button to check whether the steering is consistent with the arrow on the cover. If they are not consistent, any two of the three lines of the power supply R, S, T can be changed.

The pressure parameters of each action are sequentially set in the display pressure setting screen.

In the manual action screen of the display, press the manual blow button to stop it at the top dead center.







SPECIFICATION SLBK-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3400x2200x2200
TOTAL WEIGHT TON 5T
CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-400
PLATEN SIZE(WxH) MM 260X330
MAX MOULD SIZE(WxH) MM 300x330
MOLD THICKNESS MM 125-220
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 32
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 13





Double Station 1000bph Fully Automatic Blowing Machine , 2l Plastic Extrusion Blow Moulding Machine 0
