U Type High Speed Blow Moulding Machine For Plastic Children Toy
SLBU series:
1: this machine is suitable for the production of 200ML 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.

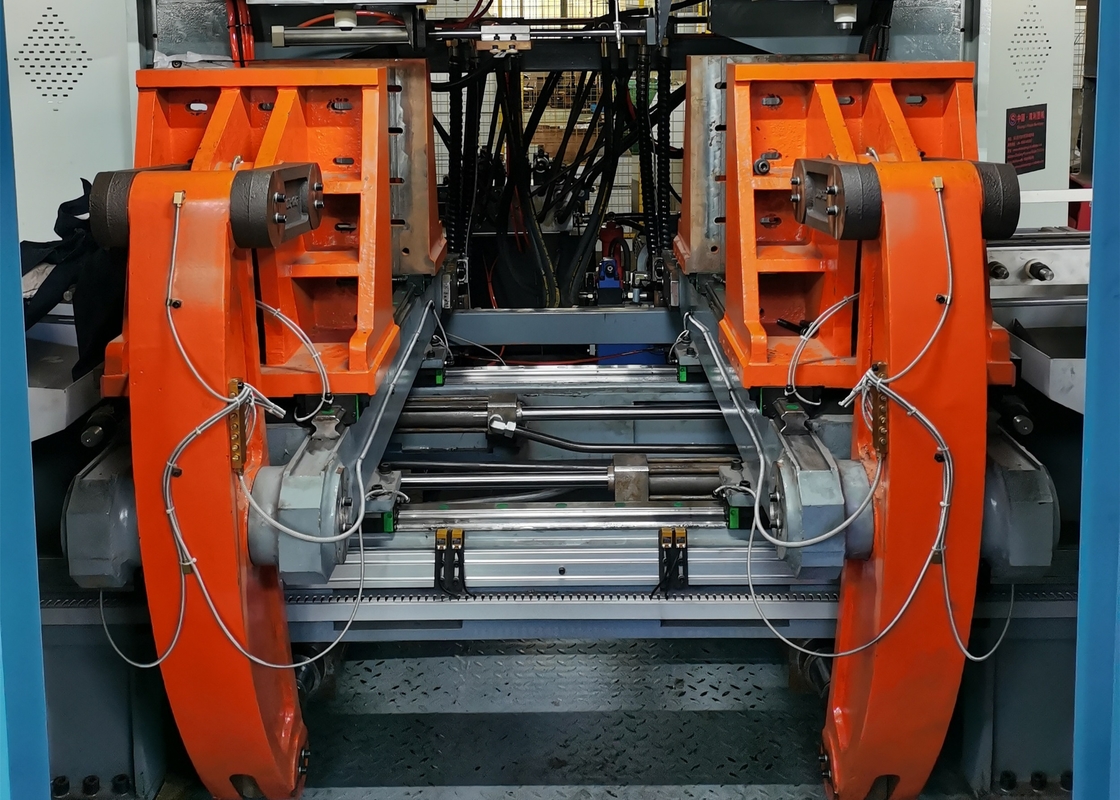

2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.
3: die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment.
4: U Type High Speed Blow Moulding Machine For Plastic Children Toy
This model system displays a total of 29 or 35 screens (depending on the model)
System tool function screen: Mainly used to prompt system contrast, device number and system time correction function.
Power-on display: When the control system is powered up, the display shows the screen.
Control main screen: After pressing the power-on display screen, the display shows the screen. This screen is the integrated control screen. Press the corresponding function key to control the corresponding function. At the same time, the heating function and motor running can be started.
SPECIFICATION | SLBU-80 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 10 |
NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
OUPUT(DRY CYCLE) | PC/HR | 950x2 |
MACHINE DIMENSION (LxWxH ) | MM | 4600x2600x2600 |
TOTAL WEIGHT | TON | 7.5T |
CLAMPING UNIT | ||
CLAMPING FORCE | KN | 86 |
PLATEN OPENING STROKE | MM | 300-600 |
PLATEN SIZE(WxH) | MM | 450x450 |
MAX MOULD SIZE(WxH) | MM | 500x450 |
MOLD THICKNESS | MM | 305-400 |
EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 80 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 120 |
BARREL HEATING POWER | KW | 20 |
NUMBER OF HEATING ZONE | ZONE | 3 |
EXTRUDER MOTOR RATED POWER | KW | 30 |
DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
POWER OF DIE HEATING | KW | 6 |
CENTER DISTANCE OF DOUBLE DIE | MM | 160 |
CENTER DISTANCE OF THREE DIE | MM | 110 |
CENTER DISTANCE OF FOUR DIE | MM | 100 |
CENTER DISTANCE OF SIX DIE | MM | 80 |
MAX DIE-PIN DIAMETER | MM | 260 |
POWER | ||
MAX DRIVE POWER | KW | 35 |
TOTAL POWER | KW | 82 |
FAN POWER OF SCREW | KW | 3.2 |
AIR PRESSURE | MPA | 0.6 |
AIR CONSUMPTION | M3/MIN | 0.5 |
AVERAGE ENERGY CONSUMPTION | KW | 22 |
