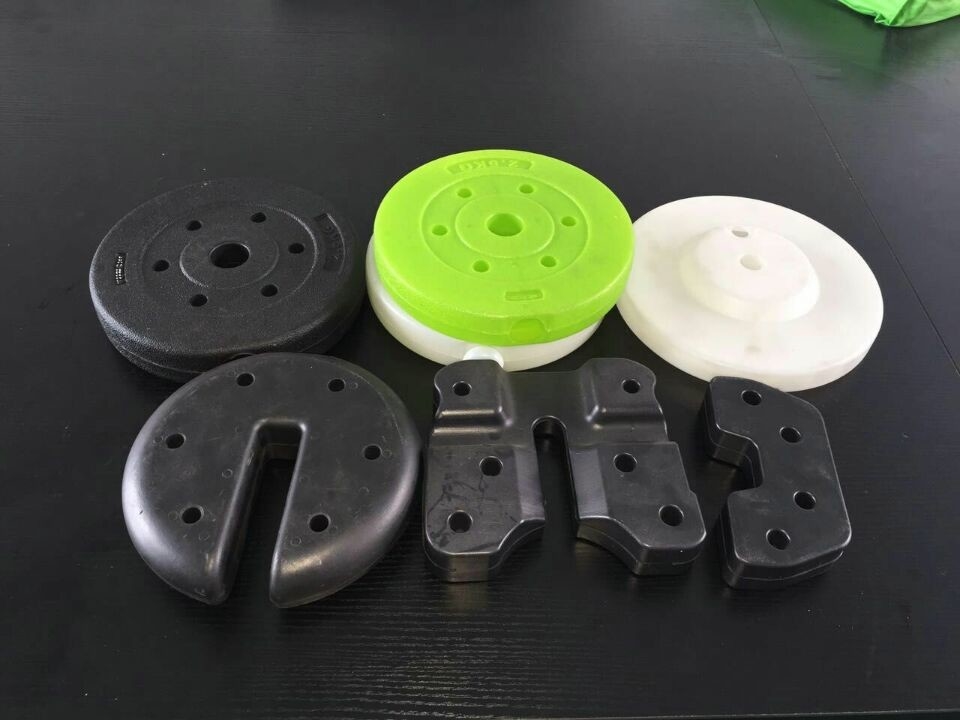

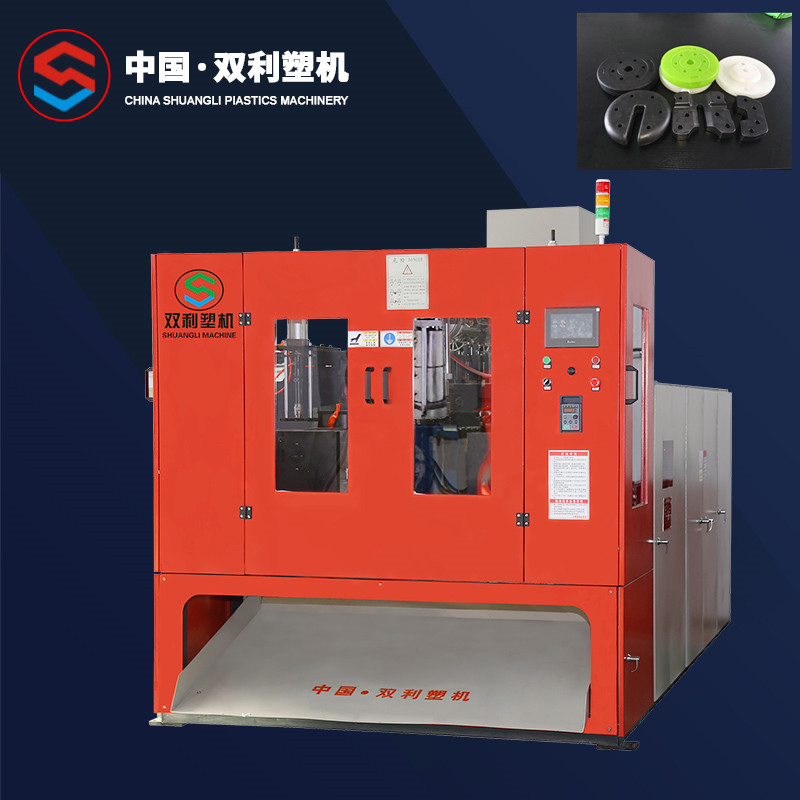

One Head One Layer Double Station Blow Molding Machine for Plastic Cover SLX-55
SLX series:
1: This machine is Multi cavities: 1~4 cavities and Designed for the PE/PP/PETG/PVC/Co-Extrusion material and other raw materials such as blow molding.
2: Series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,
stable operation, simple operation, affordable andCharacteristic
3: The working temperature of electrical devices is between 5°C and 40°C.
The electrical devices work at the highest temperature of 40°C and relative humidity of 50％RH. If the temperature is comparatively low, higher relative humidity is allowed, for example, when the temperature is 20°C, the humidity can be 90％RH.
All the spare parts for the machine are specially designed and produced for this machine only. They can definitely not be used for other purposes.
| SPECIFICATION | SLX-55 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 2 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3200x1600x2200 |
| TOTAL WEIGHT | TON | 3T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 40 |
| PLATEN OPENING STROKE | MM | 120-420 |
| PLATEN SIZE(WxH) | MM | 360X300 |
| MAX MOULD SIZE(WxH) | MM | 240x400 |
| MOLD THICKNESS | MM | 105-200 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 55 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 45 |
| BARREL HEATING POWER | KW | 12 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 7.5(11) |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 1320 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 150 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 22 |
| FAN POWER OF SCREW | KW | 0.42 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 8 |
