6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer

6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer

Products - PP Blow Moulding Machine
  • High Light

    milk bottle PP Blow Moulding Machine

    ,

    6 heads PP Blow Moulding Machine

    ,

    one layer milk bottle blowing machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Station
    Double
  • Product
    Plastic Milk Bottle
  • Die Head
    One Head
  • Layer
    One Layer
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer

  • 6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer
  • 6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer
  • 6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer
  • 6 Heads PP Blow Moulding Machine Milk Bottle Blowing Machine One Layer
Get Price Contact Now

One Head One Layer Double Station Blow Molding Machine for Plastic Milk Bottle SLX-55​



SLX series:



1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding with.optimized Die Head Flow Path



2: hydraulic system: optimize the hydraulic circuit design, running stable, high eficiency, low energy consumption, hydraulic components

using the international well- known brands, installation and maintenance convenient.



3 When working in the dangerous area of the auxiliary equipment, please power off the power switch of the auxiliary equipment.
Please check the auxiliary equipment regularly.
Manual control devices should be installed where dangerous areas can be clearly seen.
If the operation area of the auxiliary equipment is next to the dangerous area, please install one more Emergency Stop Button.

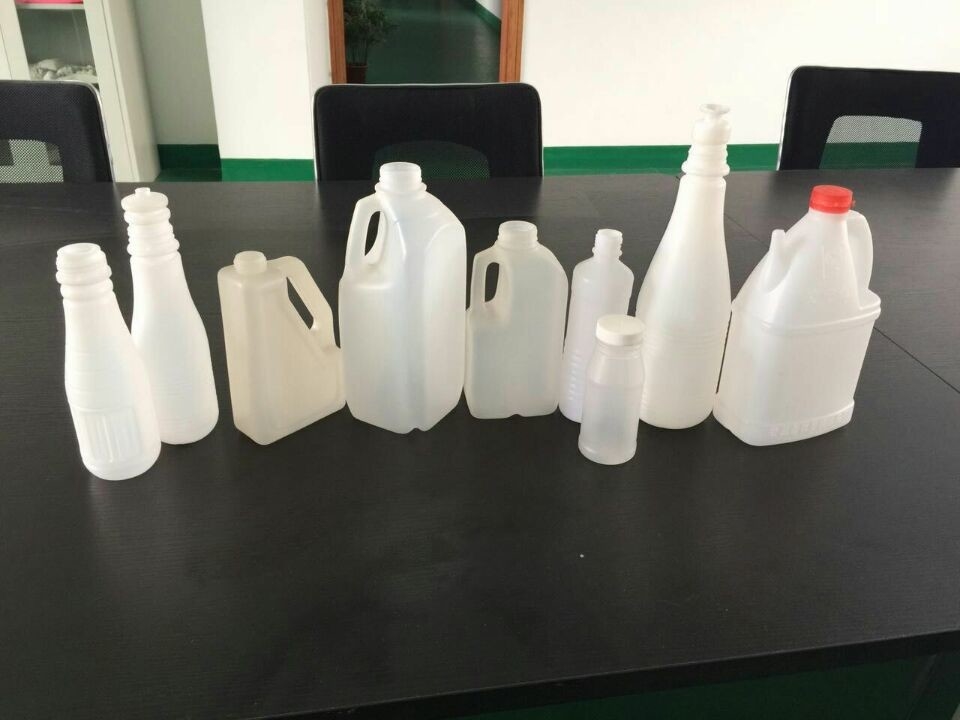

This machine is suitable for bottles, detergent bottles, oil pot, plastic toys, cosmetics bottles, beverage bottles, chemical Hardware

etc..





SPECIFICATION SLX-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3200x1600x2200
TOTAL WEIGHT TON 3T
CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-420
PLATEN SIZE(WxH) MM 360X300
MAX MOULD SIZE(WxH) MM 240x400
MOLD THICKNESS MM 105-200
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 7.5(11)
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 1320
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 22
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 8
