Kid Toy PP Blow Moulding Machine 1000bph 2l ABS Molding

Kid Toy PP Blow Moulding Machine 1000bph 2l ABS Molding

  • High Light

    kid toy PP Blow Moulding Machine

    ,

    1000bph PP Blow Moulding Machine

    ,

    2l ABS blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Station
    Double
  • Product

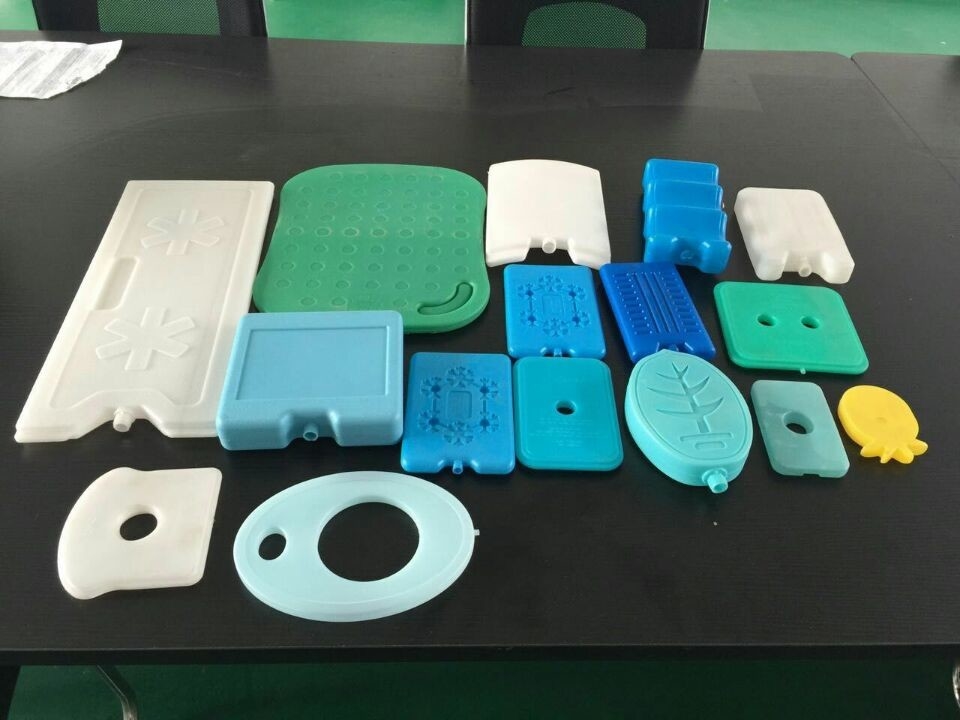

    Plastic Child Or Kid Toys
  • Speed
    High
  • Die Head
    One
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Kid Toy PP Blow Moulding Machine 1000bph 2l ABS Molding

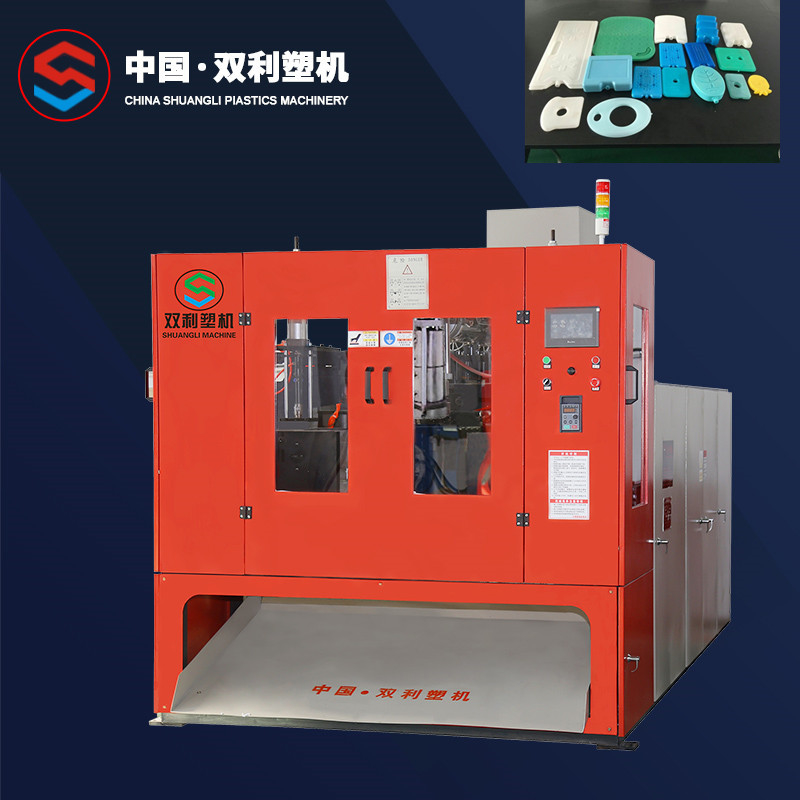

One Head One Layer Double Station Blow Molding Machine for Plastic Child or Kid Toys SLX-55​



SLX series:





1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.



2: SLX series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,

stable operation, simple operation, affordable and

Characteristic



3: If the equipment is installed in a comparatively high place, please take measures to prevent objects from falling.

Requirement of disassembling the auxiliary equipment
When disassembling, please power off the power switch of the machine.
If the operation is carried out near the hot area, do it until the hot area cools down.
After disassembling, please reset the safety devices to guarantee the safety grade of the machine.
Please check the machine carefully after this work is done before starting the machine.
Only when the entire above requirement is satisfied, the auxiliary device can be operated.



SPECIFICATION SLX-55
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3200x1600x2200
TOTAL WEIGHT TON 3T

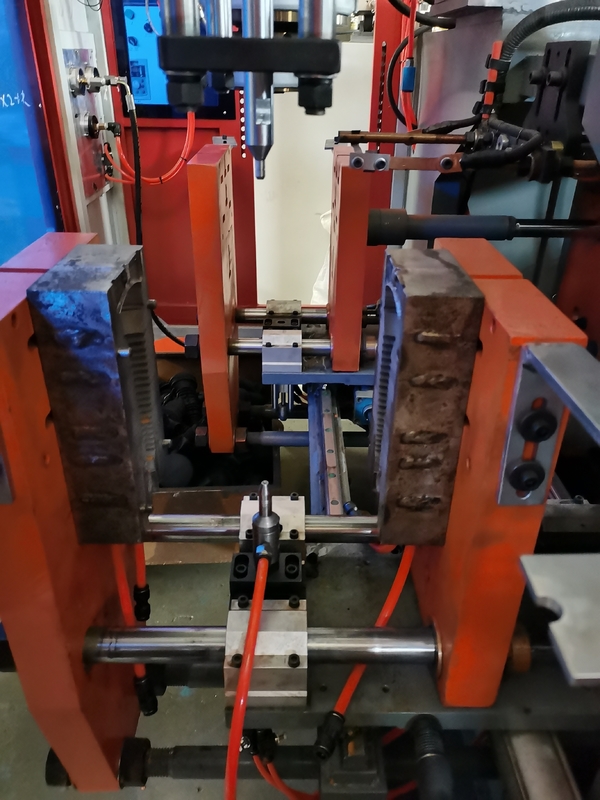

CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-420
PLATEN SIZE(WxH) MM 360X300
MAX MOULD SIZE(WxH) MM 240x400
MOLD THICKNESS MM 105-200

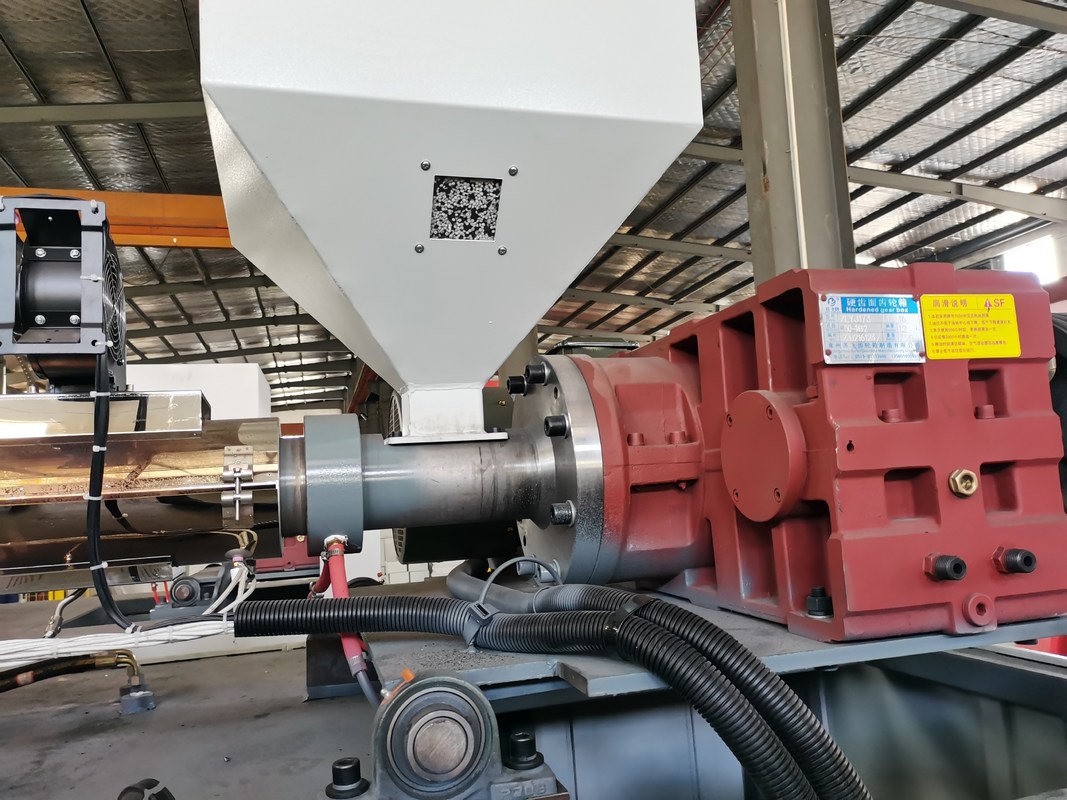

EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 7.5(11)
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 1320
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 22
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 8
