High Speed Tie Bar Single Station Blow Molding Machine Water Pot PP Moulding

High Speed Tie Bar Single Station Blow Molding Machine Water Pot PP Moulding

Products - PP Blow Moulding Machine
  • High Light

    SHUANGLI eva single station blow molding machine

    ,

    eva single station blow molding machine SHUANGLI

    ,

    SLX-55 eva single station blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    2L
  • Station
    Double
  • Product

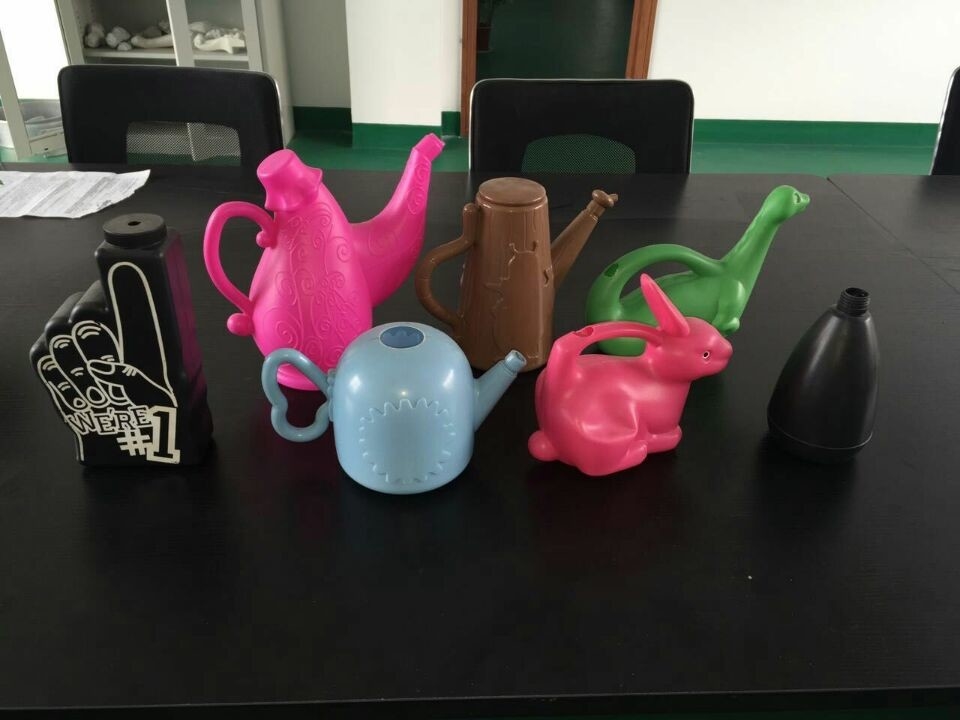

    Plastic Water Pot
  • Speed
    High Speed
  • Machine Type
    Tie Bar
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-55
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

High Speed Tie Bar Single Station Blow Molding Machine Water Pot PP Moulding

  • High Speed Tie Bar Single Station Blow Molding Machine Water Pot PP Moulding
  • High Speed Tie Bar Single Station Blow Molding Machine Water Pot PP Moulding
Get Price Contact Now

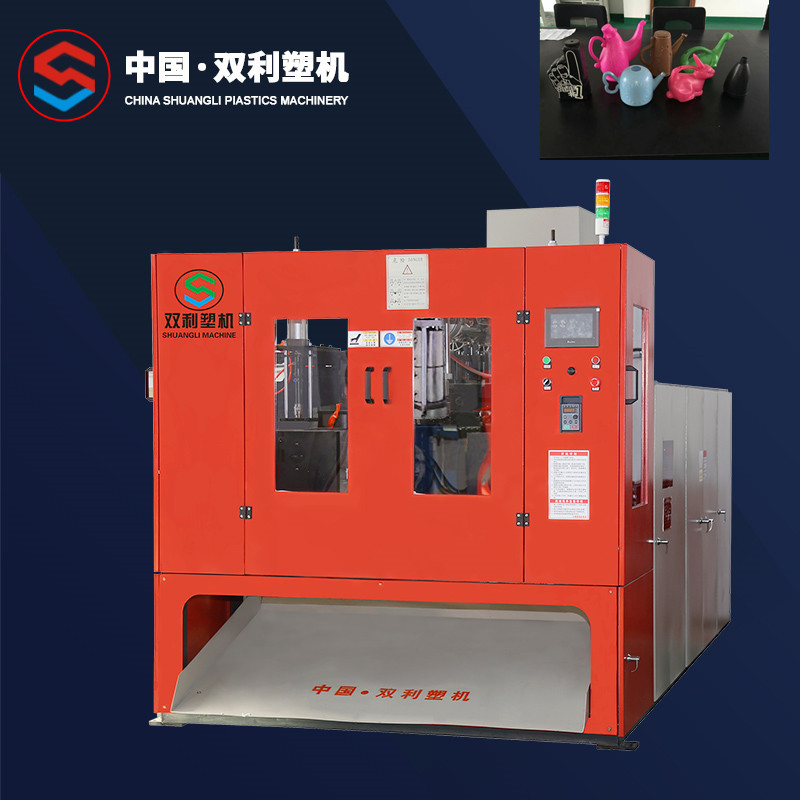

One Head One Layer Double Station Blow Molding Machine for Plastic Water Pot SLX-55



Requirement of installing the auxiliary equipment without drives
When installing auxiliary equipment, please power off the machine.
When installing or disassembling the equipment, if the power switch can not be powered off, please install circuit or hydraulic, mechanic devices to ensure that there is no dangerous action of the machine when operating.
Before using the equipment, please fix the auxiliary equipment firmly.





SPECIFICATION SLX-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3200x1600x2200
TOTAL WEIGHT TON 3T
CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-420
PLATEN SIZE(WxH) MM 360X300
MAX MOULD SIZE(WxH) MM 240x400
MOLD THICKNESS MM 105-200
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 7.5(11)
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 1320
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 22
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 8



SLX series:



1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.



2: This machine is suitable for bottles, detergent bottles, oil pot, plastic toys, cosmetics bottles, beverage bottles, chemical Hardware

etc..
