Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle

Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle

Products - PP Blow Moulding Machine
  • High Light

    Threaded Parts PP Blow Molding Machine

    ,

    5l PP blow molding machine

    ,

    ABS blowing machine for plastic bottle

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Station
    Double
  • Product
    Plastic Threaded Part
  • Layer
    One
  • Die Head
    One
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle

  • Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle
  • Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle
  • Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle
  • Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle
Get Price Contact Now

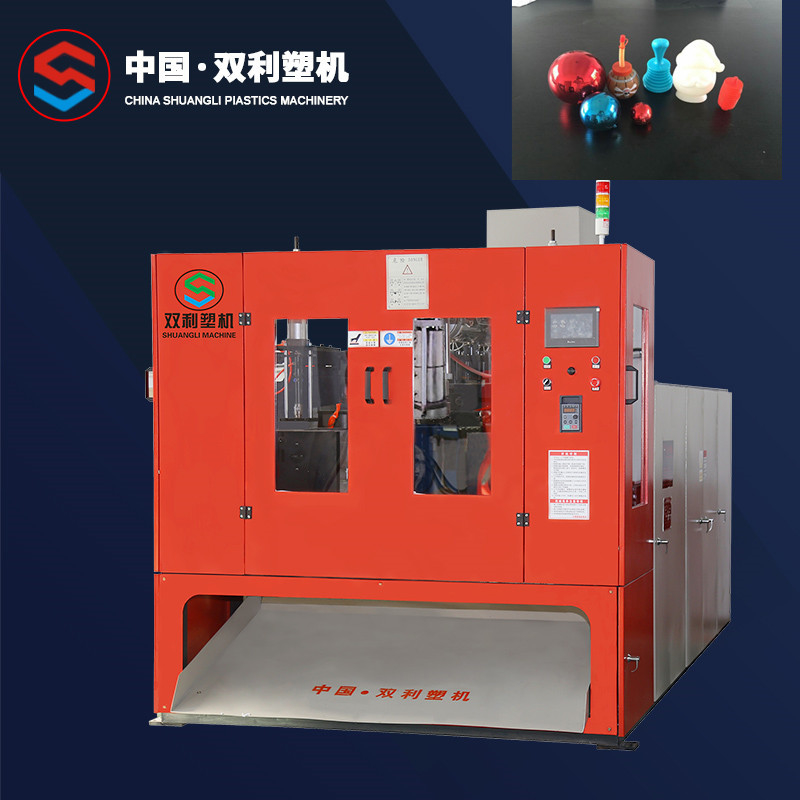

​One Layer One Head  Double Station Blow Molding Machine for Plastic Threaded Part SLX-65







SLX series:



1: SLX series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,

stable operation, simple operation, affordable and Characteristic



2  Visual inspection

The machine is easy to appear damage phenomenon during the shipment, therefore, carefully inspect the machine to see whether there is damage on the appearance of the machine. If there is, please contact the Business Department and the nearest local office of our company. If you lived abroad, contact our nearest local office or agent.





.

SPECIFICATION SLX-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 950x2
MACHINE DIMENSION (LxWxH ) MM 3800x1800x2600
TOTAL WEIGHT TON 3.8T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 170-520
PLATEN SIZE(WxH) MM 450x400
MAX MOULD SIZE(WxH) MM 330x500
MOLD THICKNESS MM 175-250
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11(15)
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 260
POWER 　
MAX DRIVE POWER KW 26
TOTAL POWER KW 32
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.5
AVERAGE ENERGY CONSUMPTION KW 13





Threaded Parts 5l PP Blow Molding Machine ABS Blowing Machine For Plastic Bottle 0
