Ningbo Shuangde Tianli Machinery Manufacturing Co., Ltd. 86--13566335186
5l PP Blow Moulding Machine

5l PP Blow Moulding Machine

Products - PP Blow Moulding Machine
  • High Light

    5l PP Blow Moulding Machine

    ,

    2 layer PP Blow Moulding Machine

    ,

    double station medicine bottle blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Station
    Double
  • Product
    Plastic Medical Bottle
  • Speed
    High
  • Layer
    1-2 Layers
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

5l PP Blow Moulding Machine

  • 5l PP Blow Moulding Machine
  • 5l PP Blow Moulding Machine
  • 5l PP Blow Moulding Machine
  • 5l PP Blow Moulding Machine
Get Price Contact Now

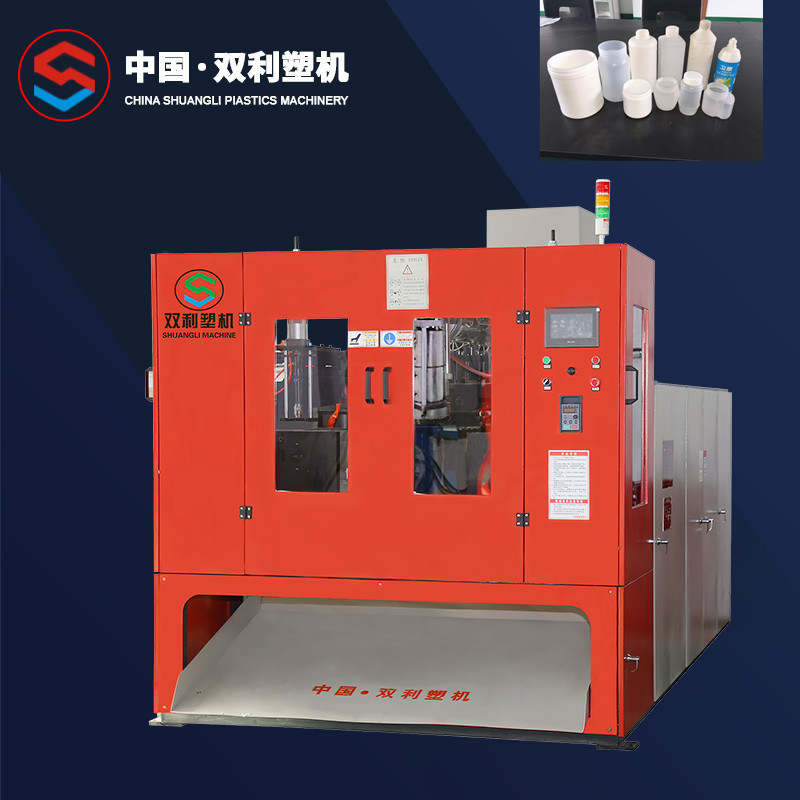

PP High Speed Double Station Blow Molding Machine for Plastic Medical Bottle SLX-65





SLX series:







1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.



2: SLX series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,

stable operation, simple operation, affordable andCharacteristic



3:Blow moulder operation of electrical devices

Please remember at any time that no matter whatever failure occurs, presses the Emergency Stop Button first. If necessary, please power off the power switch.

Before operating the machine, please make sure the door of the power distribution box keeps closed.

When electrical failure, such as: the fuse has blown, the switch bounces, occurs, please contact professional maintainers to handle it.

When the work is done or sudden blackout occurs, in order to ensure the safety and protect the electrical devices, please shut down the power switch.

If you are not a specialist, please don’t touch any electric part (power distribution box, motors, or heating rings, etc.) to avoid electric shock.





SPECIFICATION SLX-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 950x2
MACHINE DIMENSION (LxWxH ) MM 3800x1800x2600
TOTAL WEIGHT TON 3.8T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 170-520
PLATEN SIZE(WxH) MM 450x400
MAX MOULD SIZE(WxH) MM 330x500
MOLD THICKNESS MM 175-250
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11(15)
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 260
POWER 　
MAX DRIVE POWER KW 26
TOTAL POWER KW 32
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.5
AVERAGE ENERGY CONSUMPTION KW 13





5l PP Blow Moulding Machine 0
