65mm Double Station Blow Molding Machine

65mm Double Station Blow Molding Machine

  • High Light

    65mm double station blow molding machine

    ,

    glue bottle double station blow molding machine

    ,

    5000ml PP bottle blowing machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Station
    Double
  • Clamping Force
    65KN
  • Platen Size
    450x400MM
  • Screw
    65MM
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLX-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

65mm Double Station Blow Molding Machine

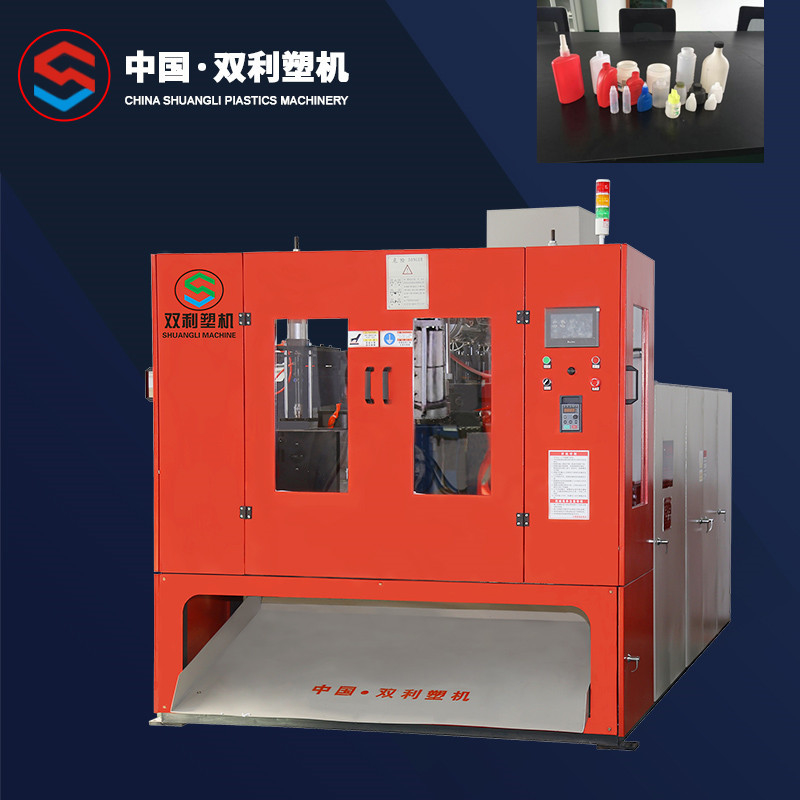

PP High Speed Double Station Blow Molding Machine for Plastic Glue Bottle SLX-65

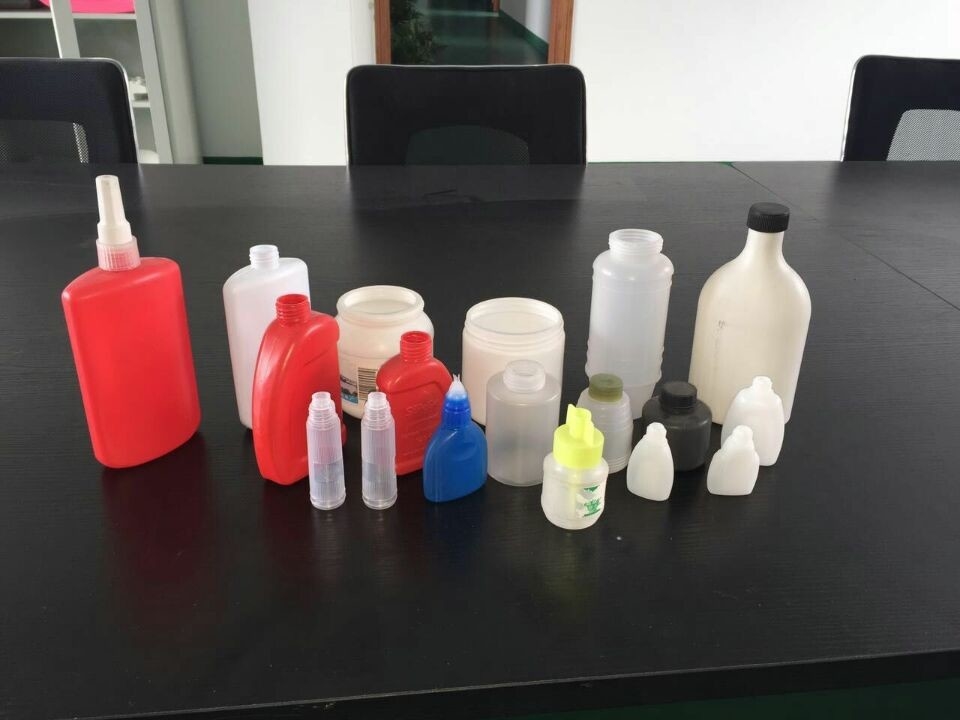

Shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 5000ml.



SLX series:

1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.



2: SLX series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,

stable operation, simple operation, affordable andCharacteristic



3: Blow moulder maintenance and operations
Before maintenance, please shut down the power switch. Put a plate reading “No Powering On” in an outstanding place near the power switch.
Check the safety devices regularly. If the action of the safety devices is unstable or they don’t act at all, please repair them immediately.
Tools, after using it, should be put back to where they should be put. Don’t leave them on the machine.



SPECIFICATION SLX-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 950x2
MACHINE DIMENSION (LxWxH ) MM 3800x1800x2600
TOTAL WEIGHT TON 3.8T
CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 170-520
PLATEN SIZE(WxH) MM 450x400
MAX MOULD SIZE(WxH) MM 330x500
MOLD THICKNESS MM 175-250
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 11(15)
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 260
POWER
MAX DRIVE POWER KW 26
TOTAL POWER KW 32
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.5
AVERAGE ENERGY CONSUMPTION KW 13
