High Light
ISO bowling ball pp blow moulding machine
,CE bowling ball pp blow moulding machine
,bowling ball pp blow moulding machine slx-65
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity5L
-
StationDouble
-
ProductPlastic Bowing Bal
-
Layer2 Layer
-
Die HeadOne
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLX-65
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
High Speed Plastic Bottle Blow Molding Machine

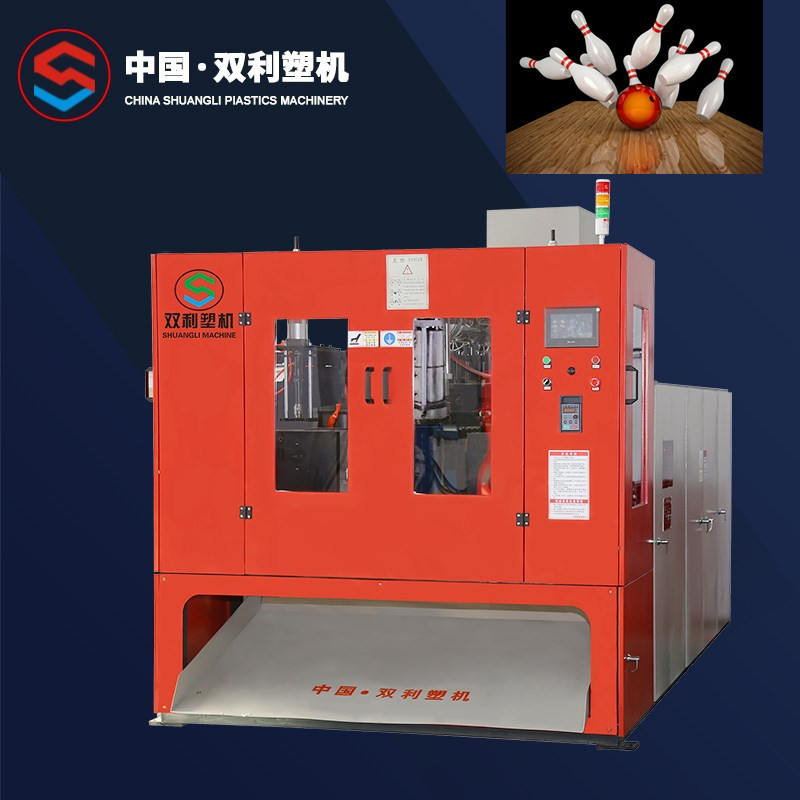

PP High Speed Double Station Blow Molding Machine for Plastic Bowing Ball SLX-65
SLX series:
1: This machine is suitable for PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.
2: SLX series are Shuangli company pioneered the AIR -HYDRAULIC combination of new type blow moulding machine, superior performance,
stable operation, simple operation, affordable and characteristic
3: blow molding machine operation
When operating the machine, please don’t put coins and something like that in your pocket, which will easily fall into the machine.
Please don’t climb the machine when it is running.
Please wear gloves and protection tools when working in the high temperature parts of the machine.
High temperature parts cover barrel component, extrusion head component, mold heating component, molded products.
| SPECIFICATION | SLX-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 950x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3800x1800x2600 |
| TOTAL WEIGHT | TON | 3.8T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 170-520 |
| PLATEN SIZE(WxH) | MM | 450x400 |
| MAX MOULD SIZE(WxH) | MM | 330x500 |
| MOLD THICKNESS | MM | 175-250 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 11(15) |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 260 |
| POWER | ||
| MAX DRIVE POWER | KW | 26 |
| TOTAL POWER | KW | 32 |
| FAN POWER OF SCREW | KW | 0.42 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.5 |
| AVERAGE ENERGY CONSUMPTION | KW | 13 |
Our products are sold all over the world, you can rest assured.
