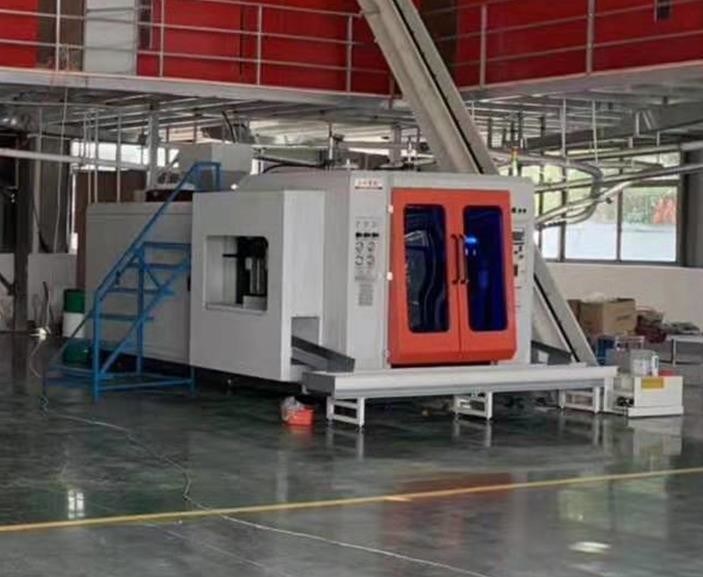

Oil Bottle High Speed Blow Molding Machine 4 Layer 6 Head 5l

High Speed 4 Layers Blow Molding Machine for Plastic Jerry can oil bottle​

SLBU series:

1: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly. 4 layers die head plastic bottle

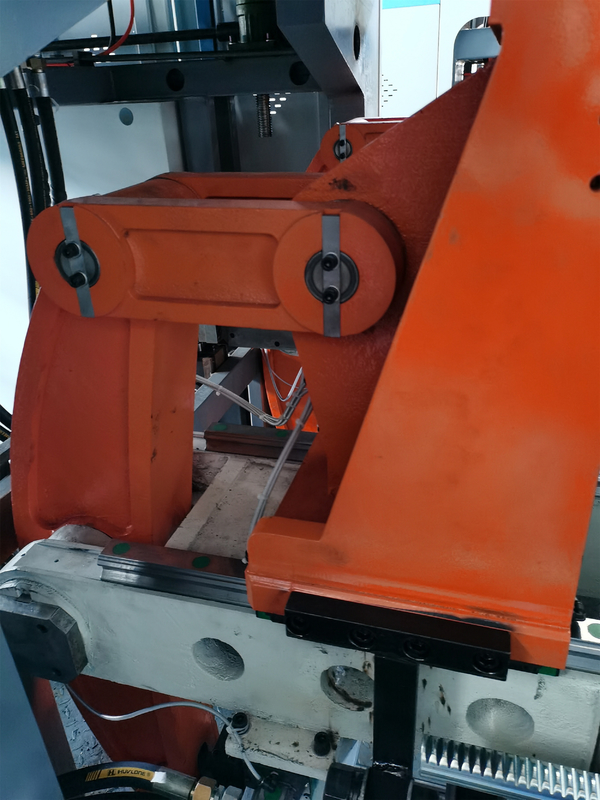

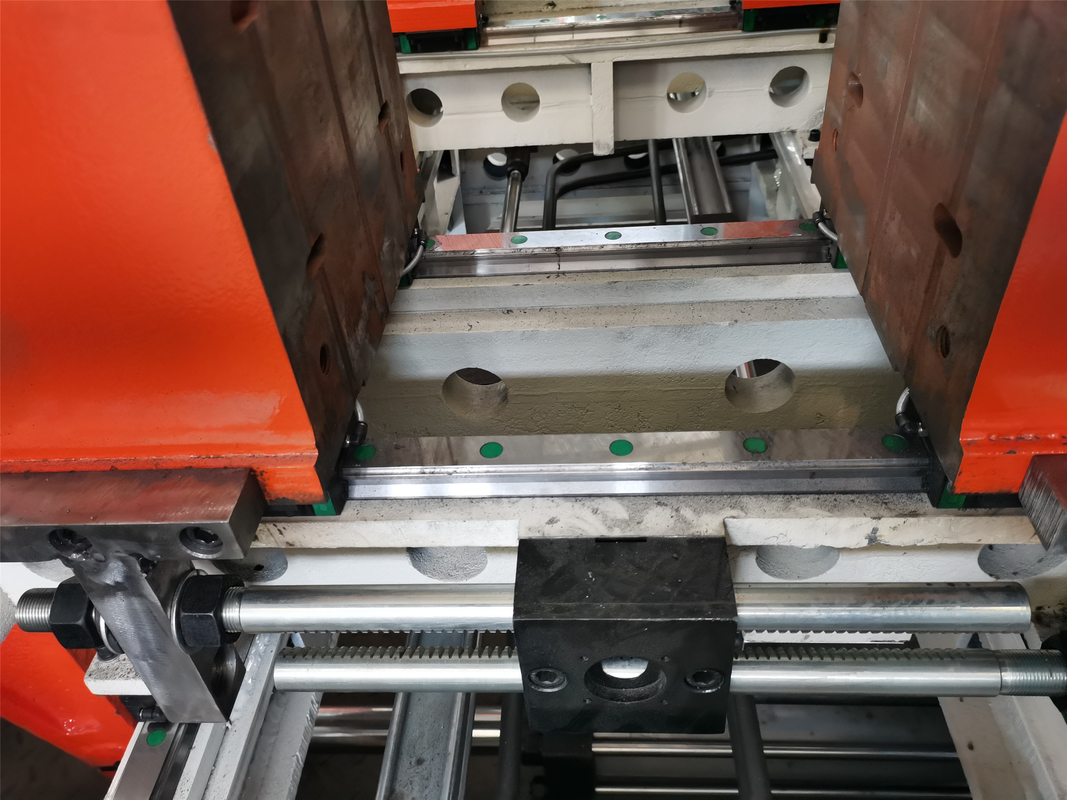

2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.

3: die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment. 1,2,3,4,6,8 die heads optional.

hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.

4. Lightweight energy saving blowing bottle system: the use of cold and hot air double combination on the bottle mouth and drive coiling cooling, to achieve the best cooling method. The air introduction device is used in the heating box to overcome air convection, ensure the equilibrium of the heating temperature of the bottle billet, and prevent the surface of the bottle billet from overheating.

5. Energy-saving sealing machine blowing valve: control valve without piping connection, compact structure, simple adjustment and maintenance, high and low pressure gas consumption is reasonable, to achieve the best energy consumption control.

6. Simple and reliable manipulator: cam connecting rod type and bottle picker, simple, coordination excellent, low manufacturing costs.Closed-loop temperature control method; Temperature feedback recovery compensation of bottle embryo; To reach the stable state of bottle embryo heating quickly.
