2 Head 1000 Bph Double Station Blow Molding Machine , Bowling Ball Plastic Blowing Machine

2 Head 1000 Bph Double Station Blow Molding Machine , Bowling Ball Plastic Blowing Machine

  • High Light

    1000 bph double station blow molding machine

    ,

    2 head double station blow molding machine

    ,

    bowling ball plastic blowing machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    Plastic Bowling Ball
  • Clamping Type
    Toggle Type -U Type
  • Die Head
    2 Heads
  • Station
    Double Station
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

2 Head 1000 Bph Double Station Blow Molding Machine , Bowling Ball Plastic Blowing Machine

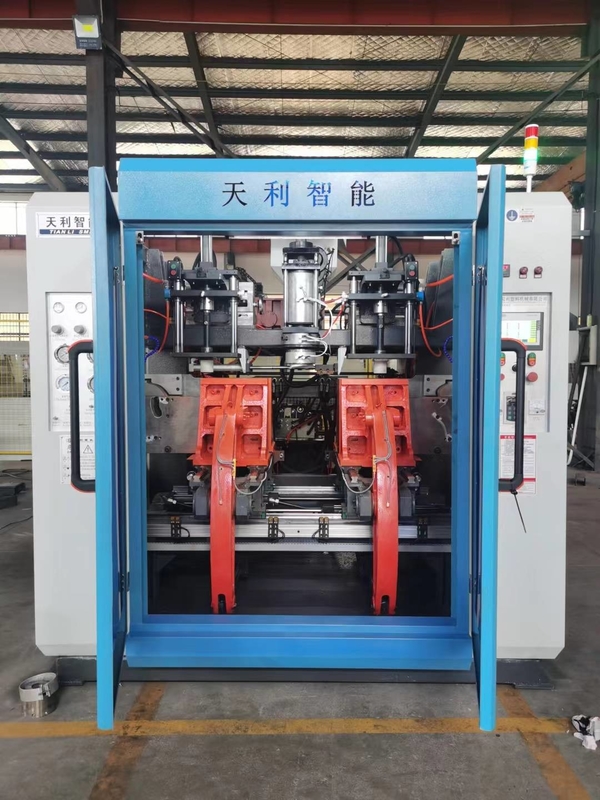

High Speed 2 Die Heads Blow Molding Machine for Plastic Bowling Ball​



SLBU series:



1: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.



2: Features of the automatic blow moulding equipment in its own design and application:
 Reasonable design and fully automatic control, greatly reducing power consumption and manpower;
Automatic tube blank system;
Infrared preheating heating box to preheat the tube blank;
The automatic blow moulding equipment production process is fully automated, with the advantages of less investment, quick effect, convenient operation and maintenance.







SPECIFICATION SLBU-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
