200ml 3 Head Shampoo Bottle Blow Molding Machine Double Station Automatic PE
-
High Light
3 head shampoo bottle blow molding machine
,200ml shampoo bottle blow molding machine
,double station automatic PET blow molding machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity5L
-
ProductPlastic Shampoo Bottle
-
Clamping TypeToggle Type
-
Die Head3 Heads
-
StationDouble
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBU-65
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
200ml 3 Head Shampoo Bottle Blow Molding Machine Double Station Automatic PE
High Speed 3 Die Heads Blow Molding Machine for Plastic Shampoo Bottle
SLBU series:
1: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly. 1 die head plastic bottle
2. Blow molding machine transmission structure: a unique transmission structure of the core of the bottle billet, heating to ensure that there is no risk of reversing the billet.

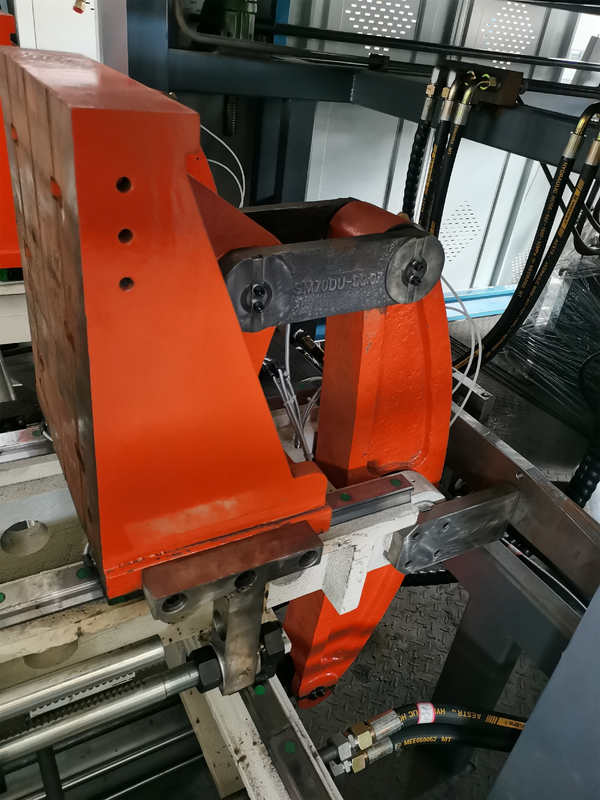

3. Flask blowing machine high-speed operation mode locking structure: The arc of the invention patent of independent intellectual property is a mode locking structure, a special mode locking supercharging system, high-speed operation stability without noise.
4 Blow molding machine hot filling bottle molding structure: When blowing hot filling bottle, a three-way circular special design distributor is used to evenly distribute the different requirements of water/oil temperature to different parts of the mold, so that the crystal degree of the bottle reaches the best results.
| SPECIFICATION | SLBU-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
| TOTAL WEIGHT | TON | 6.5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 220-520 |
| PLATEN SIZE(WxH) | MM | 400x430 |
| MAX MOULD SIZE(WxH) | MM | 460x430 |
| MOLD THICKNESS | MM | 255-280 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 15 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 180 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 50 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 18 |
