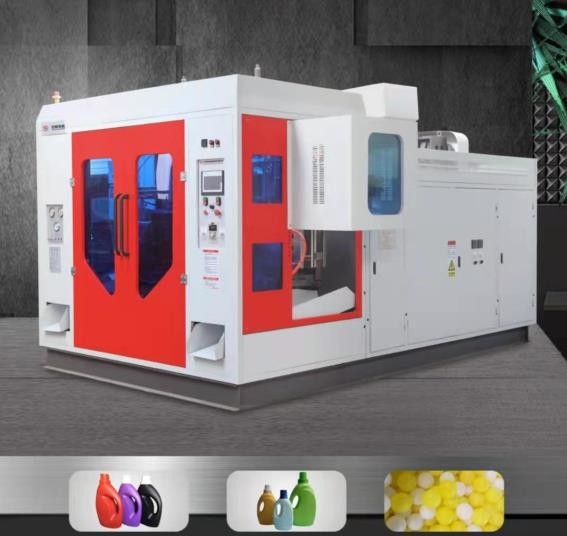

High Speed 2 Die Heads Blow Molding Machine for Plastic Cosmetics Bottle with View Stripe Line

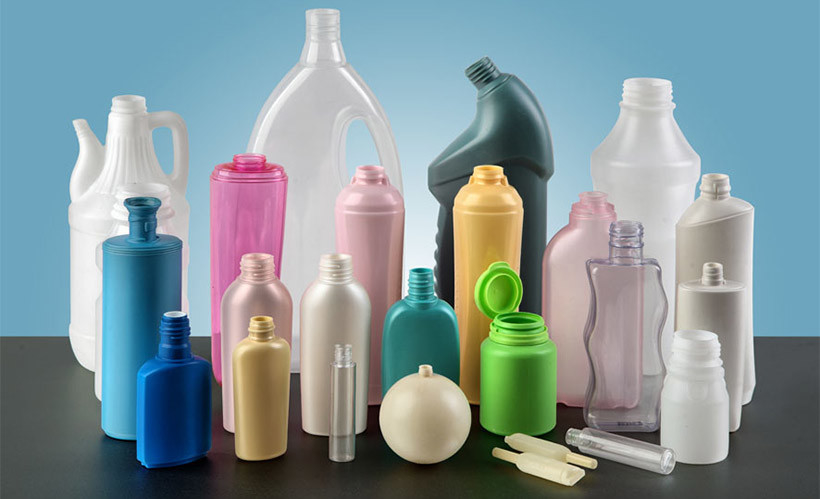

1: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly. 2 die head for plastic laundry detergent bottle.

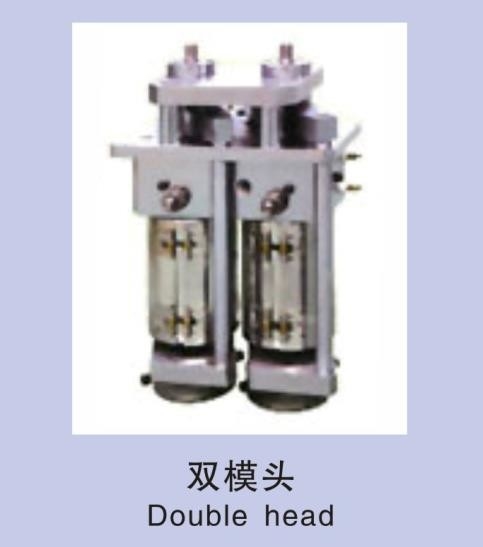

2: 2 head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment. 2 die heads is optional.
hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.
3:Check the lamp for damage and breakage. Replace it in time.
Check if the pneumatic components are leaking and the action is sensitive.
Check if the triplet is leaking abnormally, is it blocked, and the water storage capacity of the cup is too full.
When the solenoid valve of the automatic blow molding machine encounters an abnormality, it should be cleaned in time
SPECIFICATION | SLBU-65 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 5 |
NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
TOTAL WEIGHT | TON | 6.5T |
CLAMPING UNIT | ||
CLAMPING FORCE | KN | 65 |
PLATEN OPENING STROKE | MM | 220-520 |
PLATEN SIZE(WxH) | MM | 400x430 |
MAX MOULD SIZE(WxH) | MM | 460x430 |
MOLD THICKNESS | MM | 255-280 |
EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 65 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 70 |
BARREL HEATING POWER | KW | 15 |
NUMBER OF HEATING ZONE | ZONE | 3 |
EXTRUDER MOTOR RATED POWER | KW | 15 |
DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
POWER OF DIE HEATING | KW | 6 |
CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
CENTER DISTANCE OF THREE DIE | MM | 110 |
CENTER DISTANCE OF FOUR DIE | MM | 100 |
CENTER DISTANCE OF SIX DIE | MM | 80 |
MAX DIE-PIN DIAMETER | MM | 180 |
POWER | ||
MAX DRIVE POWER | KW | 18 |
TOTAL POWER | KW | 50 |
FAN POWER OF SCREW | KW | 2.4 |
AIR PRESSURE | MPA | 0.6 |
AIR CONSUMPTION | M3/MIN | 0.4 |
AVERAGE ENERGY CONSUMPTION | KW | 18 |
