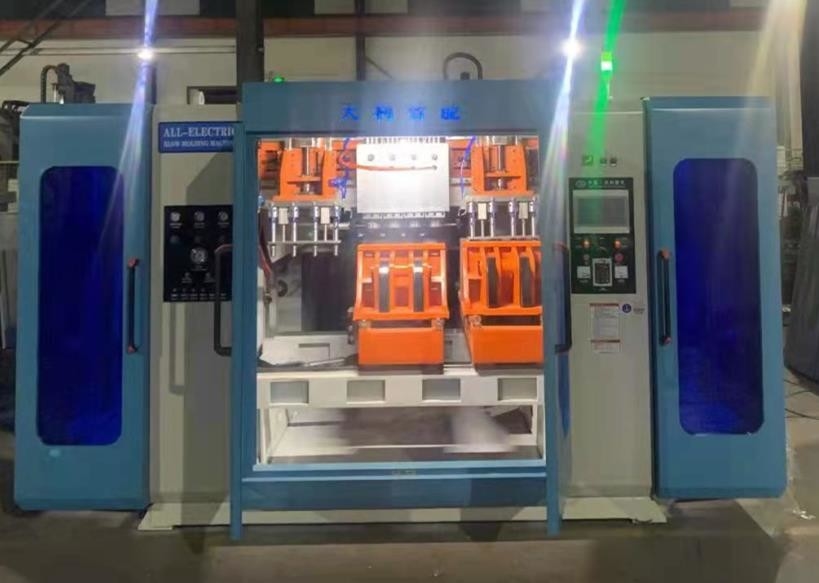

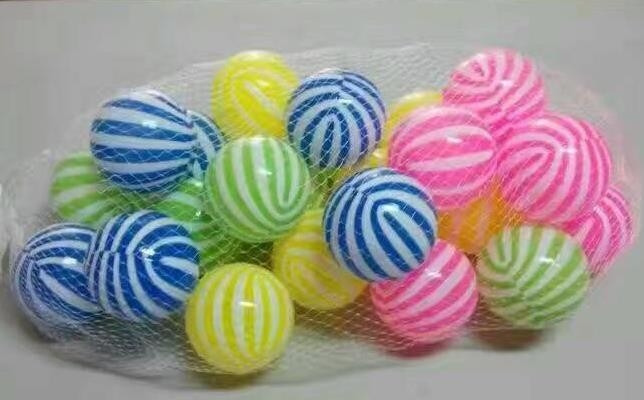

U series Double Station High Speed 1 Layer 6 Die Heads Blow Molding Machine for Plastic Sea Ball
SLBU series:
1. we will provide all the machines for the complete production according to customer’s requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
.
7: this machine is suitable for the production of 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly
SPECIFICATION | SLBU-65 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 5 |
NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
TOTAL WEIGHT | TON | 6.5T |

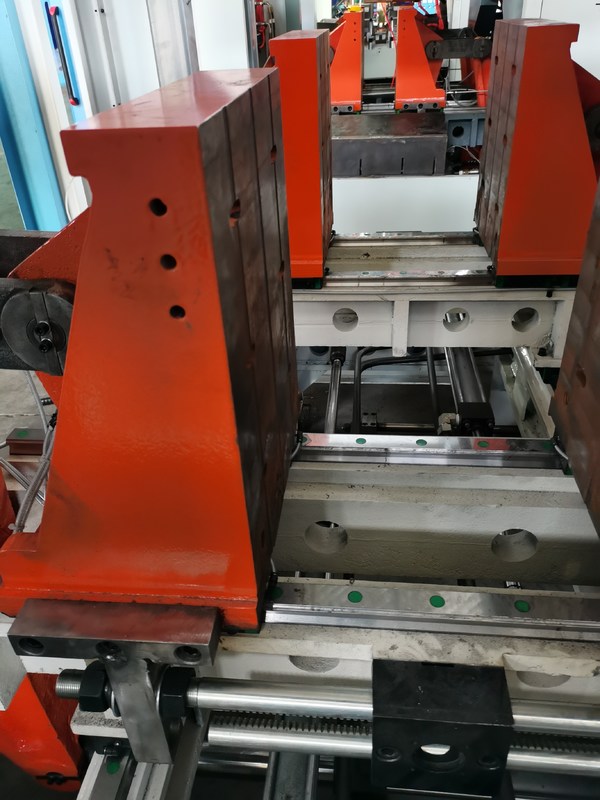

CLAMPING UNIT | ||
CLAMPING FORCE | KN | 65 |
PLATEN OPENING STROKE | MM | 220-520 |
PLATEN SIZE(WxH) | MM | 400x430 |
MAX MOULD SIZE(WxH) | MM | 460x430 |
MOLD THICKNESS | MM | 255-280 |
EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 65 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 70 |
BARREL HEATING POWER | KW | 15 |
NUMBER OF HEATING ZONE | ZONE | 3 |
EXTRUDER MOTOR RATED POWER | KW | 15 |

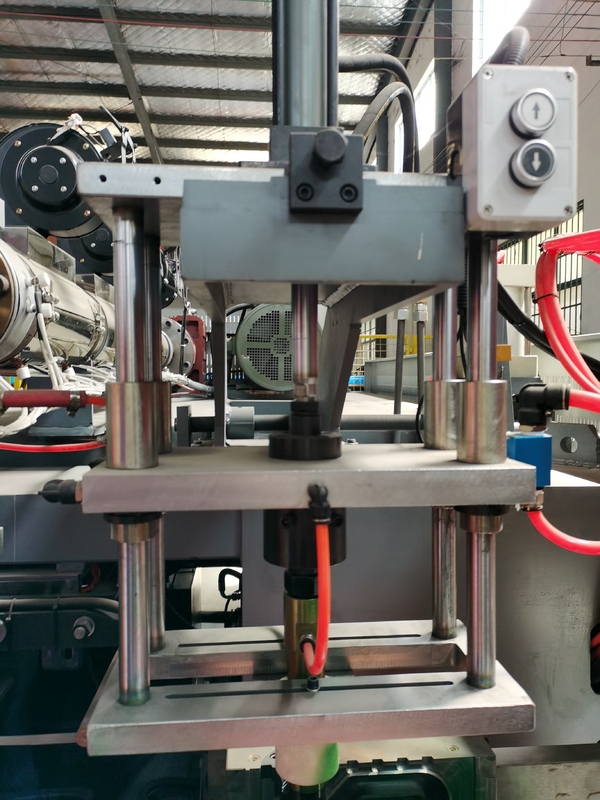

DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
POWER OF DIE HEATING | KW | 6 |
CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
CENTER DISTANCE OF THREE DIE | MM | 110 |
CENTER DISTANCE OF FOUR DIE | MM | 100 |
CENTER DISTANCE OF SIX DIE | MM | 80 |
MAX DIE-PIN DIAMETER | MM | 180 |
POWER | ||
MAX DRIVE POWER | KW | 18 |
TOTAL POWER | KW | 50 |
FAN POWER OF SCREW | KW | 2.4 |
AIR PRESSURE | MPA | 0.6 |
AIR CONSUMPTION | M3/MIN | 0.4 |
AVERAGE ENERGY CONSUMPTION | KW | 18 |
