U Type Shampoo Automatic Extrusion Blow Moulding Machine 1 Layer PP Bottle

Get Price Contact Now

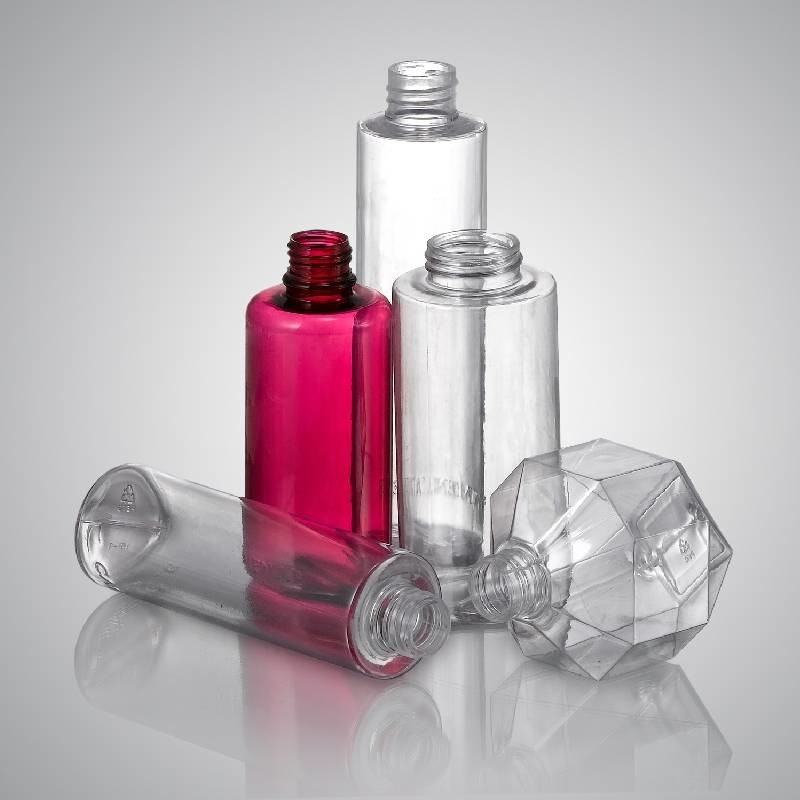

U series Double Station High Speed 1 Layer 2 Die Head Blow Molding Machine for Plastic Shampoo Bottle

SLBU series:

Our Blow Moulding Machine advantages which are:

1.Unique extrusion die heads that produce canisters extremely elegant and luxury.

2.Fast cycle time provide more productions.

3.The canisters weight are extremely stable.

4.High-efficient Energy saving solution.

5.The multilayer coextrusion up to 6 layers.

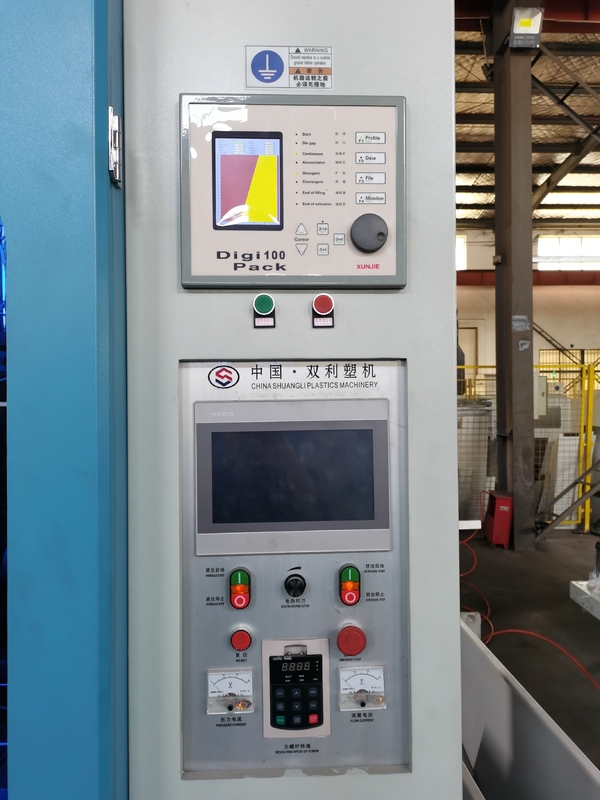

6.Fully automatic user friendly machine control system.

SPECIFICATION		SLBU-65
MATERIAL		PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY	L	5
NUMBER OF DIE HEAD	SET	1,2,3,4,6,8
OUPUT(DRY CYCLE)	PC/HR	1000x2
MACHINE DIMENSION (LxWxH )	MM	4000x2300x2200
TOTAL WEIGHT	TON	6.5T
CLAMPING UNIT
CLAMPING FORCE	KN	65
PLATEN OPENING STROKE	MM	220-520
PLATEN SIZE(WxH)	MM	400x430
MAX MOULD SIZE(WxH)	MM	460x430
MOLD THICKNESS	MM	255-280
EXTRUDER UNIT
SCREW DIAMETER	MM	65
SCREW L/D RATIO	L/D	25
MELTING CAPACITY	KG/HR	70
BARREL HEATING POWER	KW	15
NUMBER OF HEATING ZONE	ZONE	3
EXTRUDER MOTOR RATED POWER	KW	15
DIE HEAD
NUMBER OF DIE HEATING ZONE	ZONE	2-5
POWER OF DIE HEATING	KW	6
CENTER DISTANCE OF DOUBLE DIE	MM	130
CENTER DISTANCE OF THREE DIE	MM	110
CENTER DISTANCE OF FOUR DIE	MM	100
CENTER DISTANCE OF SIX DIE	MM	80
MAX DIE-PIN DIAMETER	MM	180
POWER
MAX DRIVE POWER	KW	18
TOTAL POWER	KW	50
FAN POWER OF SCREW	KW	2.4
AIR PRESSURE	MPA	0.6
AIR CONSUMPTION	M3/MIN	0.4
AVERAGE ENERGY CONSUMPTION	KW	18

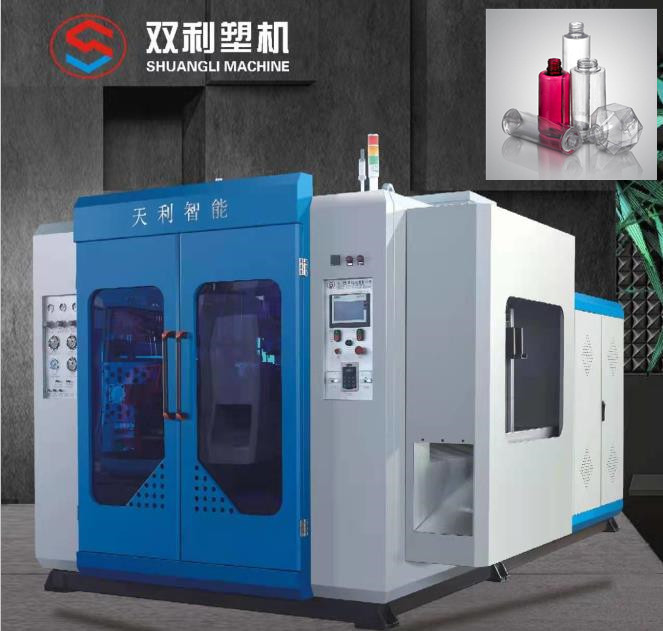

SLBU-65 u type automatic extrusion blow moulding machine
