High Speed PE/PP Bottle Blower Machine 2 Head 1 Layer Plastic Bottle Molding Machine

High Speed PE/PP Bottle Blower Machine 2 Head 1 Layer Plastic Bottle Molding Machine

  • High Light

    SHUANGLI 2 head pet bottle blower machines

    ,

    SHUANGLI 2 head pet bottle blower machine

    ,

    2 head pet bottle blower machine SHUANGLI

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product

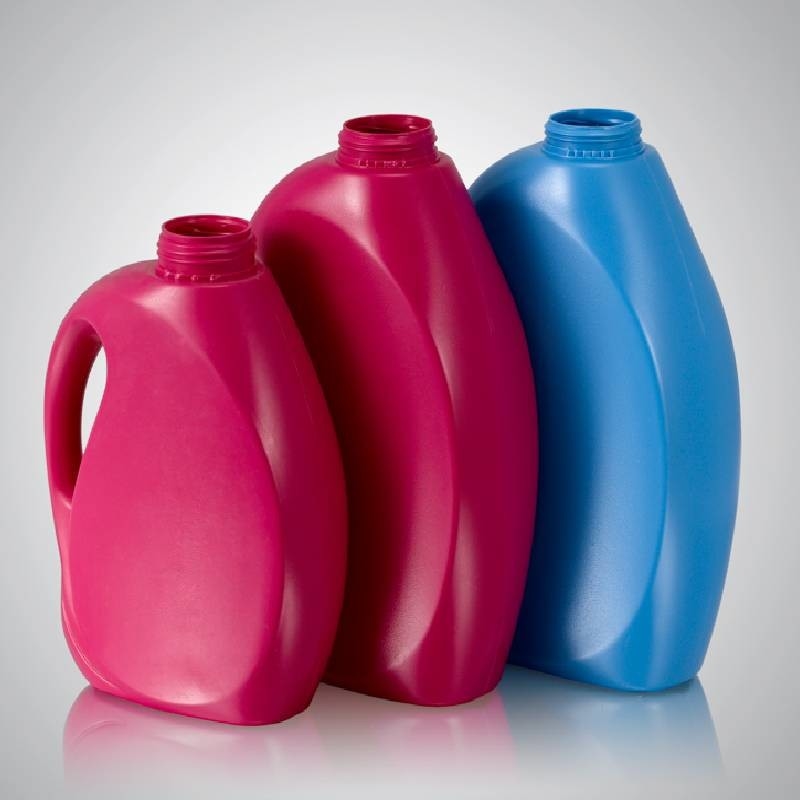

    Plastic Detergent Bottle
  • Clamping Type
    U Series Toggle Type
  • Layer
    1 Layer
  • Speed
    High Speed
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

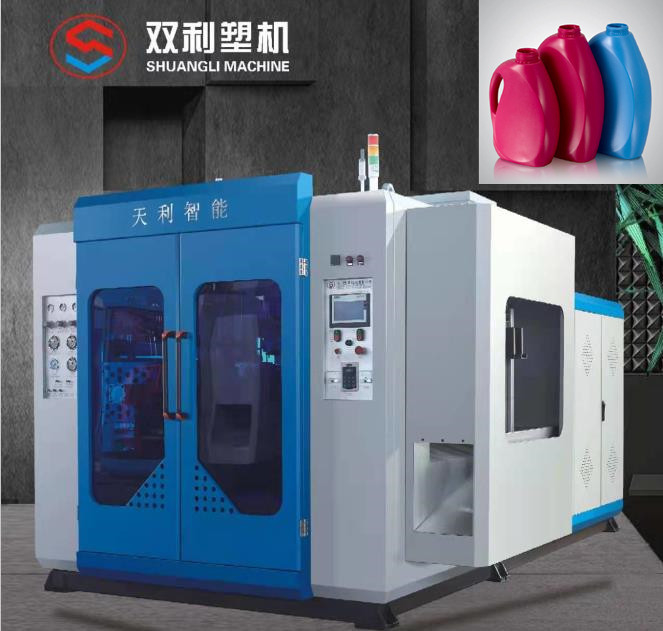

High Speed PE/PP Bottle Blower Machine 2 Head 1 Layer Plastic Bottle Molding Machine

U series Double Station High Speed 1 Layer 2 Die Head Blow Molding Machine for Plastic Detergent Bottle

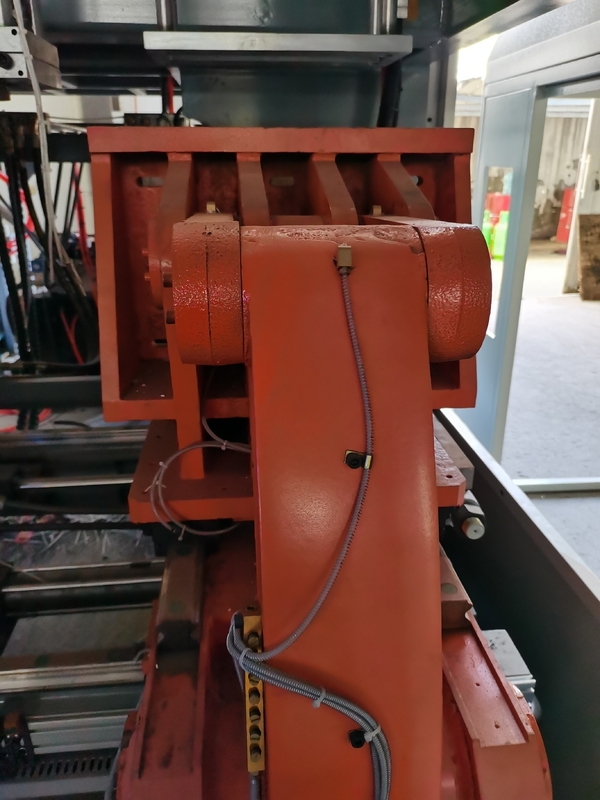

1: this machine is suitable for the production of 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.



2: In case of emergency stop for more than 10 minutes in special circumstances, you must first run at a slow speed to confirm that the discharge is normal to accelerate to normal speed.

If the raw material of the machine is PVC, when it is necessary to stop the machine, it is necessary to first add the appropriate PE material, and reduce the heating temperature of the material pipe and the die to 120 °C, and run at a slow speed to make the PE material enter the die, when the whole display When the temperature drops below 120 °C, the machine stock is drained and shut down.





SPECIFICATION SLBU-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
