4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine

4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine

Products - High Speed Blow Molding Machine
  • High Light

    4 head High Speed Blow Molding Machine

    ,

    u series High Speed Blow Molding Machine

    ,

    double station HDPE bottle blowing machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    Plastic Auto Parts
  • Clamping Type
    U Series Toggle Type
  • Layer
    1 Layer
  • Station
    Double
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine

  • 4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine
  • 4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine
  • 4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine
  • 4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine
Get Price Contact Now

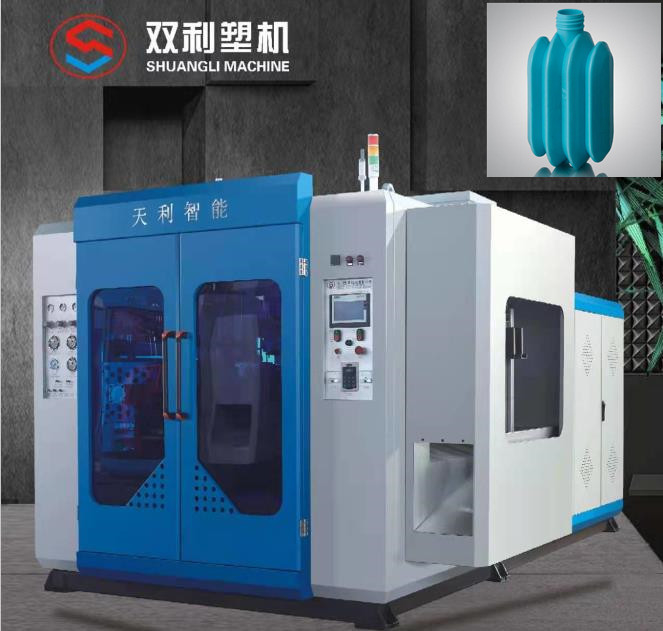

U series Double Station High Speed 1 Layer 2 Die Head Blow Molding Machine for Plastic Auto Parts



1: this machine is suitable for the production of 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.With full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.



2: After the temperature of the barrel die reaches the set temperature and is kept for about half an hour, add appropriate amount of raw materials to the hopper, start the extrusion motor, and observe that the current value of the twisted material should not exceed the rated value, and the speed of the twisted material is about 10~20HZ. After sequentially flowing out of the die mouth, the raw materials used in the product are added, and the discharge is smooth, and can be adjusted to the required rotation speed after being stabilized.

Adjust the die gap to make the discharge vertical.

Close the safety door and press the auto start button to enter the fully automatic production.







SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

4 Head High Speed Blow Molding Machine U Series , Double Station HDPE Bottle Blowing Machine 0
