Child Chair 120l ABS Blow Molding Machine Robot Accumulator
-
High Light
child chair ABS blow molding machine
,120l ABS blow molding machine
,robot accumulator moulding machine
-
MaterialPE,PP,EVA,ABS
-
Max Capacity120L
-
StationSingle
-
Clamping TypeTie Bar C Type
-
Die HeadAccmulator Type
-
RobotOptional
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-100
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

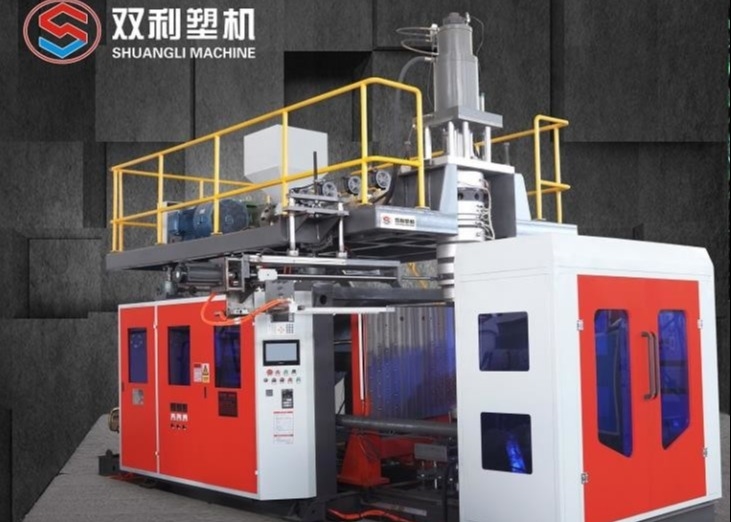

Child Chair 120l ABS Blow Molding Machine Robot Accumulator

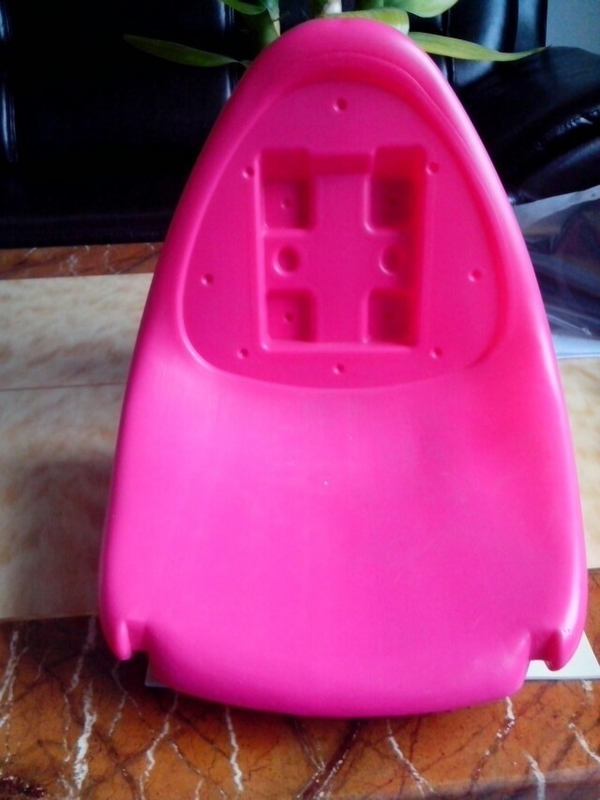

Single Station 1 Die Head Accmulator Type Plastic Blow Molding Machine For Big Size Plastic Child Chair
SLBC series: (German model)
1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.
2: Power key switch: It is the control power for turning the machine on and off.
Touch display: It is to adjust the process time, adjust the action pressure, heating temperature control, function selection, operation status monitoring, manual control, automatic control and so on.
Alarm: The alarm will give an alarm when the device fails.
Cutter heat: Controls the heat of the cutting blade on the electrothermal cutter device.
Cycle start: When the cycle start button is pressed, the device starts to run fully automatically.
Emergency stop: When the emergency stop button is pressed, the device stops automatic operation and manual operation.
Winch motor switch: It is to control the start and stop of the twister motor.
Winch motor speed switch: is to control the speed of the twisted motor
| SPECIFICATION | SLBC-100 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 120 |
| OUPUT(DRY CYCLE) | PC/HR | 360 |
| MACHINE DIMENSION (LxWxH ) | MM | 6800x3600x5200 |
| TOTAL WEIGHT | TON | 16T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 400 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1100x1100 |
| MAX MOULD SIZE(WxH) | MM | 900x1400 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 100 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 180 |
| BARREL HEATING POWER | KW | 30 |
| NUMBER OF HEATING ZONE | ZONE | 5 |
| EXTRUDER MOTOR RATED POWER | KW | 50 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 25 |
| MAX DIE-PIN DIAMETER | MM | 450 |
| POWER | ||
| MAX DRIVE POWER | KW | 70 |
| TOTAL POWER | KW | 110 |
| FAN POWER OF SCREW | KW | 4 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 42 |
| ACCUMULATOR CAPACITY | L | 12 |
