Single Head Parison Jerry Can Blow Molding Machine 300bph For Plastic Bottle
-
High Light
single head jerry can blow molding machine
,parison jerry can blow molding machine
,300bph blowing machine for plastic bottle
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity160L
-
StationSingle
-
ProductPlastic Jerry Can Oil Bottle
-
Die Head1 Head
-
Parison SystemMoog
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-120
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
Single Head Parison Jerry Can Blow Molding Machine 300bph For Plastic Bottle
Single Station One Head Blow Molding Machine for Plastic Jerry CanOil Bottle with Parison System
SLBC series: (German model)
1: optional with multi function under blowing mechanism, automatic machine to take the product of a variety of auxiliary

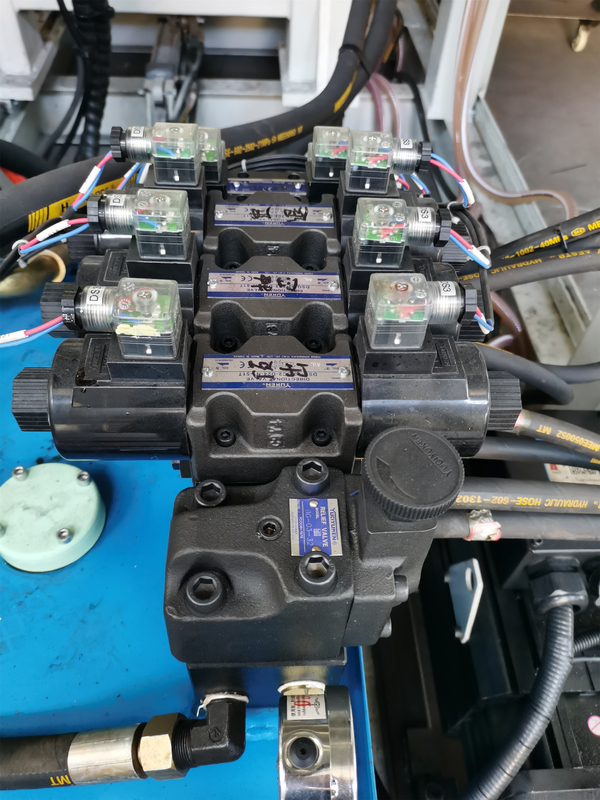

device, realize the production process is highly automated.And equipped with imported hydraulic, pneumatic and electrical parts of famous brand,

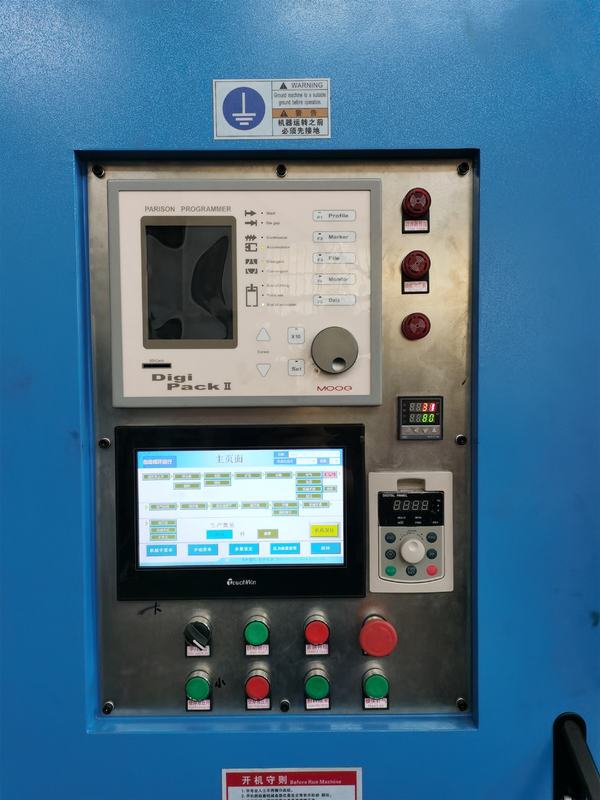

it has stable equipment performance and simple handling.with PLC SIEMENS.
2: blow molding machine
1)Before connecting the machine to the power supply, please make sure that the power supply is shut down.
2)Connect the cable to a three-phase power supply terminal.
3)Each machine should be earthed separately.
4)In order to make control system work well, please don’t let it share a power supply with other machines such as high frequency machines because the mixed wave produced by these machines will interfere the computer.
| SPECIFICATION | SLBC-120 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |

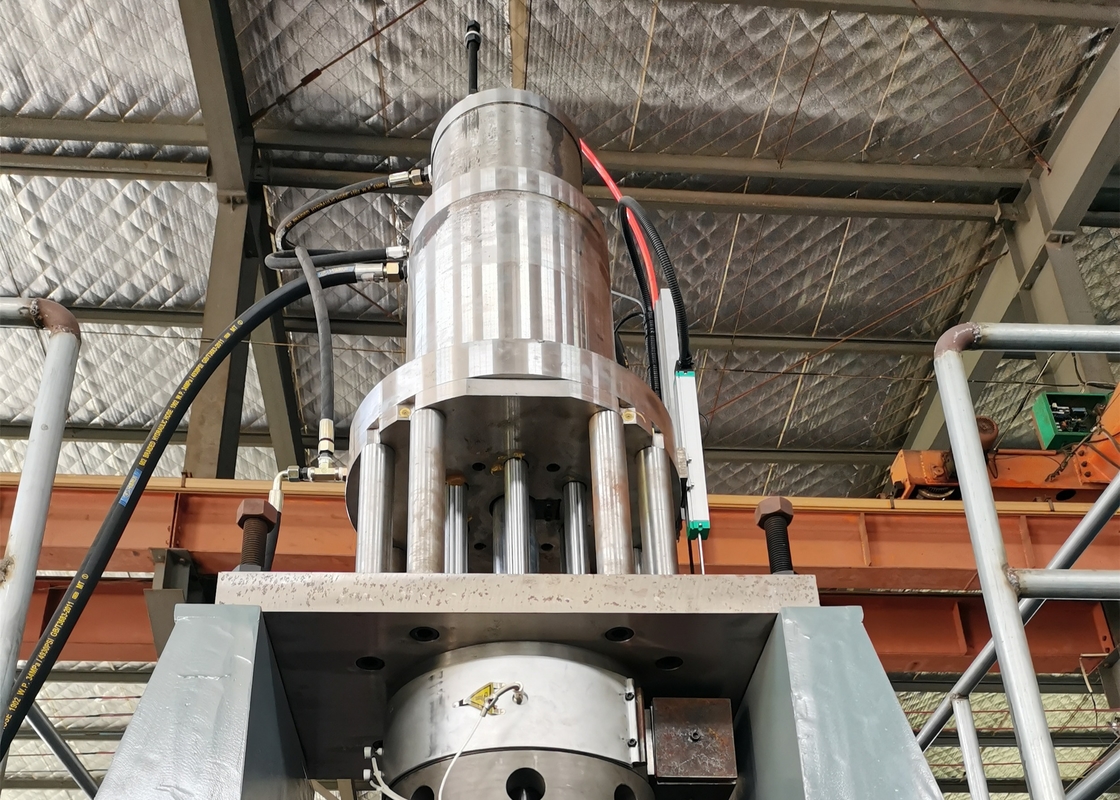

| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
