Robot 4 Layer Accumulator Blow Moulding Machine 60l Plastic Barrel
-
High Light
Robot Accumulator Blow Moulding Machine
,4 layer Accumulator Blow Moulding Machine
,60l plastic barrel blow molding machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity60L
-
StationSingle
-
Machine TypeAccmulator Type
-
Layer1-4 Layers
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-90
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
Robot 4 Layer Accumulator Blow Moulding Machine 60l Plastic Barrel

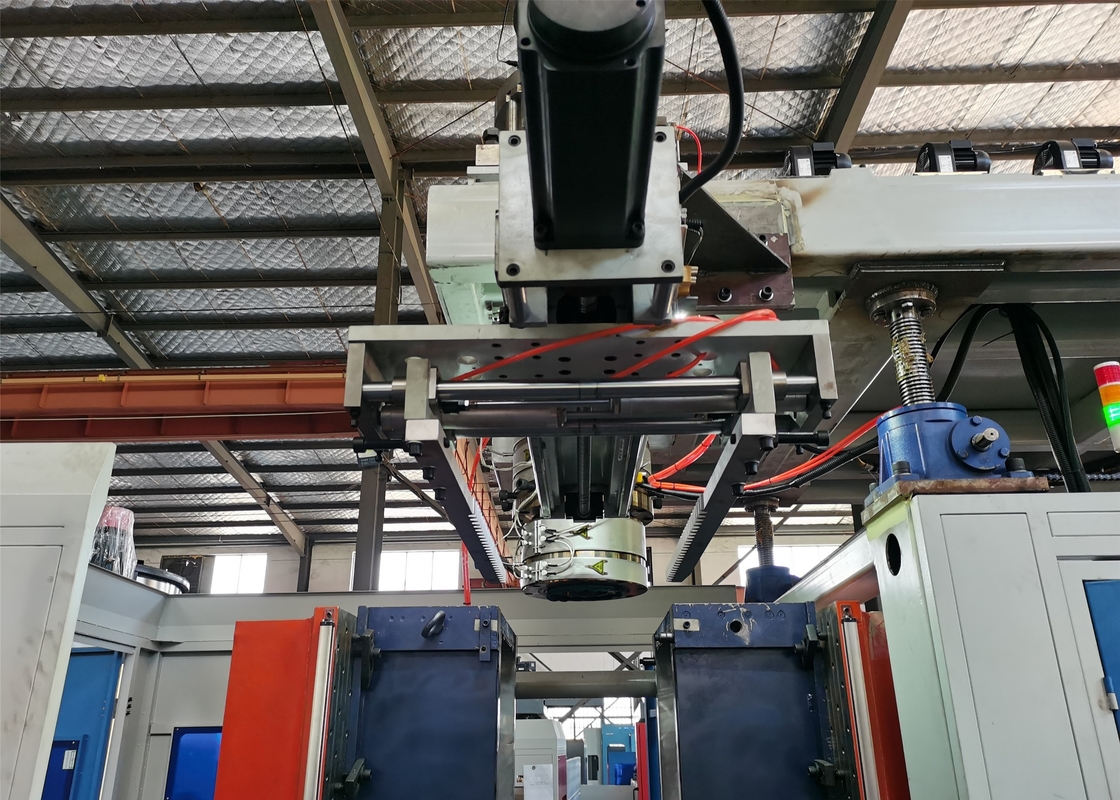

Single Station High One Head Blow Molding Machine for Plastic Chemical Barrel with Robot
SLBC series: (German model)
1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode. All parts of the machine is made by advanced numerical control equipment with high precision.
2:And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling. large opening stroke, central locking, locking force equilibrium, no deformation.
3: Operation preparation
Cleaning the blow molding machine
The uncoated components of the equipment, before delivering, are sprayed with anti-rust paint. The paint can be removed with gasoline or kerosene. Please don’t use thinner. Please pay attention to fire. Please don’t let flame approach the machine.
| SPECIFICATION | SLBC-90 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 60 |
| OUPUT(DRY CYCLE) | PC/HR | 450 |
| MACHINE DIMENSION (LxWxH ) | MM | 6300x3400x4200 |
| TOTAL WEIGHT | TON | 14T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 260 |
| PLATEN OPENING STROKE | MM | 400-1200 |
| PLATEN SIZE(WxH) | MM | 900x1000 |
| MAX MOULD SIZE(WxH) | MM | 750x1200 |
| MOLD THICKNESS | MM | 410-700 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 90 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 140 |
| BARREL HEATING POWER | KW | 20 |
| NUMBER OF HEATING ZONE | ZONE | 5 |
| EXTRUDER MOTOR RATED POWER | KW | 45 |

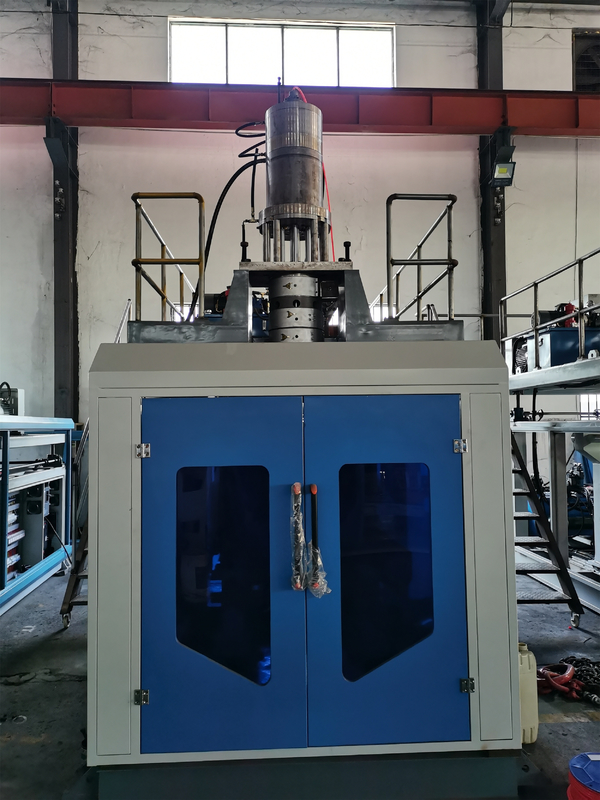

| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 4 |
| POWER OF DIE HEATING | KW | 18 |
| MAX DIE-PIN DIAMETER | MM | 400 |
| POWER | ||
| MAX DRIVE POWER | KW | 57 |
| TOTAL POWER | KW | 105 |
| FAN POWER OF SCREW | KW | 4 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 38 |
| ACCUMULATOR CAPACITY | L | 8 |
Our products are sold all over the world, you can rest assured.
