Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball

Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball

Products - Accumulator Blow Moulding Machine
  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    160L
  • Station
    Single
  • Product
    Plastic Ball
  • Type
    Accumulator Type
  • Speed
    High Speed
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC-110
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball

  • Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball
  • Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball
  • Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball
  • Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball
Get Price Contact Now

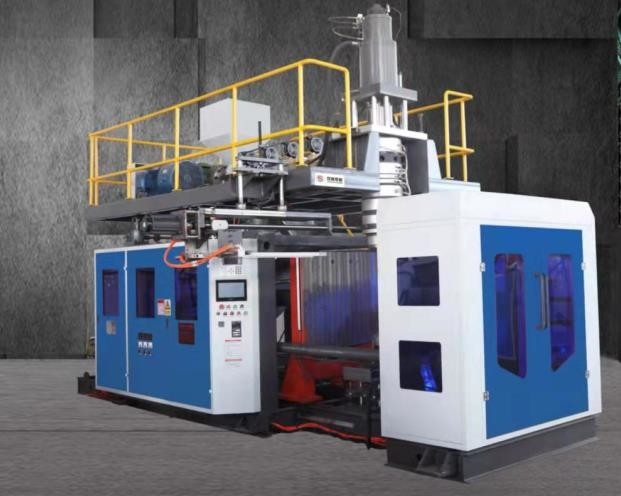

Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball







The equipment consists of safety door, frame, plasticizing system, die lifting device, mold shifting and opening and closing mechanism, hydraulic



system, water cooling system, die, air blowing device, tube cutting device, pneumatic system, automatic lubrication device, The bottle bottle



arrangement device and the electronic control system are composed.



SPECIFICATION SLBC-110
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 360
MACHINE DIMENSION (LxWxH ) MM 7500x3600x5800
TOTAL WEIGHT TON 20T
CLAMPING UNIT 　
CLAMPING FORCE KN 680
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880

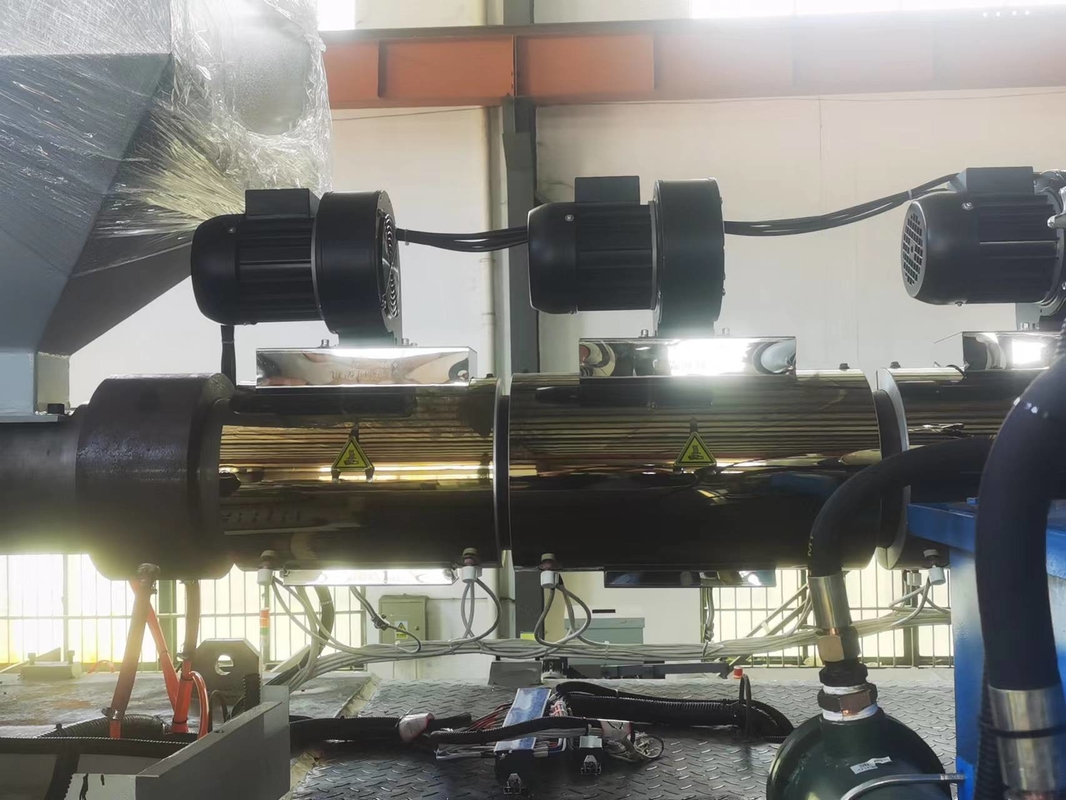

EXTRUDER UNIT 　
SCREW DIAMETER MM 110
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 220
BARREL HEATING POWER KW 36
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 75
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 35
MAX DIE-PIN DIAMETER MM 550
POWER 　
MAX DRIVE POWER KW 120
TOTAL POWER KW 130
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 56
ACCUMULATOR CAPACITY L 20



SLBC series: (German model)

linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.

 large opening stroke, central locking, locking force equilibrium, no deformation..





Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Plastic Ball 0
