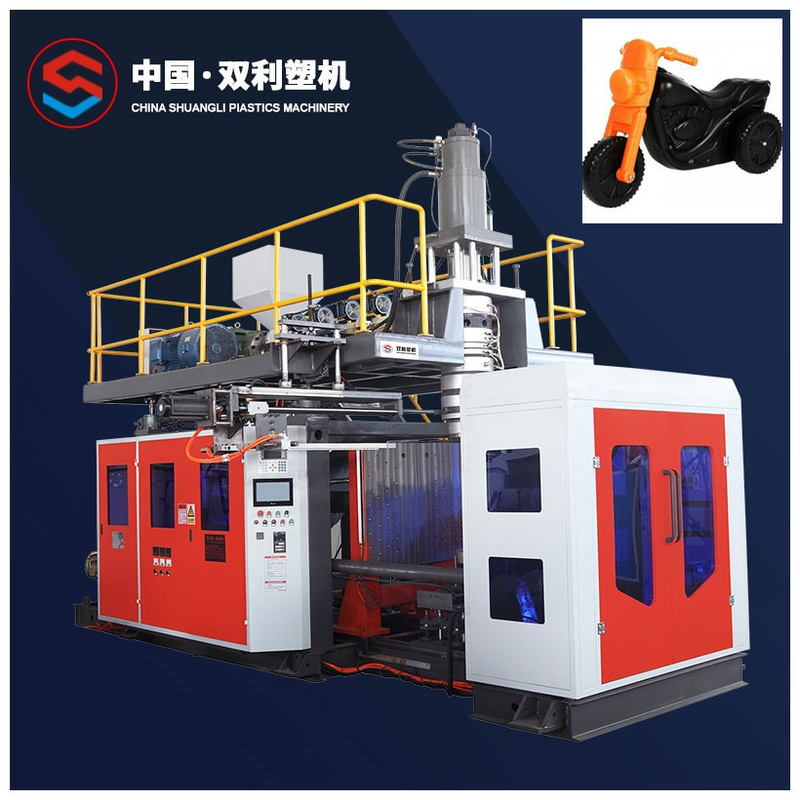

Toys Automatic PE Blow Moulding Machine 30L Auto Blowing Machine
-
High Light
600bph automatic PET blow moulding machine
,toys automatic PET blow moulding machine
,30l auto blowing machine
-
MaterialPE,PP,EVA,ABS
-
Max Capacity30L
-

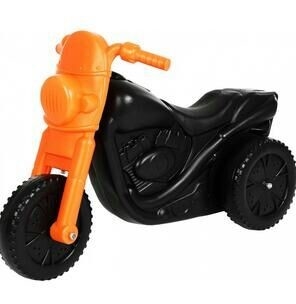

ProductPlastic Motorcycle Toys
-
Clamping TypeTie Bar
-
Die Head1 Head
-
StationSingle
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-80
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
Toys Automatic PE Blow Moulding Machine 30L Auto Blowing Machine
1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Motorcycle Toys
SLBC series: (German model)
the whole system is equipped with safety protection grating, to ensure the safety of the production process without acciden.
A relatively complete mold shifting and opening and closing mechanism must meet the following requirements:
(1) It is necessary to have sufficient clamping force and system rigidity to ensure that the compressed air inflated parison is close to the mold cavity to form the product, and no seam is formed or the product is burred.
(2) The template has sufficient area for the mold to be installed and the mold opening stroke to suit the requirements of different products or molds.
(3) The template should have an ideal shifting process during the opening and closing process, that is, the speed of movement should be changed slowly, so that the mold can be safely operated and the opening and closing speed can be improved.
(4) The opening and closing mechanism should be stable, reliable, fast and without impact when moving the mold. The mold shifting and opening and closing mechanism of the machine can meet the above requirements.
| SPECIFICATION | SLBC-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 30 |
| OUPUT(DRY CYCLE) | PC/HR | 600 |
| MACHINE DIMENSION (LxWxH ) | MM | 5300x3000x3500 |
| TOTAL WEIGHT | TON | 11T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 200 |
| PLATEN OPENING STROKE | MM | 350-850 |
| PLATEN SIZE(WxH) | MM | 750x780 |
| MAX MOULD SIZE(WxH) | MM | 600x1000 |
| MOLD THICKNESS | MM | 360-500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 16 |
| NUMBER OF HEATING ZONE | ZONE | 4 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 4 |
| POWER OF DIE HEATING | KW | 15 |
| MAX DIE-PIN DIAMETER | MM | 250 |
| POWER | ||
| MAX DRIVE POWER | KW | 42 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 32 |
| ACCUMULATOR CAPACITY | L | 6 |
Our products are sold all over the world, you can rest assured.
