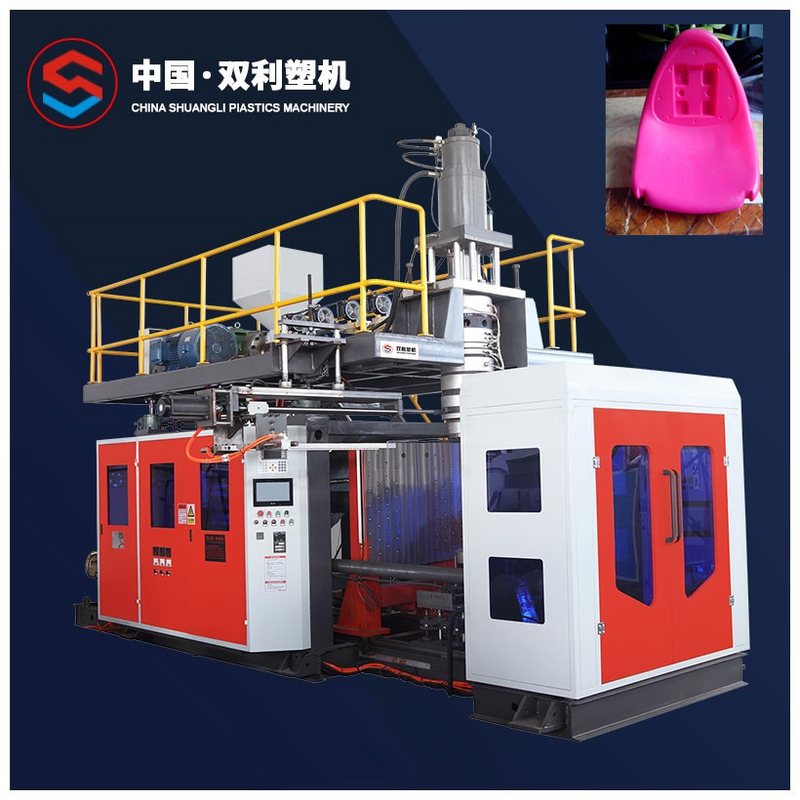

Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion

Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion

Products - Accumulator Blow Moulding Machine
  • High Light

    single station automatic bottle blow molding machine

    ,

    30l automatic bottle blow molding machine

    ,

    600 bph bottle extrusion blow molding machine

  • Material
    PE,PP,EVA,ABS
  • Max Capacity
    30L
  • Product

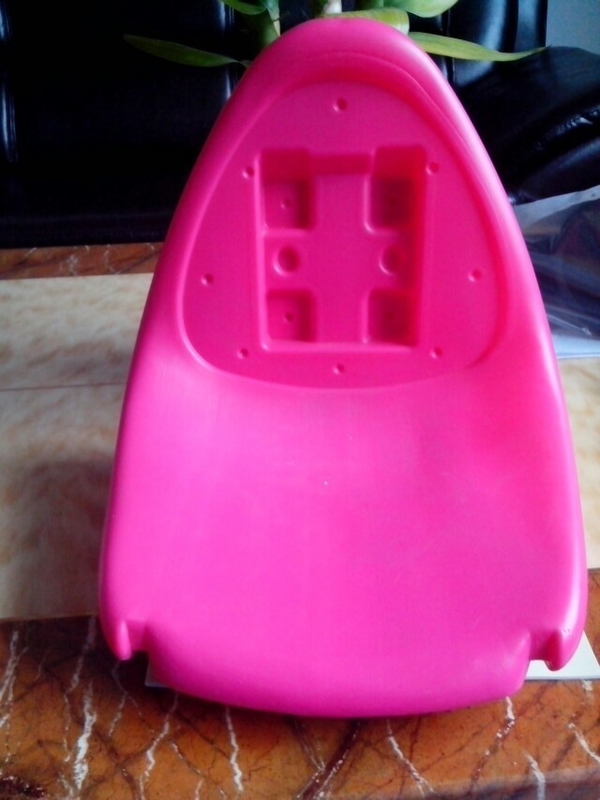

    Plastic Chair
  • Clamping Type
    Tie Bar
  • Die Head Type
    Accumulator Type
  • Screw
    80MM
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC-80
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion

  • Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion
  • Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion
  • Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion
  • Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion
Get Price Contact Now

1 Die Head Accumulator Type Single Station Plastic Blow Molding Machine For Plastic Chair



SLBC series: (German model) optional with multi function under blowing mechanism, automatic machine to take the product of a variety of



auxiliarydevice, realize the production process is highly automated.

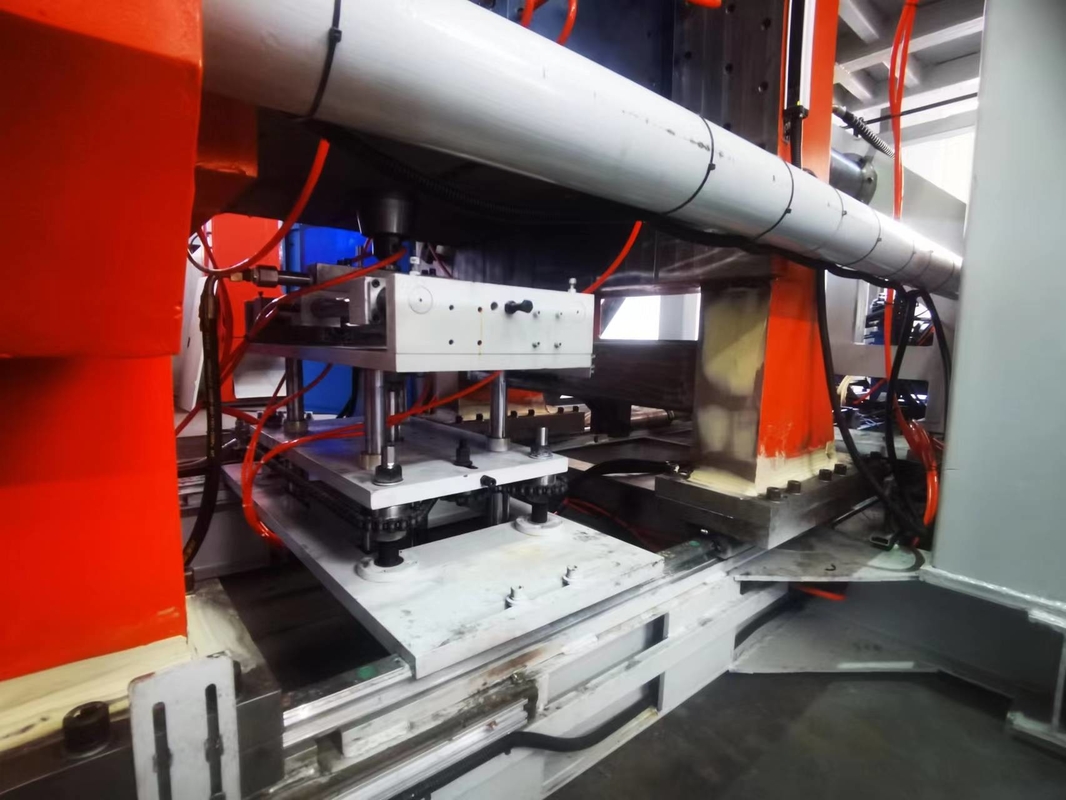

The opening and closing mechanism is a component that ensures that the mold is reliably closed and the mold is opened. Therefore, the



performance of the opening and closing mechanism is directly related to the molding quality of the product. When it is found that the mold



clamping surface is not dead (upper opening or lower opening), it can be appropriately adjusted by the nut on the lower supporting shaft.





SPECIFICATION SLBC-80
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 30
OUPUT(DRY CYCLE) PC/HR 600
MACHINE DIMENSION (LxWxH ) MM 5300x3000x3500
TOTAL WEIGHT TON 11T
CLAMPING UNIT
CLAMPING FORCE KN 200
PLATEN OPENING STROKE MM 350-850
PLATEN SIZE(WxH) MM 750x780
MAX MOULD SIZE(WxH) MM 600x1000
MOLD THICKNESS MM 360-500
EXTRUDER UNIT
SCREW DIAMETER MM 80
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 120
BARREL HEATING POWER KW 16
NUMBER OF HEATING ZONE ZONE 4
EXTRUDER MOTOR RATED POWER KW 30
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 4
POWER OF DIE HEATING KW 15
MAX DIE-PIN DIAMETER MM 250
POWER
MAX DRIVE POWER KW 42
TOTAL POWER KW 82
FAN POWER OF SCREW KW 3.2
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 32
ACCUMULATOR CAPACITY L

Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion 0
