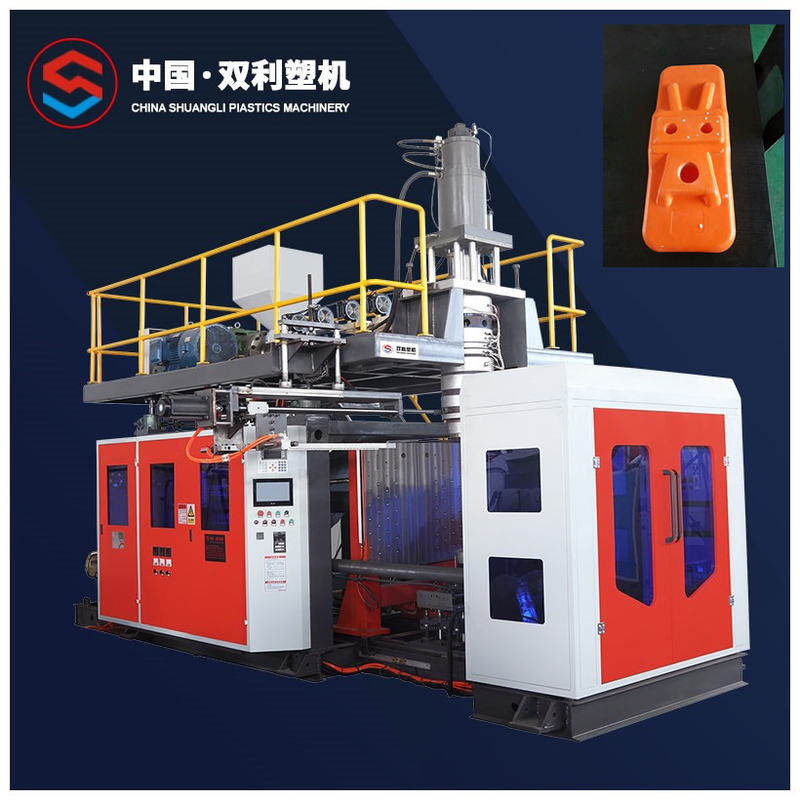

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Parts
SLBC series: (German model)

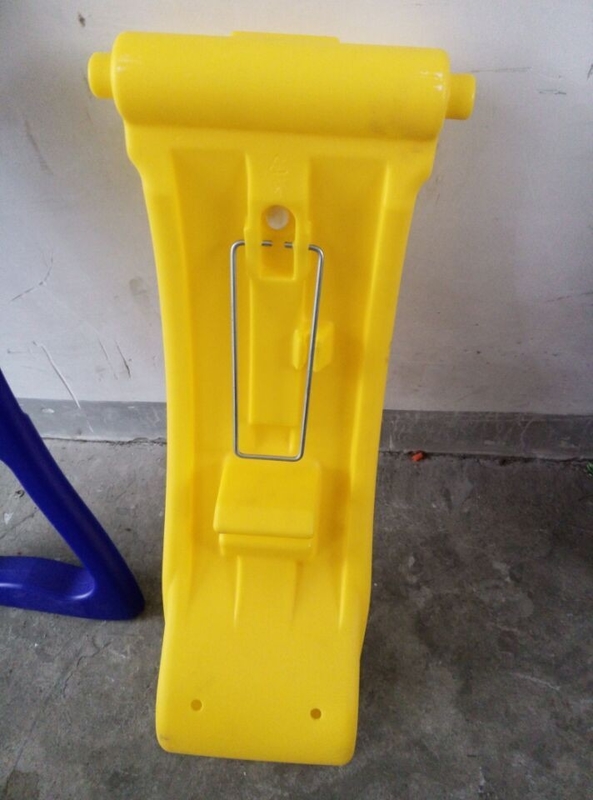

machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material TPU, nylon and other materials . All parts of the machine is
made by advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of
famous brand, it has stable equipment performance and simple handling.

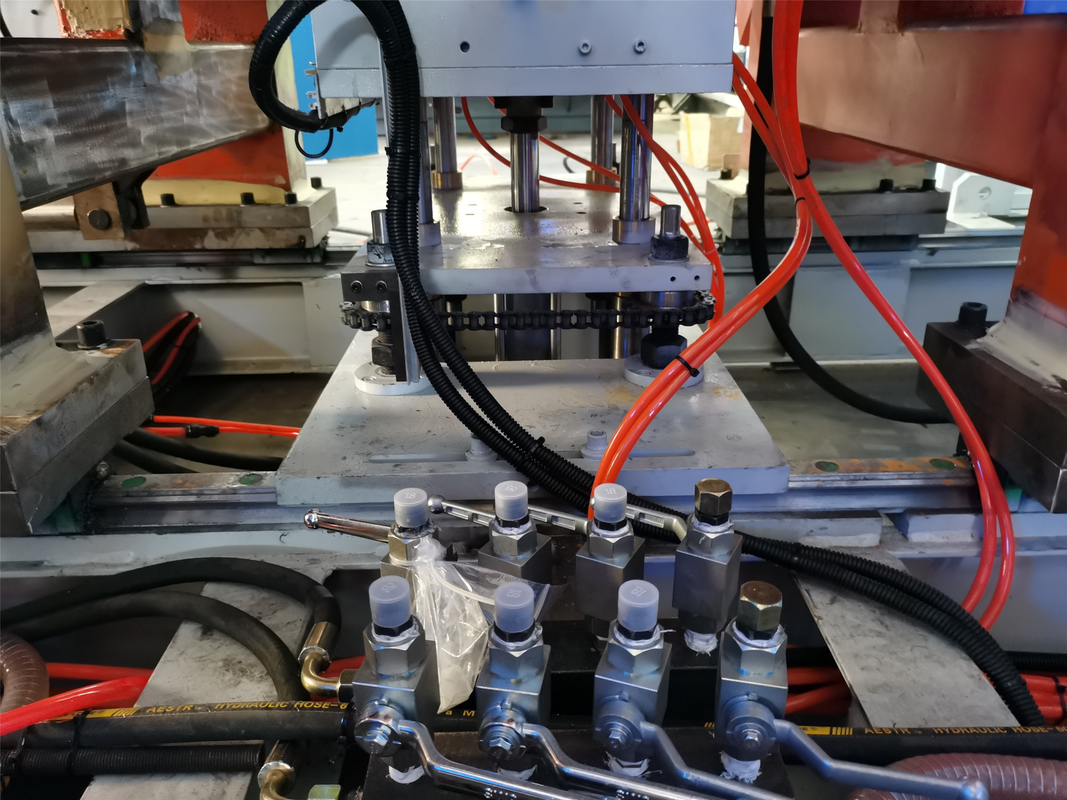

Since the mold shifting and opening and closing mechanism are frequently operated and the moving speed is fast, an automatic lubricating
device is disposed, but the lubricating oil in the automatic lubricating device is also regularly inspected and filled. This will increase and extend
the life of the machine, resulting in better economics. The movement mode of the mold shifting and opening and closing mold mechanism is fast,
and it is necessary to pay great attention to safety during the installation of the mold, the debugging, and the adjustment process, especially
when the two templates and the two sides of the mold shifting seat are in operation, please keep away from the safety.
SPECIFICATION | SLBC-80 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 30 |
OUPUT(DRY CYCLE) | PC/HR | 600 |
MACHINE DIMENSION (LxWxH ) | MM | 5300x3000x3500 |
TOTAL WEIGHT | TON | 11T |
CLAMPING UNIT | ||
CLAMPING FORCE | KN | 200 |
PLATEN OPENING STROKE | MM | 350-850 |
PLATEN SIZE(WxH) | MM | 750x780 |
MAX MOULD SIZE(WxH) | MM | 600x1000 |
MOLD THICKNESS | MM | 360-500 |
EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 80 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 120 |
BARREL HEATING POWER | KW | 16 |
NUMBER OF HEATING ZONE | ZONE | 4 |
EXTRUDER MOTOR RATED POWER | KW | 30 |

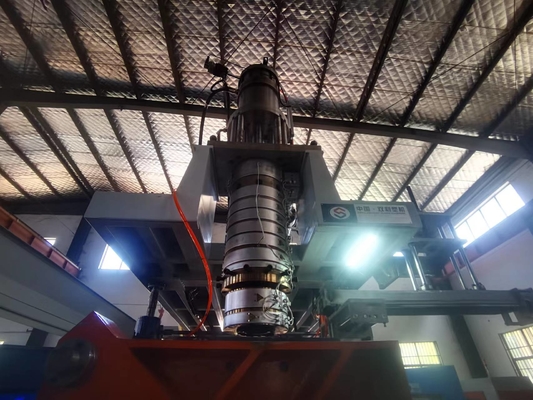

DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 4 |
POWER OF DIE HEATING | KW | 15 |
MAX DIE-PIN DIAMETER | MM | 250 |
POWER | ||
MAX DRIVE POWER | KW | 42 |
TOTAL POWER | KW | 82 |
FAN POWER OF SCREW | KW | 3.2 |
AIR PRESSURE | MPA | 0.8-1.2 |
AIR CONSUMPTION | M3/MIN | 0.8 |
AVERAGE ENERGY CONSUMPTION | KW | 32 |
ACCUMULATOR CAPACITY | L | 6 |
