EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform

EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform

  • High Light

    SHUANGLI 450 bph preform bottle blowing machines

    ,

    SHUANGLI 450 bph preform bottle blowing machine

    ,

    450 bph preform bottle blowing machine SHUANGLI

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    60L
  • Product

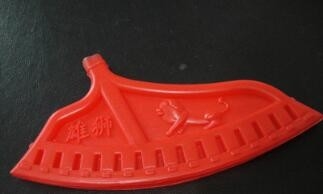

    Plastic Toy Part
  • Clamping Type
    C Type
  • Station
    Single
  • Die Head
    Single Head
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC-90
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

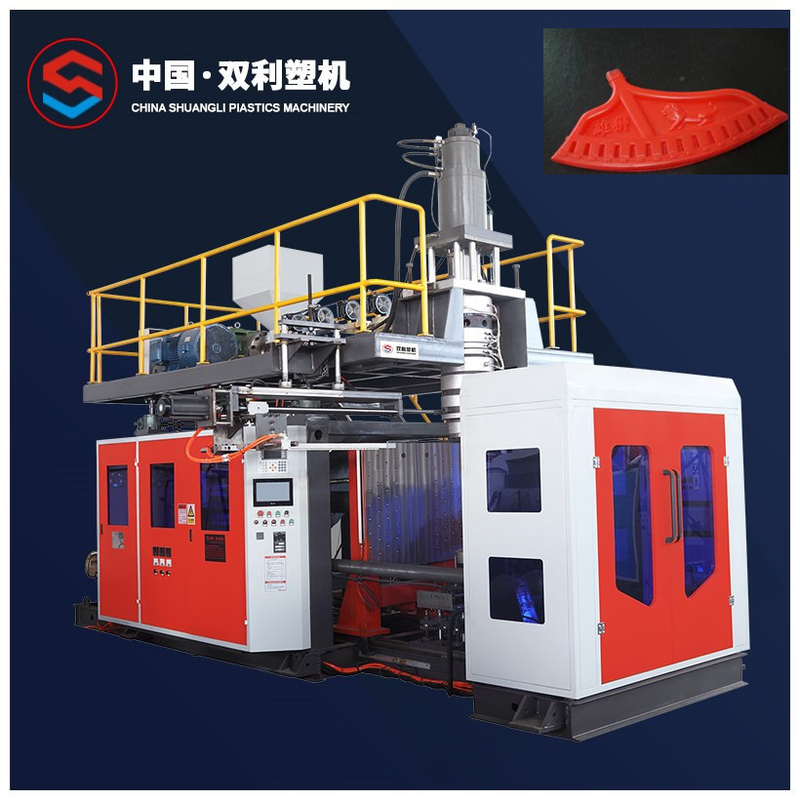

EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Toy Part



SLBC series: (German model)  the whole system is equipped with safety protection grating, to ensure the safety of the production process .



It consists of a blow needle cylinder, a needle holder, a pad, a fixing plate, an adjustment plate, an air blowing device . The air blowing device can



be divided into single head, double head and four heads, and the air blowing device is composed of a connecting plate, a blowing needle hanging



plate, a fixing plate, a guiding column, a bearing sleeve, a pressing plate, a stripping sleeve, a needle bar, a needle bar core, Blowing head and



other components.



SPECIFICATION SLBC-90
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 60
OUPUT(DRY CYCLE) PC/HR 450
MACHINE DIMENSION (LxWxH ) MM 6300x3400x4200
TOTAL WEIGHT TON 14T

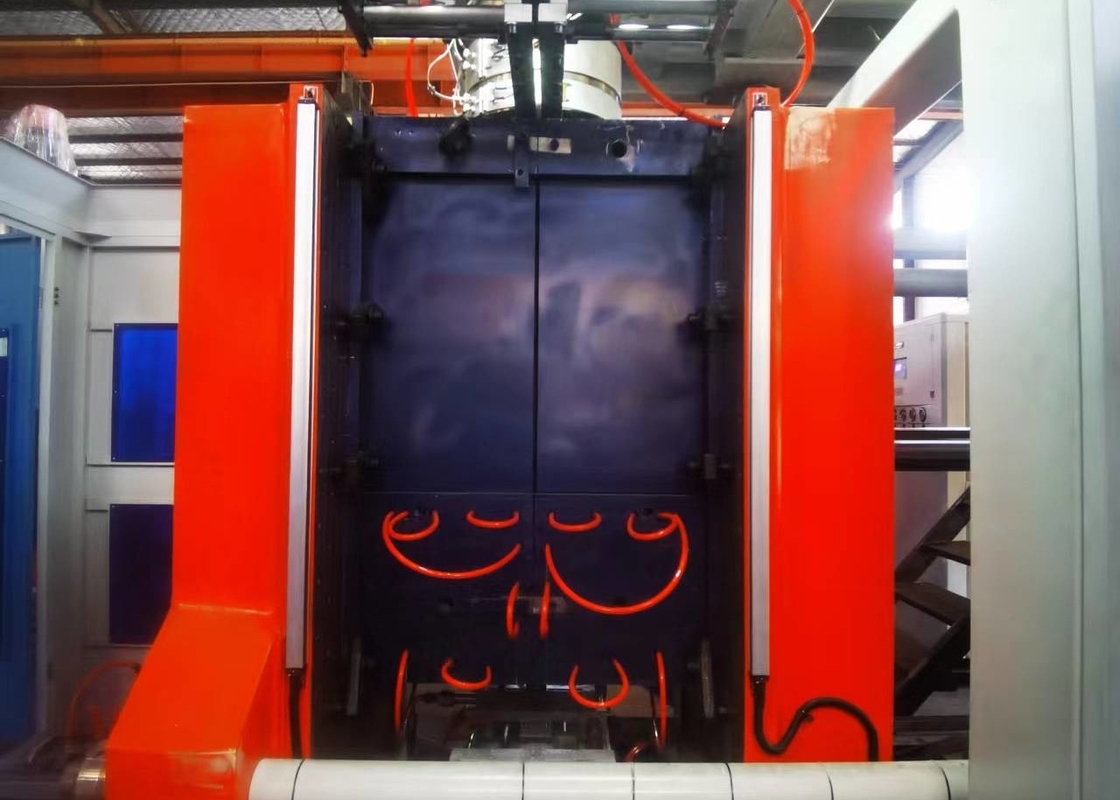

CLAMPING UNIT
CLAMPING FORCE KN 260
PLATEN OPENING STROKE MM 400-1200
PLATEN SIZE(WxH) MM 900x1000
MAX MOULD SIZE(WxH) MM 750x1200
MOLD THICKNESS MM 410-700

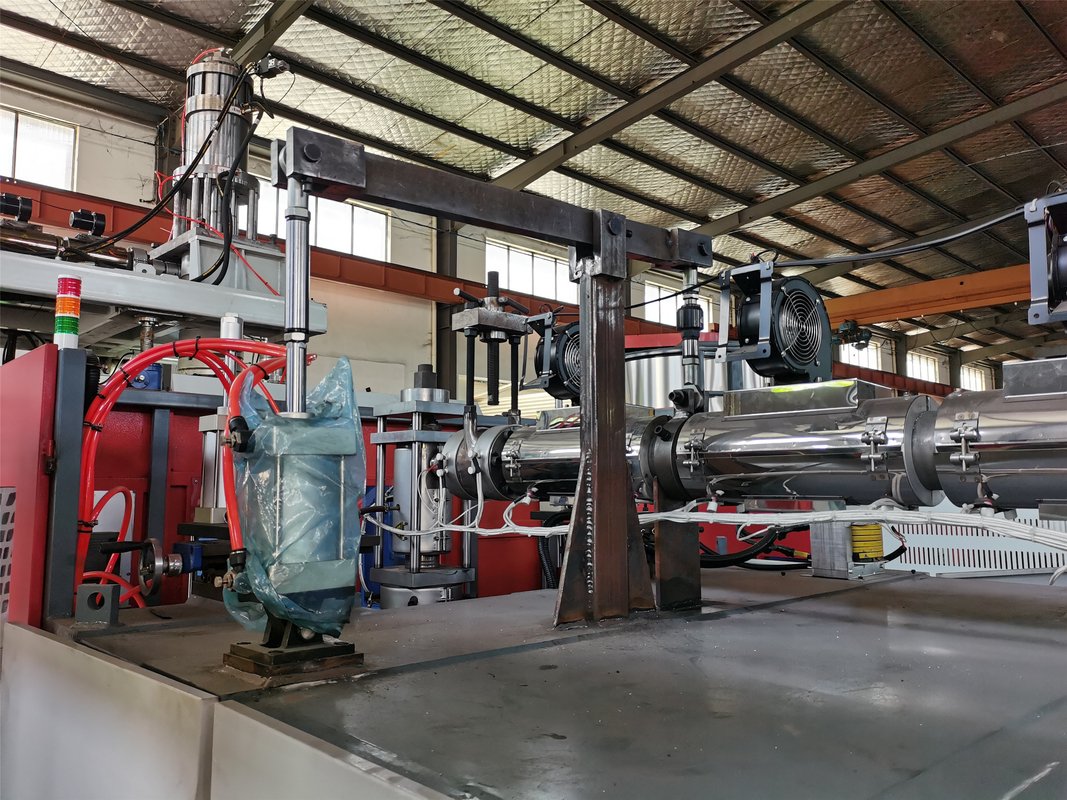

EXTRUDER UNIT
SCREW DIAMETER MM 90
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 140
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 5
EXTRUDER MOTOR RATED POWER KW 45
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 4
POWER OF DIE HEATING KW 18
MAX DIE-PIN DIAMETER MM 400
POWER
MAX DRIVE POWER KW 57
TOTAL POWER KW 105
FAN POWER OF SCREW KW 4
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 38
ACCUMULATOR CAPACITY L 8
