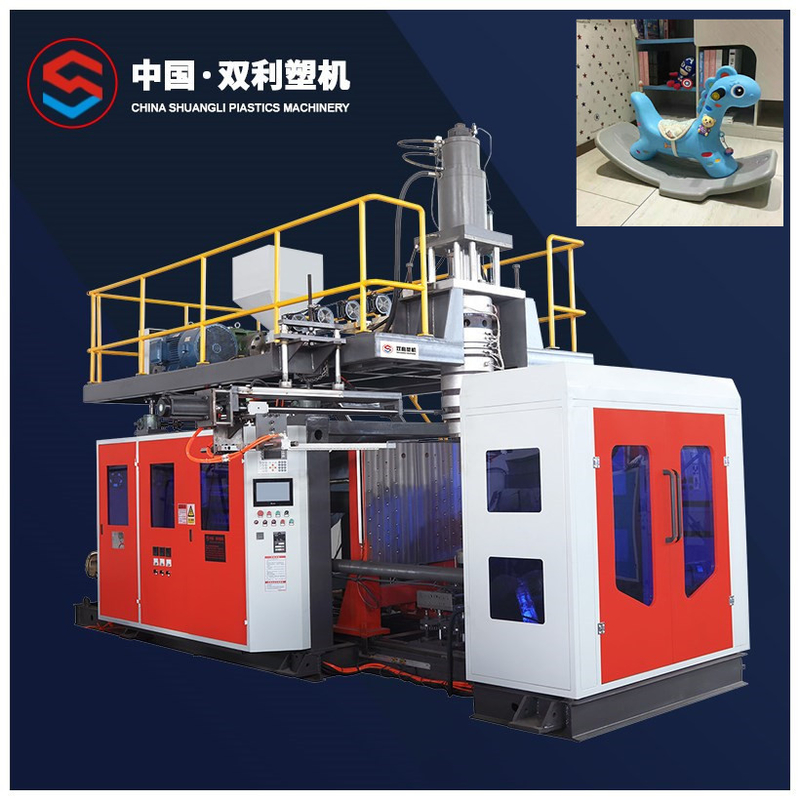

120l Accumulator Blow Moulding Machine Tie Bar Horse Toy
-
High Light
120l Accumulator Blow Moulding Machine
,tie bar Accumulator Blow Moulding Machine
,horse toy blow moulding machine
-
MaterialPE,PP,EVA,ABS
-
Max Capacity120L
-

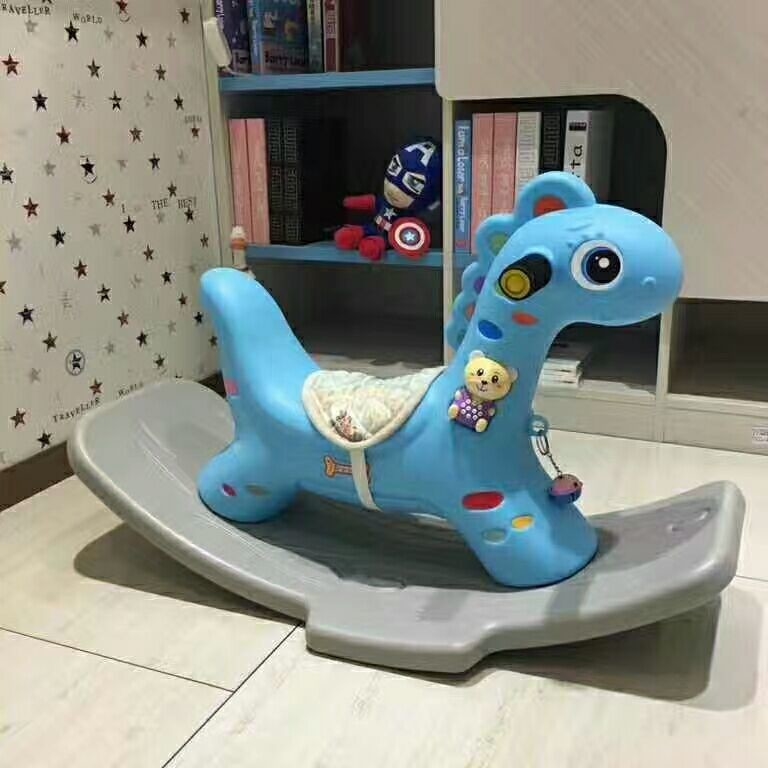

ProductPlastic Horse Toys
-
Clamping TypeC Type-Tie Bar
-
StationSingle
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-100
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
120l Accumulator Blow Moulding Machine Tie Bar Horse Toy
1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Horse Toys
SLBC series: (German model) high accuracy without the fusion line storage type die head, easy to change color, with servo walll thickness
control system, improve product quality, reduce production costs.
The hydraulic system consists of three parts: hydraulic pump station, hydraulic valve assembly and pipe line.
The hydraulic medium is N46# (when the ambient temperature is high) or N32# (when the ambient temperature is low) HM anti-wear hydraulic oil.
The whole hydraulic system adopts proportional pressure control, and each action pressure can be arbitrarily adjusted according to the action of
the machine, thus The action is stable and reliable.
.
| SPECIFICATION | SLBC-100 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 120 |
| OUPUT(DRY CYCLE) | PC/HR | 360 |
| MACHINE DIMENSION (LxWxH ) | MM | 6800x3600x5200 |
| TOTAL WEIGHT | TON | 16T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 400 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1100x1100 |
| MAX MOULD SIZE(WxH) | MM | 900x1400 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 100 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 180 |
| BARREL HEATING POWER | KW | 30 |
| NUMBER OF HEATING ZONE | ZONE | 5 |
| EXTRUDER MOTOR RATED POWER | KW | 50 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 25 |
| MAX DIE-PIN DIAMETER | MM | 450 |
| POWER | ||
| MAX DRIVE POWER | KW | 70 |
| TOTAL POWER | KW | 110 |
| FAN POWER OF SCREW | KW | 4 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 42 |
| ACCUMULATOR CAPACITY | L | 12 |
Our products are sold all over the world, you can rest assured.
