120L Toy Automatic Blow Molding Machine  PE Bottle

120L Toy Automatic Blow Molding Machine PE Bottle

  • High Light

    12l automatic blow molding machine

    ,

    toy automatic blow molding machine

    ,

    120l blowing PET bottle machine

  • Material
    PE,PP,EVA,ABS
  • Max Capacity
    120L
  • Product
    Plastic Kid Toys
  • Clamping Type
    C Type-Tie Bar
  • Station
    Single
  • Die Head
    1 Head
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC-100
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

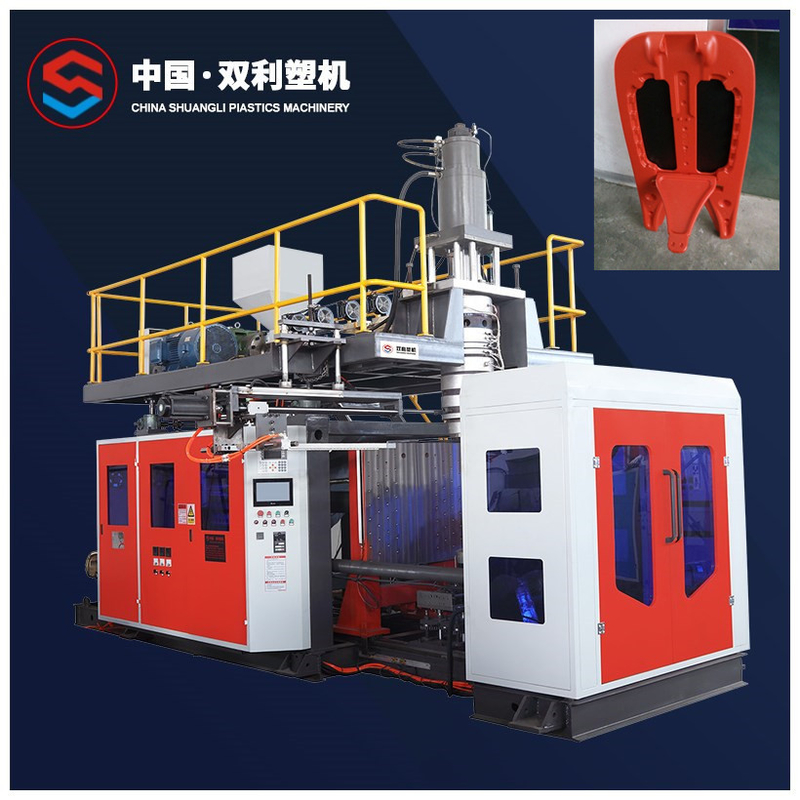

120L Toy Automatic Blow Molding Machine PE Bottle

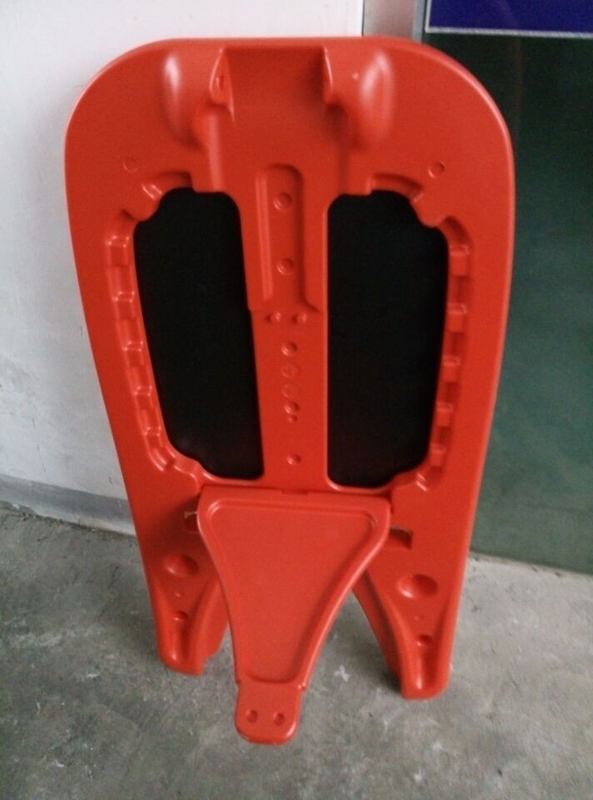

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Kid Toys



SLBC series: (German model)



optional with multi function under blowing mechanism, automatic machine to take the product of a variety of auxiliary

device, realize the production process is highly automated.



the whole system is equipped with safety protection grating, to ensure the safety of the production process without accident.



.Always check quality of the hydraulic oil during work and find that the oil contamination must be replaced immediately. The pollution of hydraulic oil will lead to early wear of oil pump, hydraulic valve and other components and blockage of oil filter, which not only increases maintenance and management, but also shortens the life of components; the filter of oil pump suction station needs to be checked regularly (every six months) Clean condition, slightly blocked, clean immediately! At the same time, always check the oil pipe and pipe joints, find that the oil pipe is damaged or leaked, and replace it in time.





SPECIFICATION SLBC-100
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 120
OUPUT(DRY CYCLE) PC/HR 360
MACHINE DIMENSION (LxWxH ) MM 6800x3600x5200
TOTAL WEIGHT TON 16T
CLAMPING UNIT
CLAMPING FORCE KN 400
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1100x1100
MAX MOULD SIZE(WxH) MM 900x1400
MOLD THICKNESS MM 610-880
EXTRUDER UNIT
SCREW DIAMETER MM 100
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 180
BARREL HEATING POWER KW 30
NUMBER OF HEATING ZONE ZONE 5
EXTRUDER MOTOR RATED POWER KW 50
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 25
MAX DIE-PIN DIAMETER MM 450
POWER
MAX DRIVE POWER KW 70
TOTAL POWER KW 110
FAN POWER OF SCREW KW 4
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 42
ACCUMULATOR CAPACITY L 12
