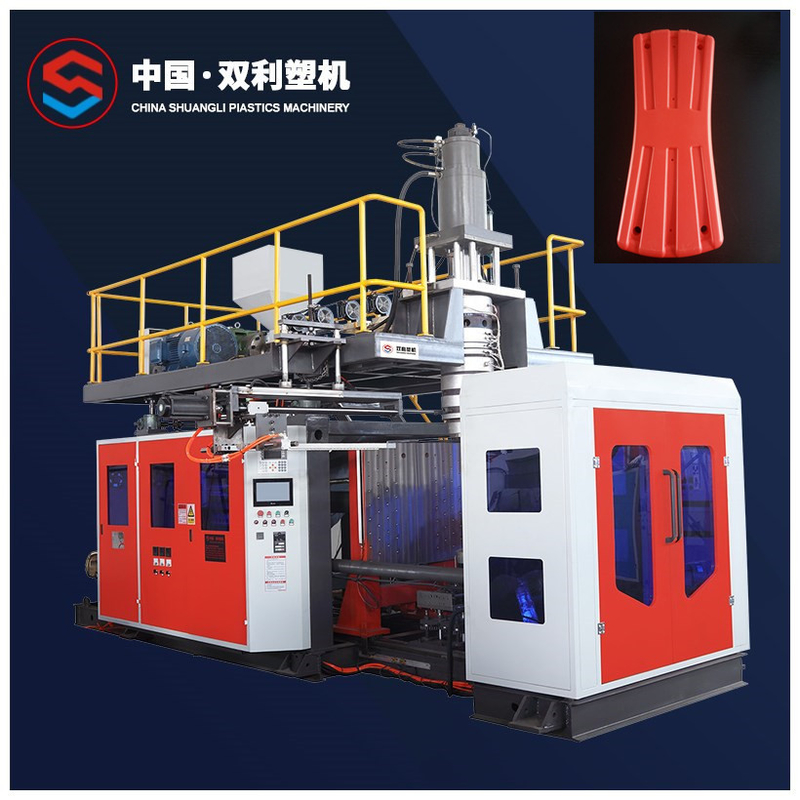

1 Head 120l Automatic Extrusion Blow Molding Machine ABS Plastic Blowing Machine
-
High Light
1 head automatic extrusion blow molding machine
,120l automatic extrusion blow molding machine
,ABS plastic blowing machine
-
MaterialPE,PP,EVA,ABS
-
Max Capacity120L
-

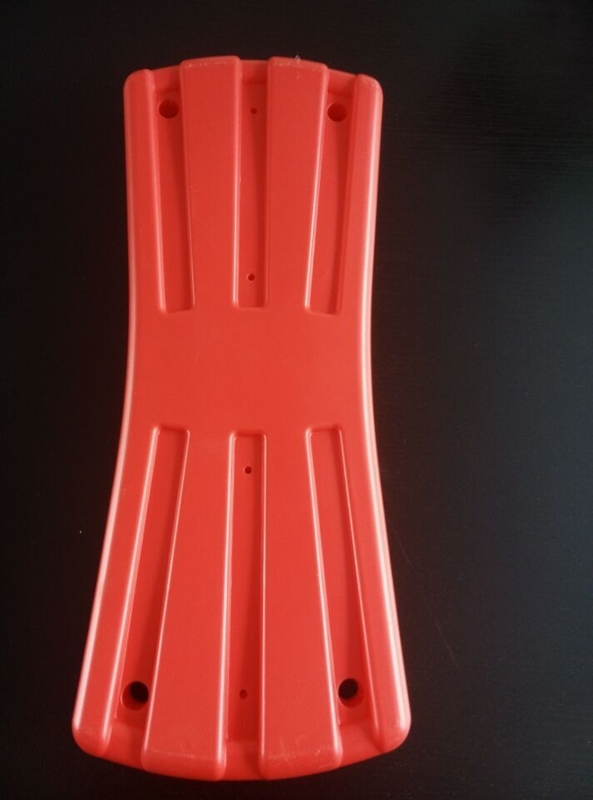

ProductPlastic Children Toys
-
Clamping TypeTie Bar C Type
-
StationSingle
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC-100
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
1 Head 120l Automatic Extrusion Blow Molding Machine ABS Plastic Blowing Machine
1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Children Toys
SLBC series: (German model)

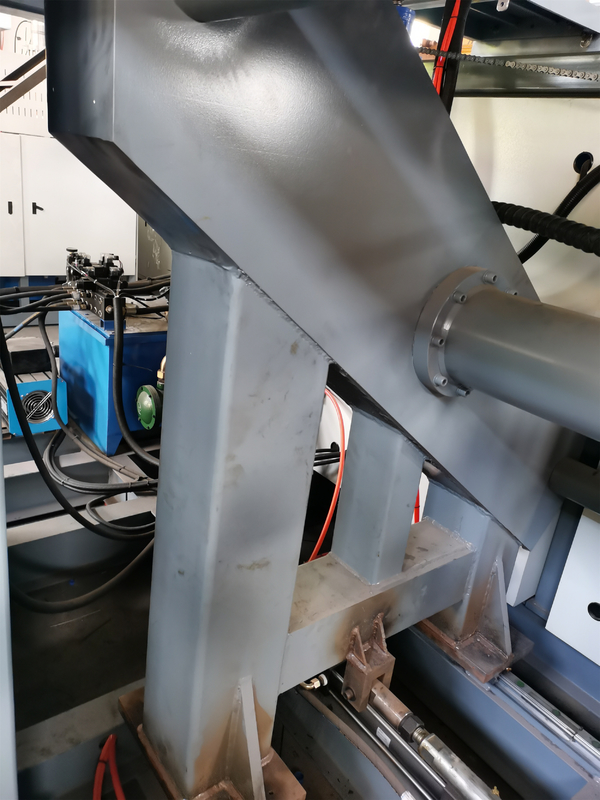

linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.

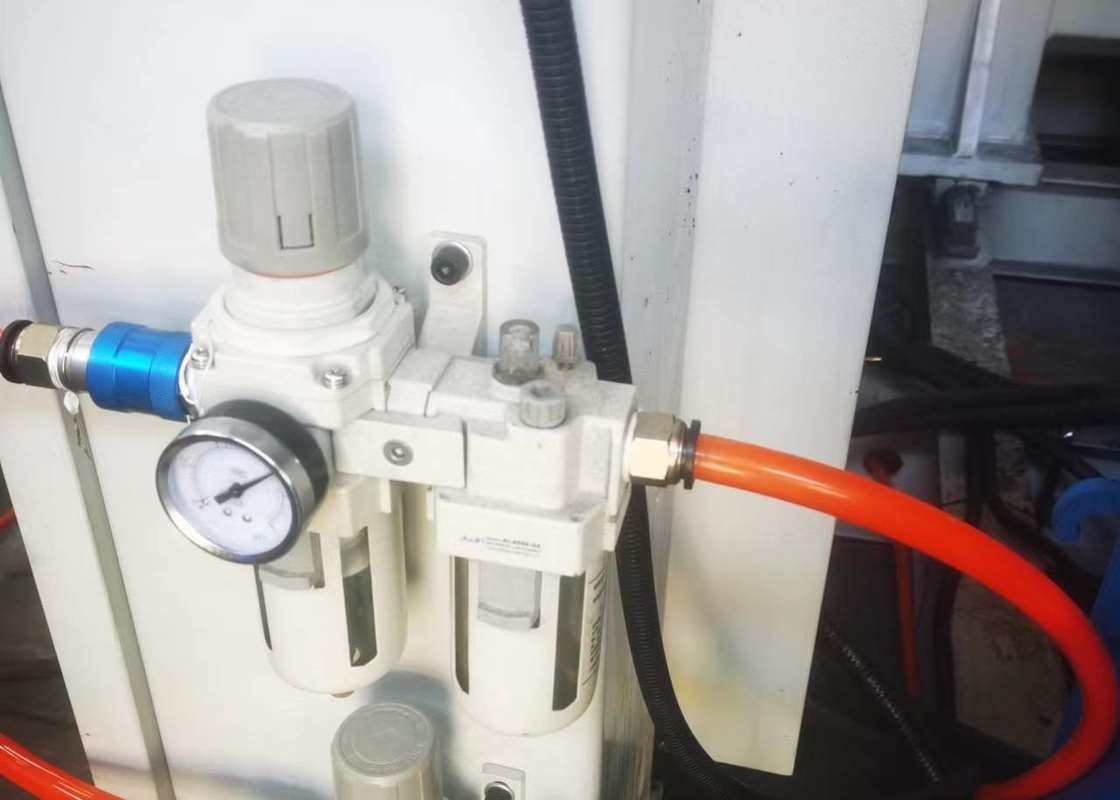

The pneumatic system consists of a water gas separator, an oil mister, a pressure regulating valve, a directional control valve, and a cylinder.
In addition to providing compressed air for inflation molding, the pneumatic system also has the function of driving the cylinder. The filter pressure reducing valve of the pneumatic system regulates the system pressure, and the system pressure is generally adjusted to 0.4-0.6Mpa. The pressure is adjusted by first pulling the pressure adjustment handwheel up to the adjustment position, turning the handwheel, adjusting to the pressure gauge to display the required pressure, and then pressing the adjustment handwheel downward.
| SPECIFICATION | SLBC-100 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 120 |
| OUPUT(DRY CYCLE) | PC/HR | 360 |
| MACHINE DIMENSION (LxWxH ) | MM | 6800x3600x5200 |
| TOTAL WEIGHT | TON | 16T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 400 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1100x1100 |
| MAX MOULD SIZE(WxH) | MM | 900x1400 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 100 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 180 |
| BARREL HEATING POWER | KW | 30 |
| NUMBER OF HEATING ZONE | ZONE | 5 |
| EXTRUDER MOTOR RATED POWER | KW | 50 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 25 |
| MAX DIE-PIN DIAMETER | MM | 450 |
| POWER | ||
| MAX DRIVE POWER | KW | 70 |
| TOTAL POWER | KW | 110 |
| FAN POWER OF SCREW | KW | 4 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 42 |
| ACCUMULATOR CAPACITY | L | 12 |
